Hardware Installation
The Serial ATA connectors are used to connect Serial ATA devices. Connect one
end of the Serial ATA cable to a SATA connector and the other end to your Serial
ATA device.

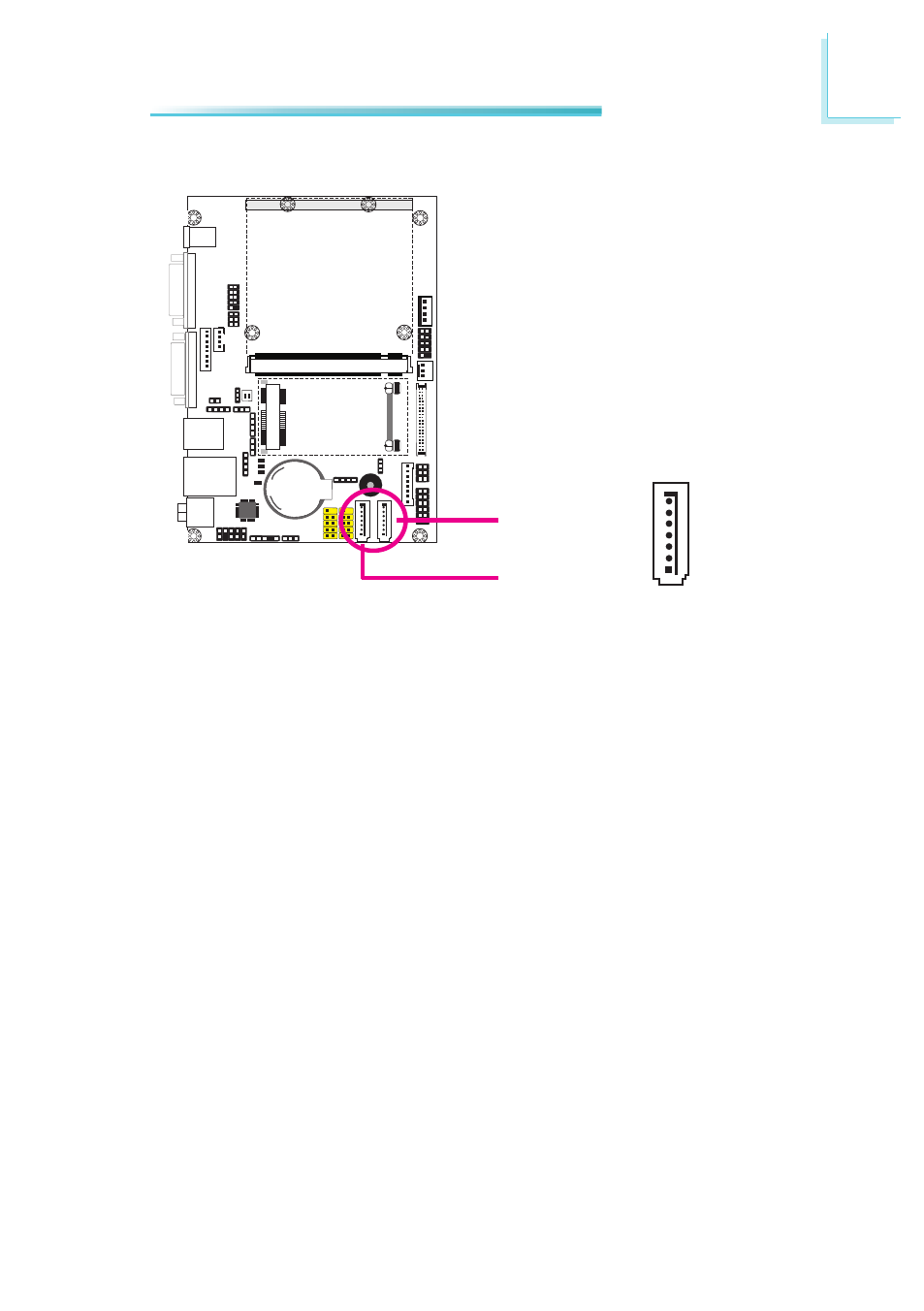

SATA (Serial ATA) Connectors
SATA 0
SATA 1
7
1
TXN
GND
RXP
RXN
GND
TXP
GND
