MODEL 200 BENCH MODEL DRILL
STARTUP PROCEDURES
1. Refer to Back Gauge Scale Assembly (Illustration No. 1) and assemble back gauge assembly by
placing the black fiber washer (C) over the threaded stud (B). Place the back gauge clamp (D) on the
stud with the knob end toward the center of the assembly. Tighten the elastic stop nut (B) on the stud
until the nut is snug, allowing the clamp to move with only slight resistance.

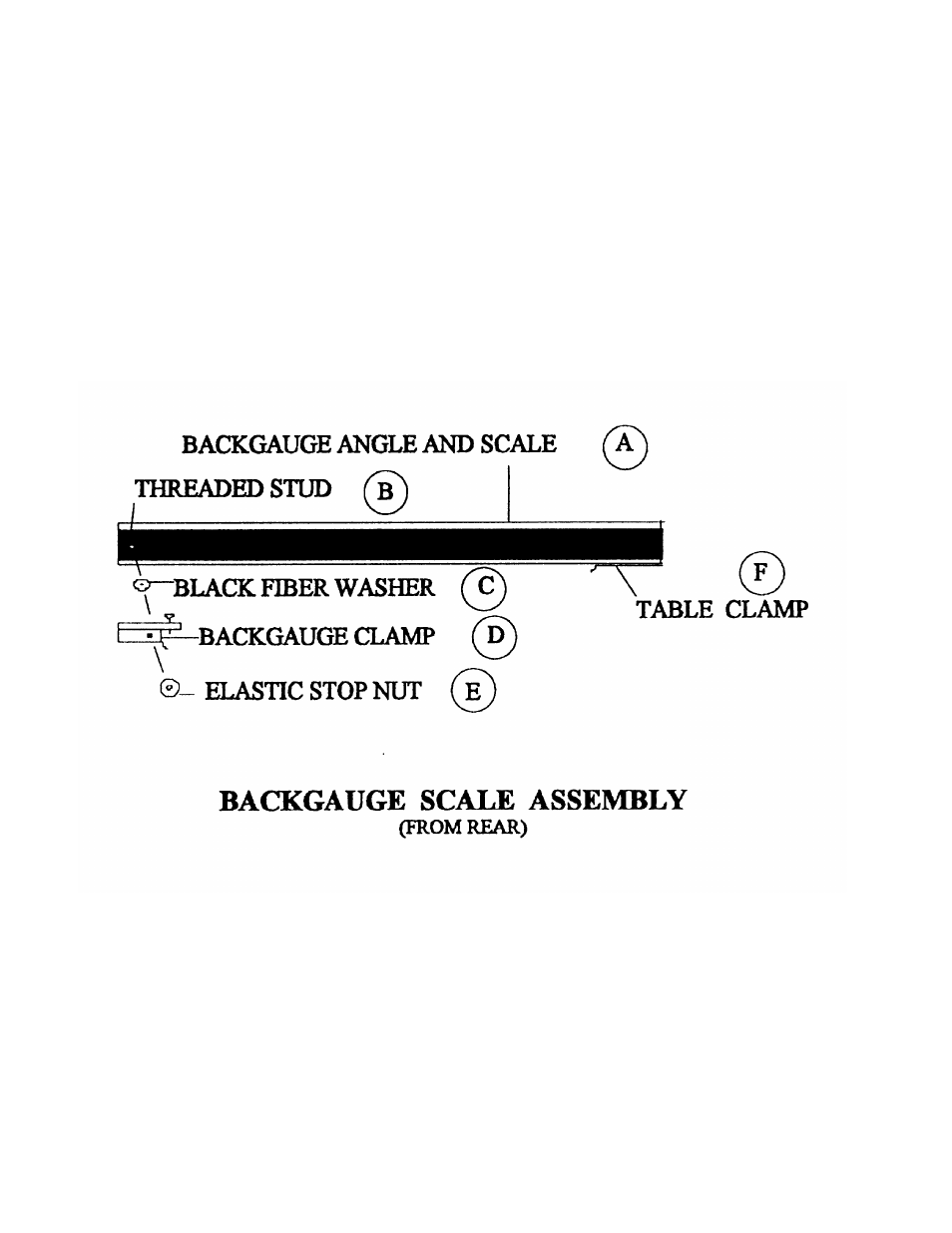

ILLUSTRATION #1
