Air Feed Collator Model 100, Stacker Model 101, Model 101 HCS Operator Manual

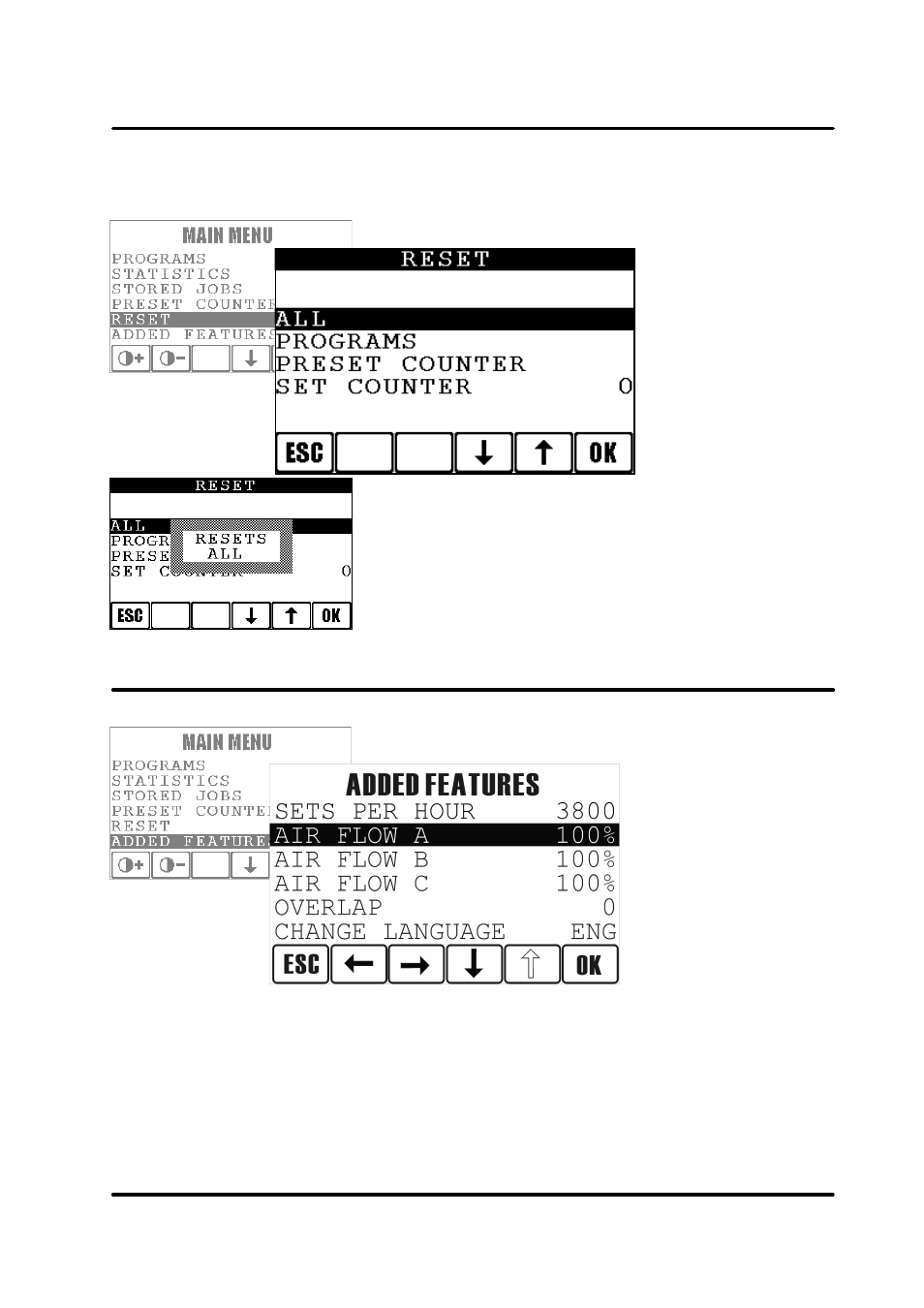

4.6 Added features
Enter the ADDED FEATURES menu.
From this menu you can
adjust the speed, the air
flow, the overlap, change
the user interface language
and select double sheet
detection ON or OFF.
Select the item you want to
adjust with the up/down
arrow buttons. Change
setting with the left/right
arrow buttons. Collating
speed can be adjusted
from 1000 sph (sets per hour) to 3800 sph. Check the speci-
fication for the connected machines before changing the
speed. Air flow can be adjusted from 30% to 100%. If “AIR
FLOW A” is selected, also tower B and C will be adjusted.
Select “AIR FLOW B” and/ or “AIR FLOW C” to set the B and
C collators air flow individually.
NOTE: Also see section 3.6 and 5.1 for recommendations and
trouble shooting .
4.5 Reset
Enter the “RESET” menu.
From this menu you
can choose to reset
”PROGRAMS”, ”PRE-
SET COUNTER”, ”SET
COUNTER” or all three.
Press the ”ESC” button
to return to the MAIN
MENU or select item to
reset and press the
”OK” button.
To reset according to
selection, confirm by
pressing the ”OK” button.
Note 1: Do not reset if you have started programming accord-
ing to section 4.1 or loaded a stored job according to
section 4.3.
Note 2: Resetting “PROGRAMS” will erase the currently loaded
job or programmed settings.
Note 3: Resetting “PROGRAMS or resetting “ALL” does not
affect stored jobs.
4-6
