SPECIFICATIONS
The term “Refreshment Stand” means a machine
that stores ice in an insulated, sanitary container;
upon demand it dispenses that ice into a cup or
glass; it cools beverages using ice falling from the
hopper onto a cold plate at the base of the hopper;
and it dispenses beverages via post-mix or pre mix
valves. Some of the valves are not carbonated;
they may be changed to carbonated if desired.
Power to operate the valves may be shut off by a
key switch.*
* Premix is not electrically powered. The RS requires additional equipment to be
functional:
An ice machine or source of sanitary ice; a
carbonator for post mix (and potable water); a
syrup delivery system, either pressurized syrup
cans or bag-in-a-box; and CO
2
. The dispenser
must also be connected to a drain.
NOTE: This Refreshment Stand is designed to
dispense cubed ice only. Flaked or Nugget ice
will not work.
Base
Model Width Total Ice Storage
Capacity Basic Electrical Amperage Power Cord
RS160 22" 160 lb. 115/60/1 2 amps 4’ with plug
RS220 30" 220 lb. 115/60/1 2 amps 4’ with plug
Rotor motor is 1/10 HP.
Options: Fast flow carbonator (100 G.P.H.). May be obtained as push button actuation for ice and soda or
lever actuation for ice & soda. Both are factory installed. Various brand standard or fast flow post-mix
valves are available (factory installed). Also available in premix with Booth Capre valves only (factory
installed).
Cubed ice machines may be stacked onto the top of the dispenser with an adapter kit:
••
RS160: Scotsman cubers SLE300, SLE400 or SLE400R use kit # KADUN2.
••
RS220: Scotsman cubers CME250, CME256, CME500, CME506, CME650 OR CME656 use kit #
KADCM2.
Scotsman Drink Systems are designed and manufactured with the highest regard for safety and
performance. They meet or exceed the standards of U.L. and N.S.F.
Scotsman assumes no liability or responsibility of any kind for products manufactured by Scotsman that
have been altered in any way, including the use of any parts and/or other components not specifically
approved by Scotsman
Scotsman reserves the right to make design changes and/or improvements at any time. Specifications and
designs are subject to change without notice.

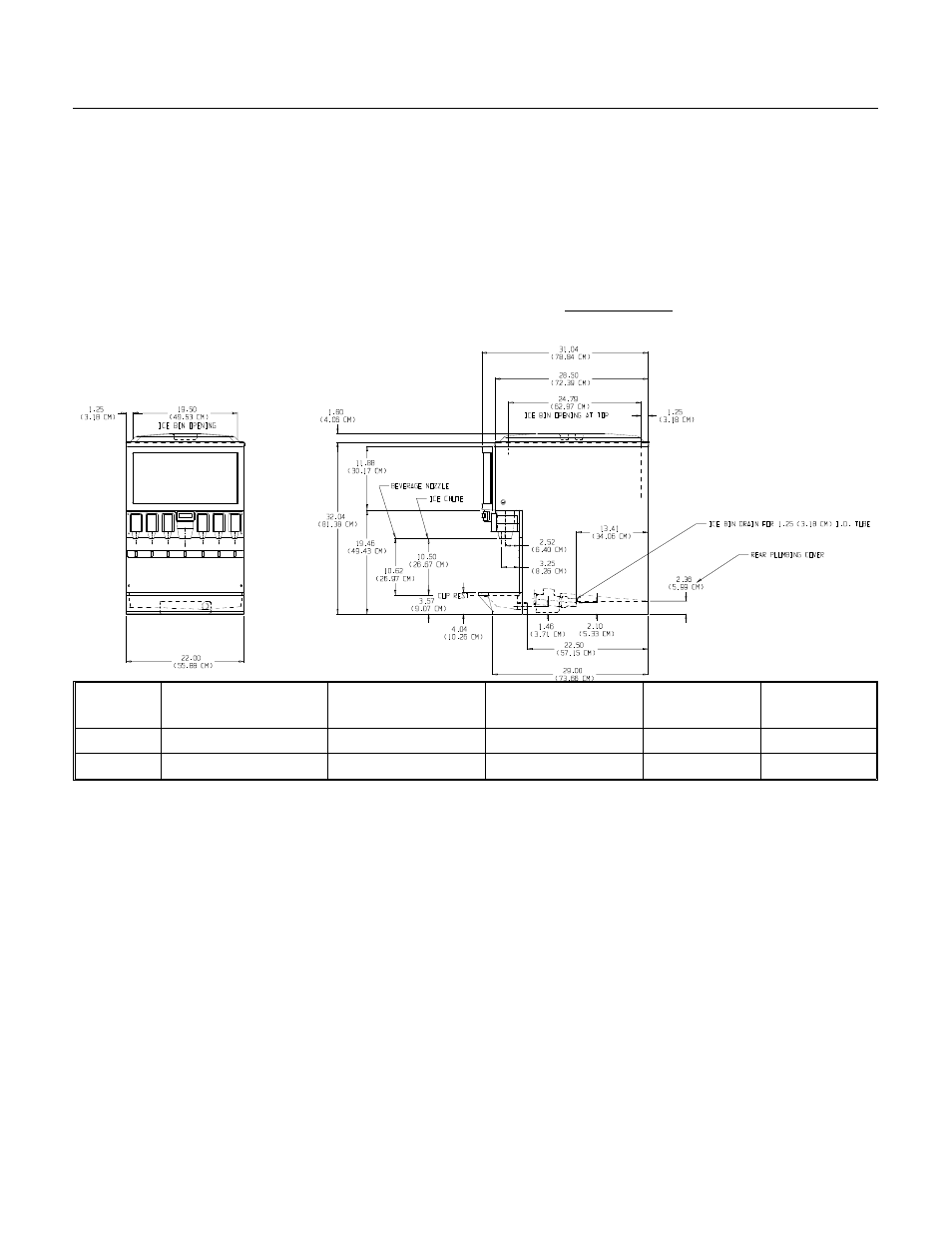

RS160 SHOWN,
RS220 SIMILAR
BUT 30" WIDE
