AIRLESSCO SS4550 - Manual (Page 23)

20 21

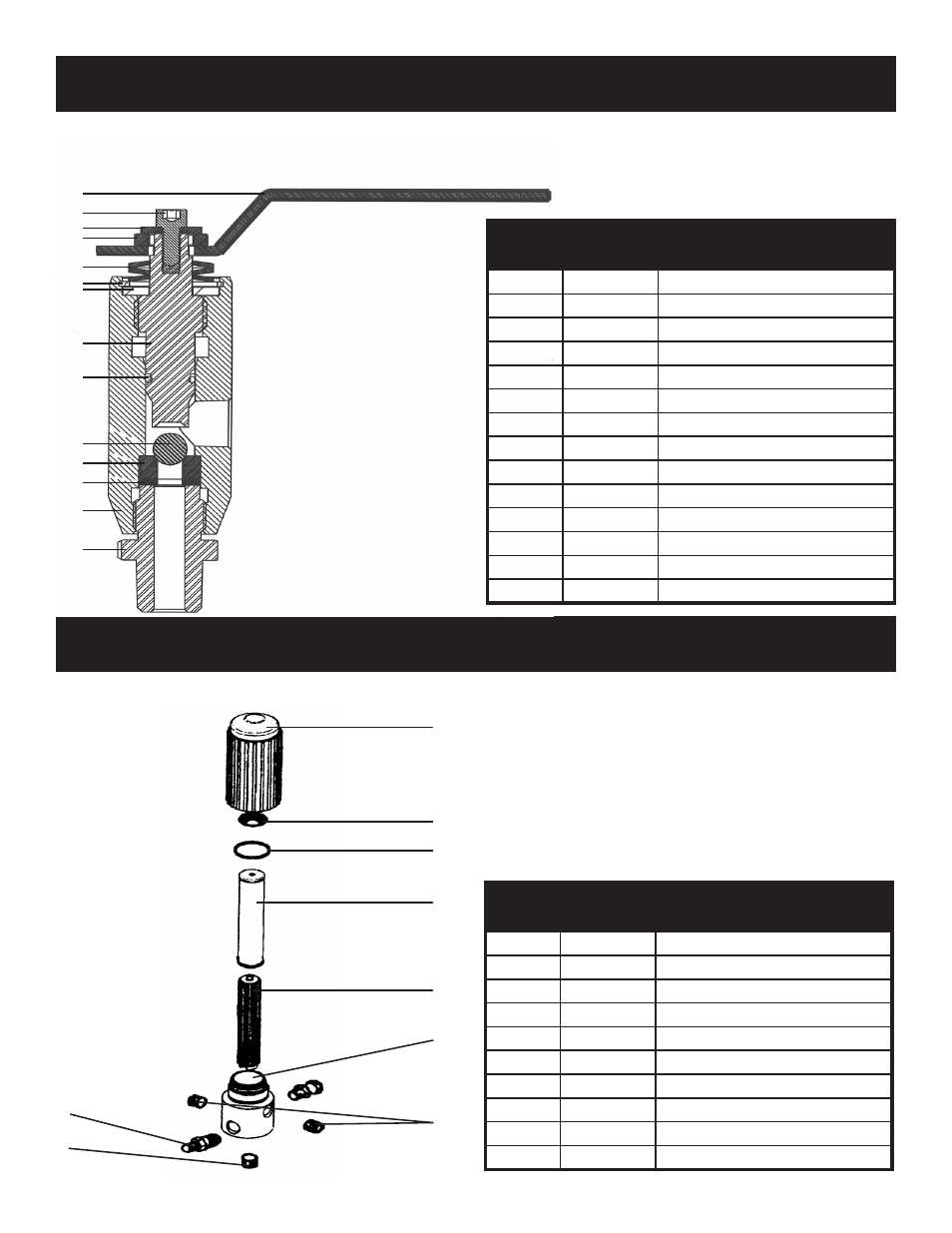

MANIFOLD FILTER (111-200-99)
1
2
3
4
5
6
7
8
9
10
PARTS LIST FIGURE 25
Item No. Part No. Description
1 111-202 Base
2 301-356 Spring
3 106-007 O-Ring
4 111-204 Filter 60 Mesh
5 111-203 Support
6 111-201 Base
7 100-159 Swivel
8 100-129 Plug 3/8” (2)
9 100-109 Nipple 3/8”M x 1/4”M
10 100-028 Plug 1/4”
1
7
6
5
4
3
2
10
9
8
11
14
13
12
PRIME VALVE (119-083)
PARTS LIST FIGURE 24
Item No. Part No. Description
1 115-303 Handle with Label
2 117-046 Screw
3 115-063 Washer
4 115-072 Spacer
5 115-064 Belleville Spring (3)
6 115-065 Retaining Ring
7 115-067 Washer
8 115-071 Valve Stem
9 115-068 O-Ring Black
10 115-069 Ball
11 115-029 Valve Seat
12 115-012 Washer
13 115-073 Valve Body
14 115-074 Inlet Fitting
FIG. 24
FIG. 25
