Removing and replacing the PAC 216 filter
23 July 2004
Profile XP Service Manual
85
Removing and replacing the PAC 216 filter
Removal of the air filter for cleaning or replacement does not require removal of the
PAC216 from the rack or the use of any tools. To remove the PAC216 air filter:
1. Grasp the front panel cover at both sides and snap loose from the chassis as shown
here.
2. Place face down and remove the filter from the mounting posts on the inside of the
panel cover.

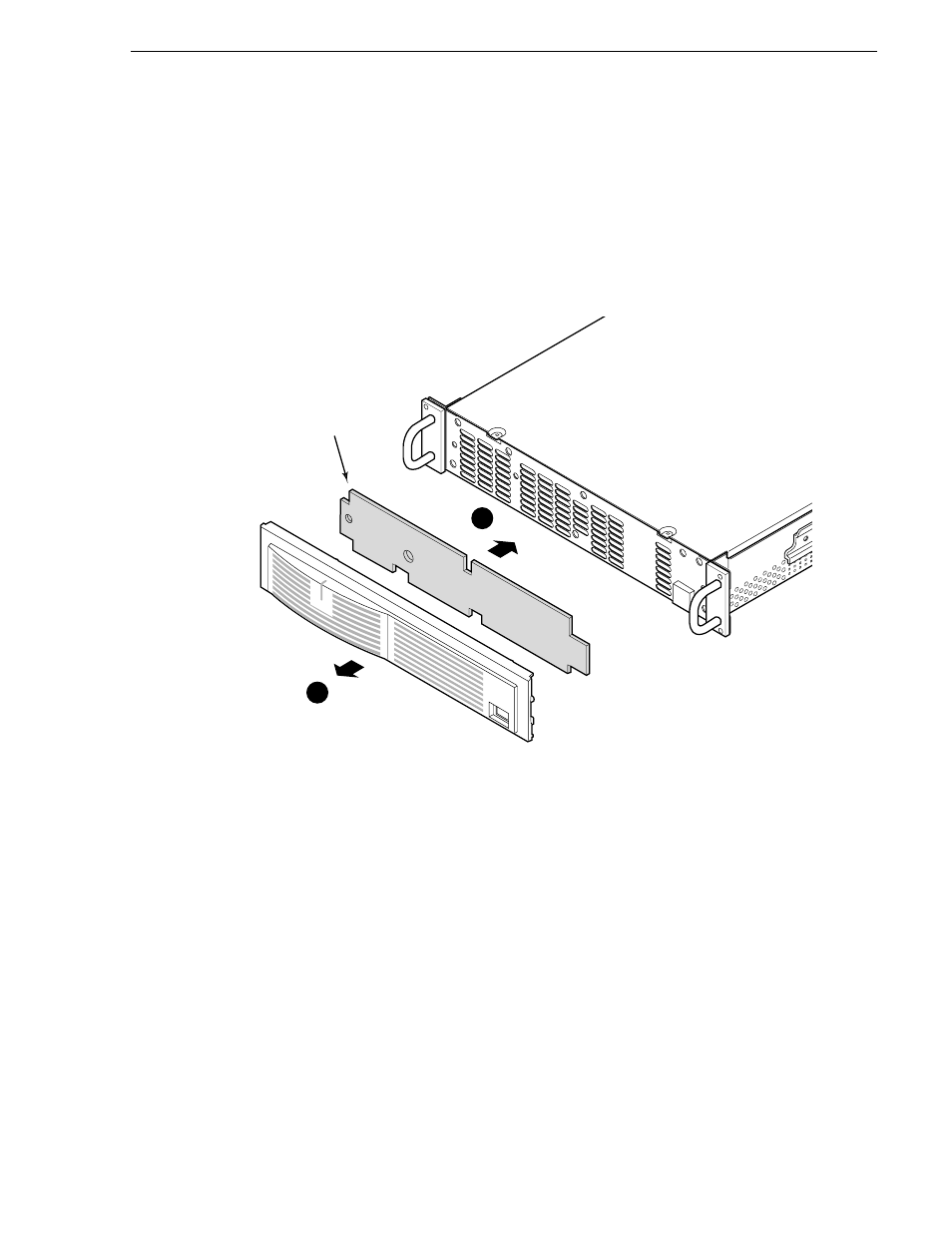

PAC216 Filter Removal
3. Attach the cleaned or replacement filter to the mounting posts on the inside.
4. Position the front panel cover at the chassis so that the cover mounting posts align
with the holes in the chassis; snap the front panel cover onto the chassis.
1
2
Fan Filter
9675-40
