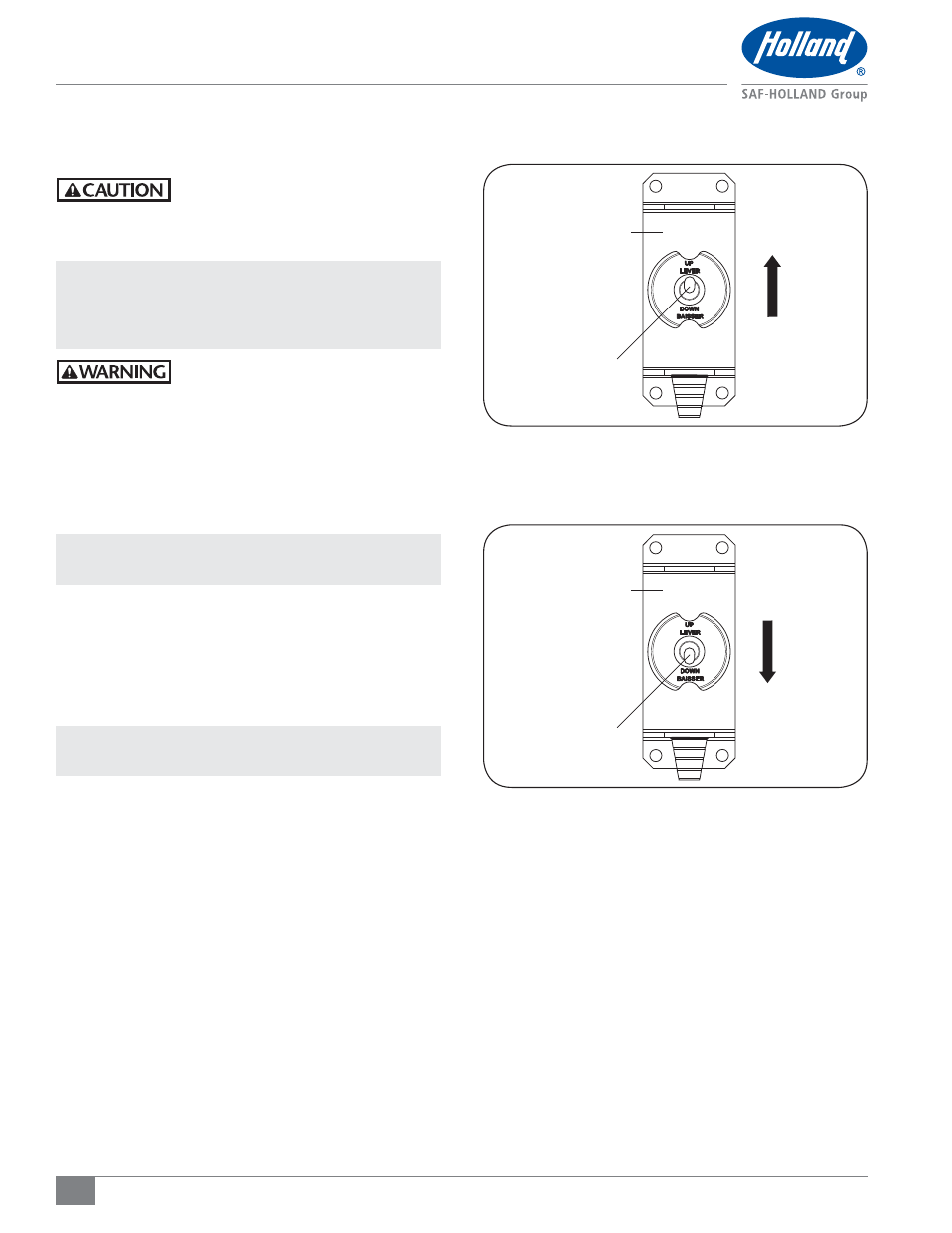

Figure 11
Figure 10
Liftgate Operation Instructions
6. Raising or Lowering the Platform
Failure to secure load prior to operating
platform could allow load to shift and
strike operator which, if not avoided,
could result in minor or moderate injury.
IMPORTANT: This unit is intended for loading and
unloading cargo only. If personnel are
required to ride the liftgate, familiarize
yourself with this liftgate manual.
Failure to ensure stable footing while
riding the liftgate could allow the
operator to fall which, if not avoided,
could result in death or serious injury.
6.1 Raising the Platform
1. Stand to the side of the vehicle and clear of the platform,
push the control station toggle switch in the UP direction
(Figure 10).
NOTE: The toggle switch must remain engaged for the
platform to continue moving upward.
2. To stop the platform from moving upward, release the
toggle switch.
6.2 Lowering the Platform
1. Stand to the side of the vehicle and clear of the platform,
push the control station toggle in the DOWN direction
(Figure 11).
NOTE: The toggle switch must remain engaged for the
platform to continue moving downward.
2. To stop the platform from moving downward, release the
toggle switch.
CONTROL STATION
TOGGLE SWITCH
UP
CONTROL STATION
TOGGLE SWITCH
DOWN
