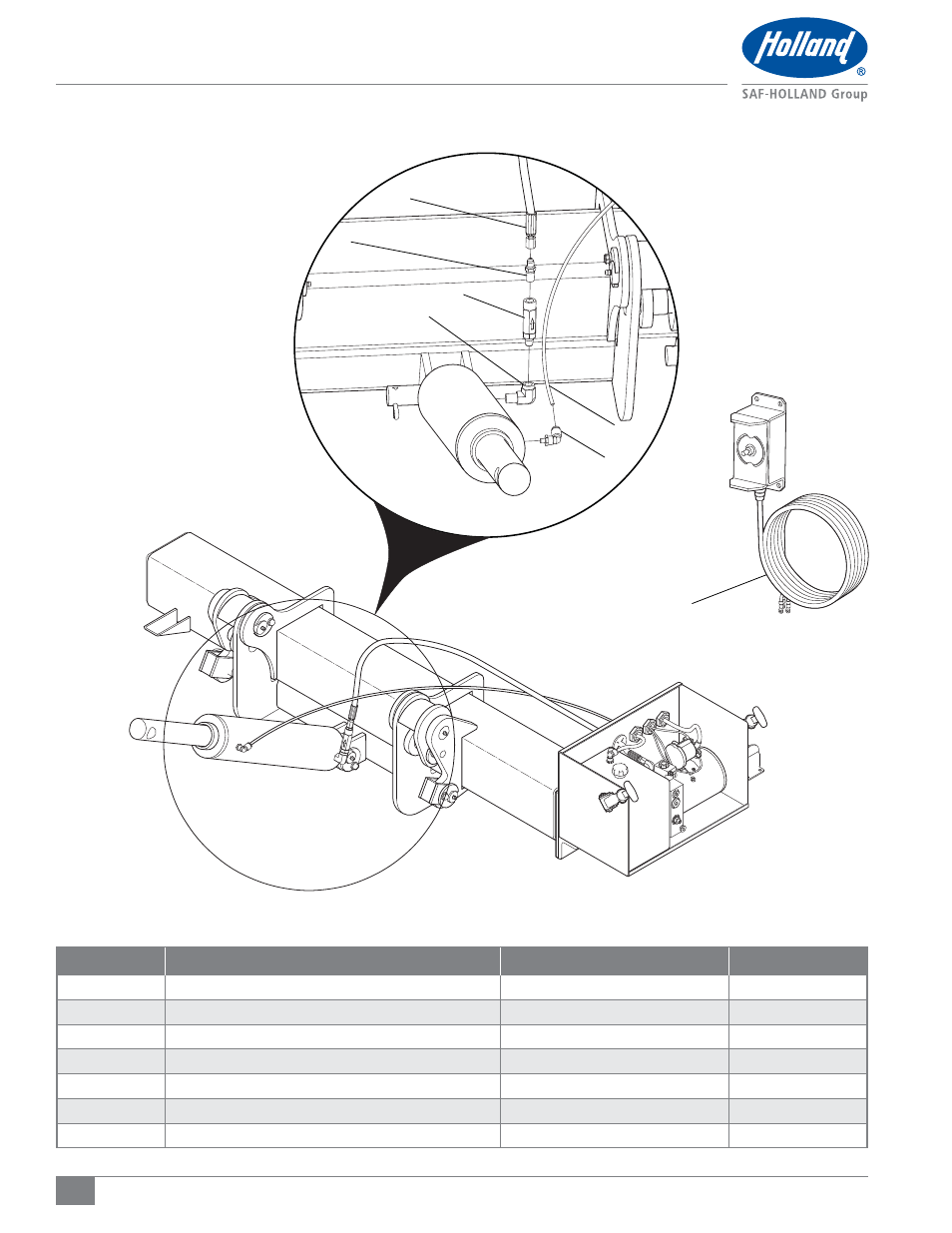

Hydraulics Part List
DETAIL DESCRIPTION PART NO. QTY
1 90° Fitting, Air Hose XB-59906-30 1
2 Air Hose, Gravity Down XB-59906-54 1
3 Fitting, 90° Elbow, -6 Orb / 1/4" Fnpt XB-57030 1
4 Flow Control Valve, 2.0 Gpm XB-50032 1
5 Adapter 1/4" Male Pipe/-4 Male Jic XB-51529 1
6 Hose Asssembly, 60" Lg XA-51610-60 1
7 Control Station XA-58359-01 1
1
2
3
4
5
6
7
16. Hydraulic Components
Gravity Down Option
