XL-TG10156UD-en-US Rev A · 2013-04-18 · Amendments and errors reserved. © SAF-HOLLAND, Inc.

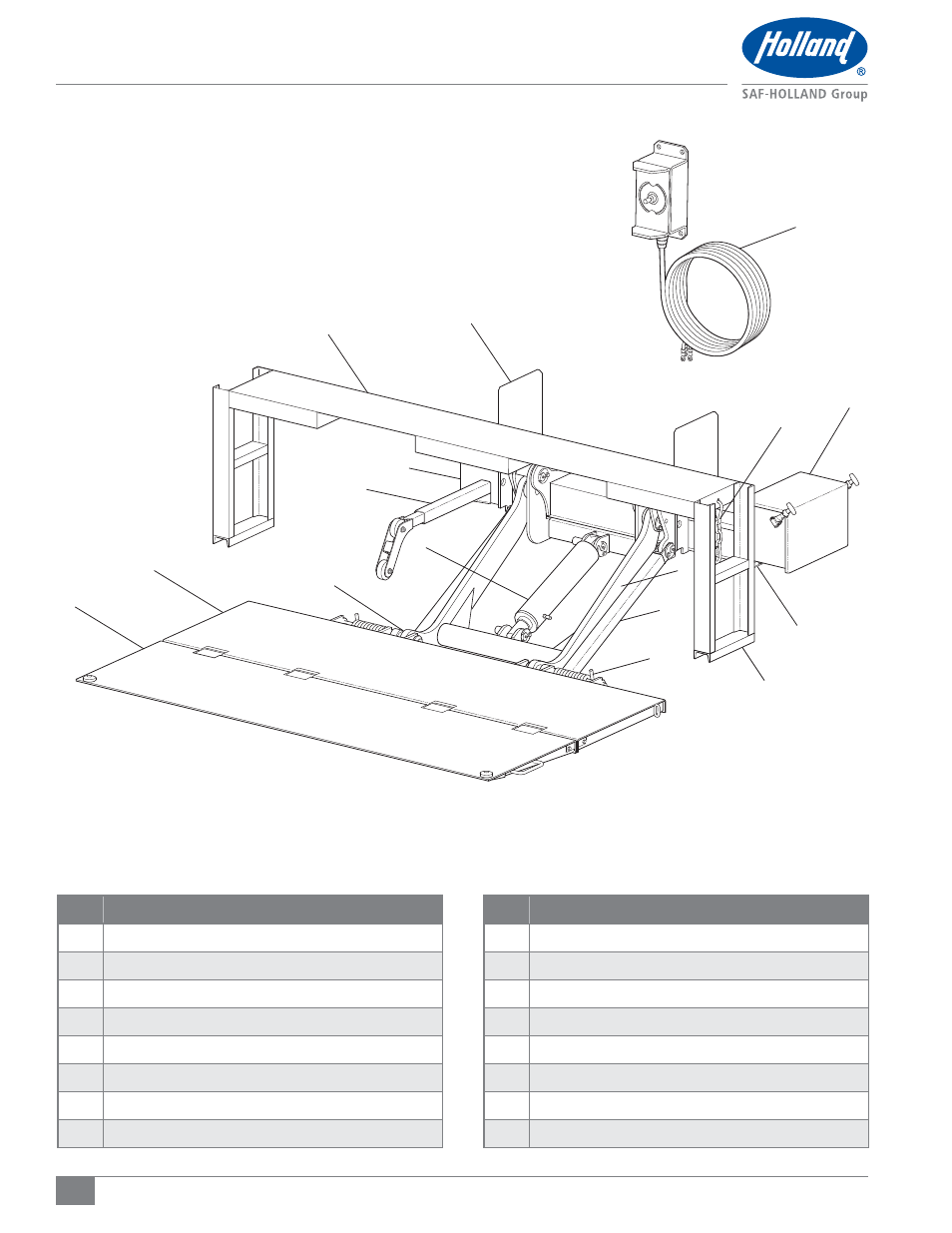

Liftgate Terminology
ITEM
DESCRIPTION
1
Control Station
2
Inner Platform
3
Outer Platform
4
Adjusting Bolts
5
Torsion Spring
6
Compression Member
7
Roller Opener
8
Lift Frame
ITEM
DESCRIPTION
9
Lift Cylinder
10
Step Brace
11
Pump Box Mount
12
Pump Box
13
Travel Hook
14
Main Tube
15
Attaching Plates
16
Deck Extension
2
3
4
9
8
7
14
5
6
10
11
15
16
13
12
1
