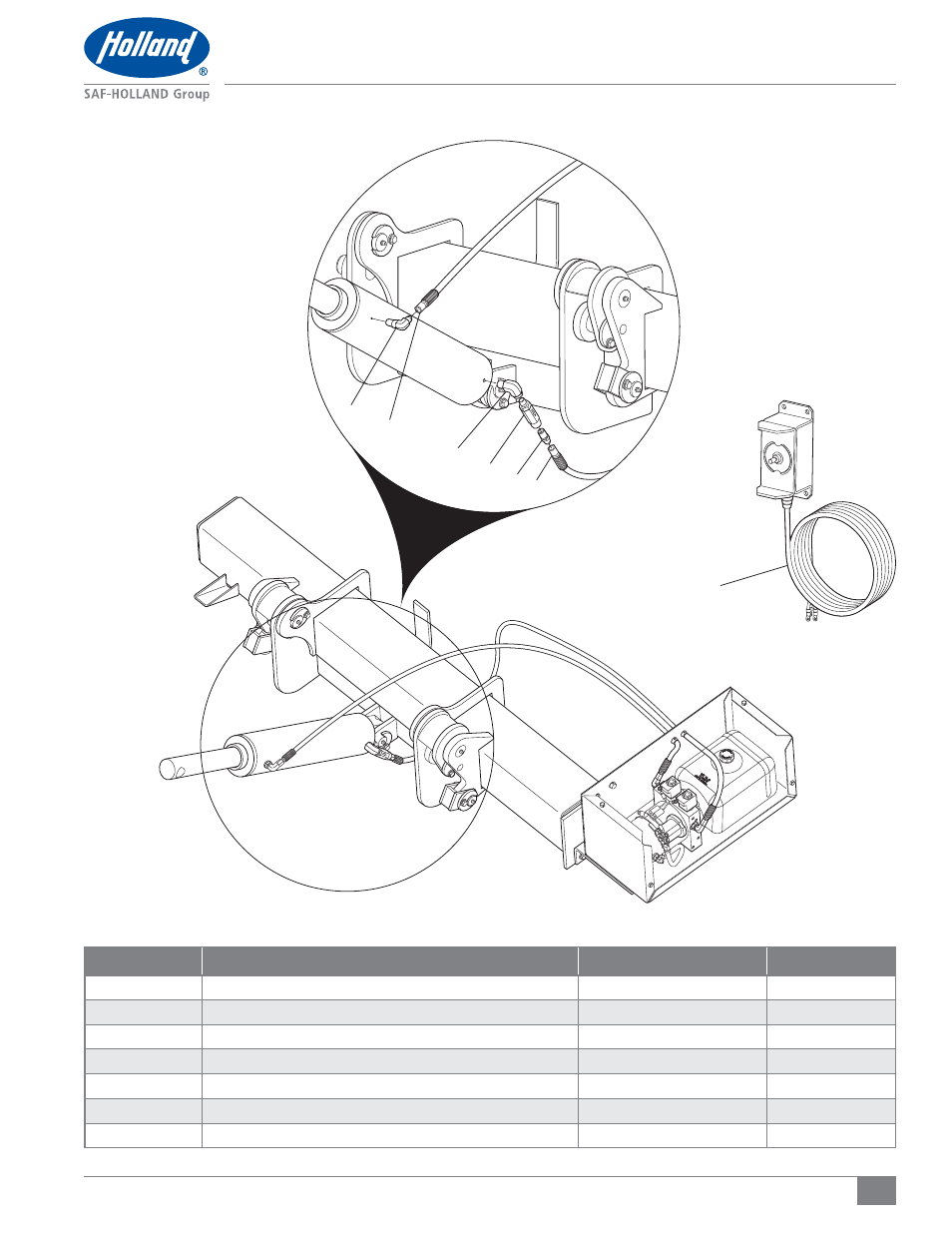

Hydraulics Parts List
DETAIL DESCRIPTION PART NO. QTY
1 Fitting, 90° Elbow, -6 Orb / -4 Jic XB-51918 1
2 Hose Assembly, 60" Lg XB-59906-60 1
3 Fitting, 90° Elbow, -6 Orb / 1/4" Fnpt XB-57030 1
4 Flow Control Valve, 2.0 Gpm XB-50032 1
5 Adapter 1/4"Male Pipe/-4 Male Jic XB-51529 1
6 Hose Assembly, 72" Lg XA-51610-07200 1
7 Control Station XA-58359-01 1
1
6
3
4
5
2
7
Power Down Option
