Liftgate Operation Instructions
Figure 13

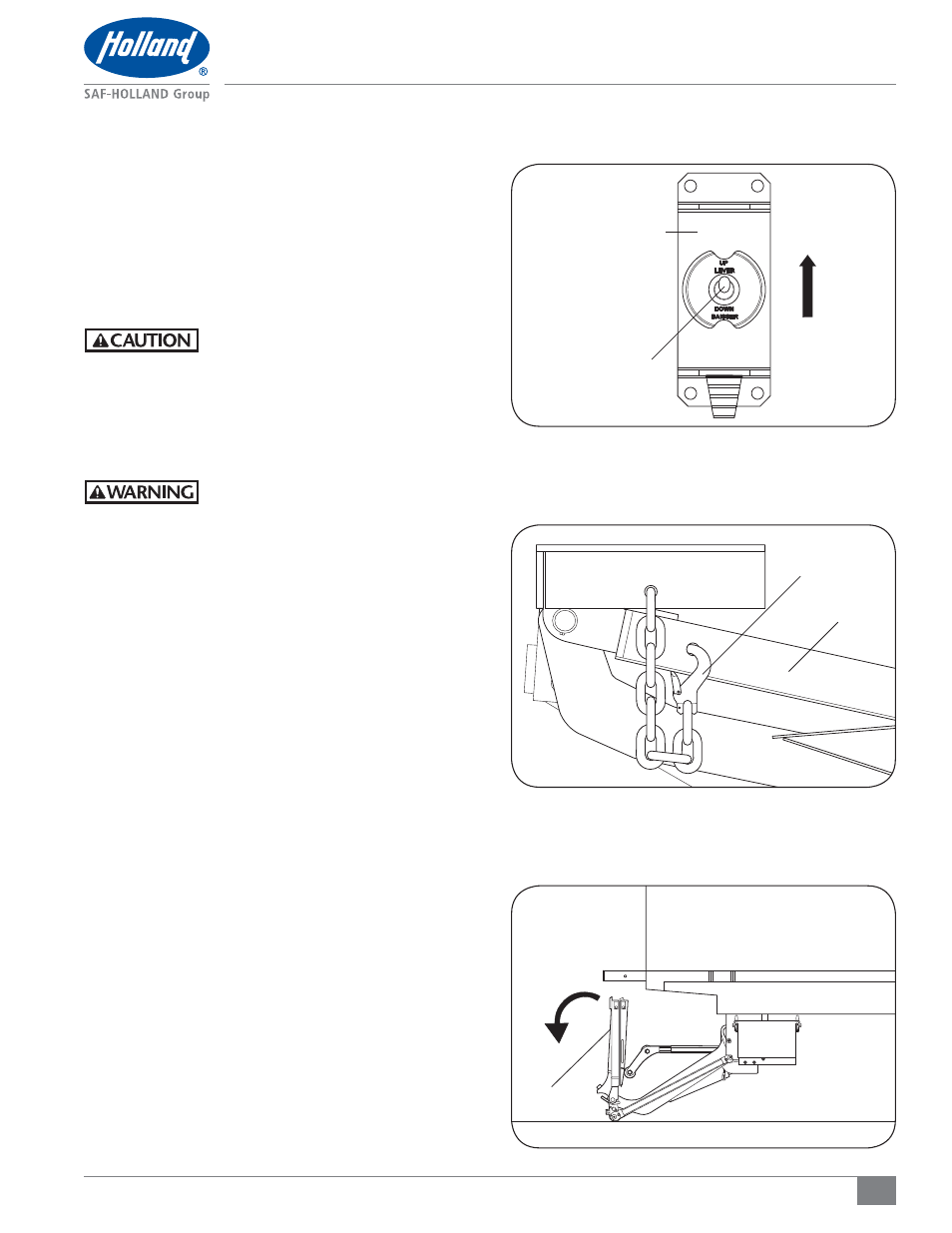

7. Unfolding the Platform
1. Stand clear of the liftgate, and using the control station,
raise the stowed platform to relieve any tension on the
travel chain (Figure 12).
2. Disengage the travel latch chain hook from the platform
(Figure 13).
3. With the travel chain clear, lower the unit until the
liftgate firmly contacts the ground.
Failure to ensure stable footing while
engaging the foot pedal could result
in slipping which, if not avoided, could
result in minor or moderate injury.
4. Grasp the platform to rotate it down. As the platform
starts to rotate, step back to allow the platform to fall
into a horizontal position (Figure 14).
Failure to keep feet clear of platform
during operation could create a crush
and/or pinch hazard which, if not avoided,
could result in death or serious injury.
5. While standing clear and to the side grasp the flip
over section and rotate it allowing it to fall into a
horizontal position.
Figure 14
PLATFORM
Figure 12
CONTROL STATION
TOGGLE SWITCH
UP
TRAVEL LATCH
CHAIN HOOK
PLATFORM
