Liftgate Operation Instructions
4. Pre-Operation Information
1. Ensure the platform is clear of obstacles and other personnel.
2. Inspect liftgate for any damage, bruised paint or
bent components.
3. Inspect electrical cables and hydraulic hoses, repair or
secure as necessary.
Failure to repair and/or replace worn or
damaged components before use could
result in liftgate failure which, if not avoided,
could result in death or serious injury.
4. Read and understand the decals referenced in Section 3.
5. Vehicle must be on flat, level ground before operating liftgate.
6. Ensure that the vehicle parking brake is securely engaged.

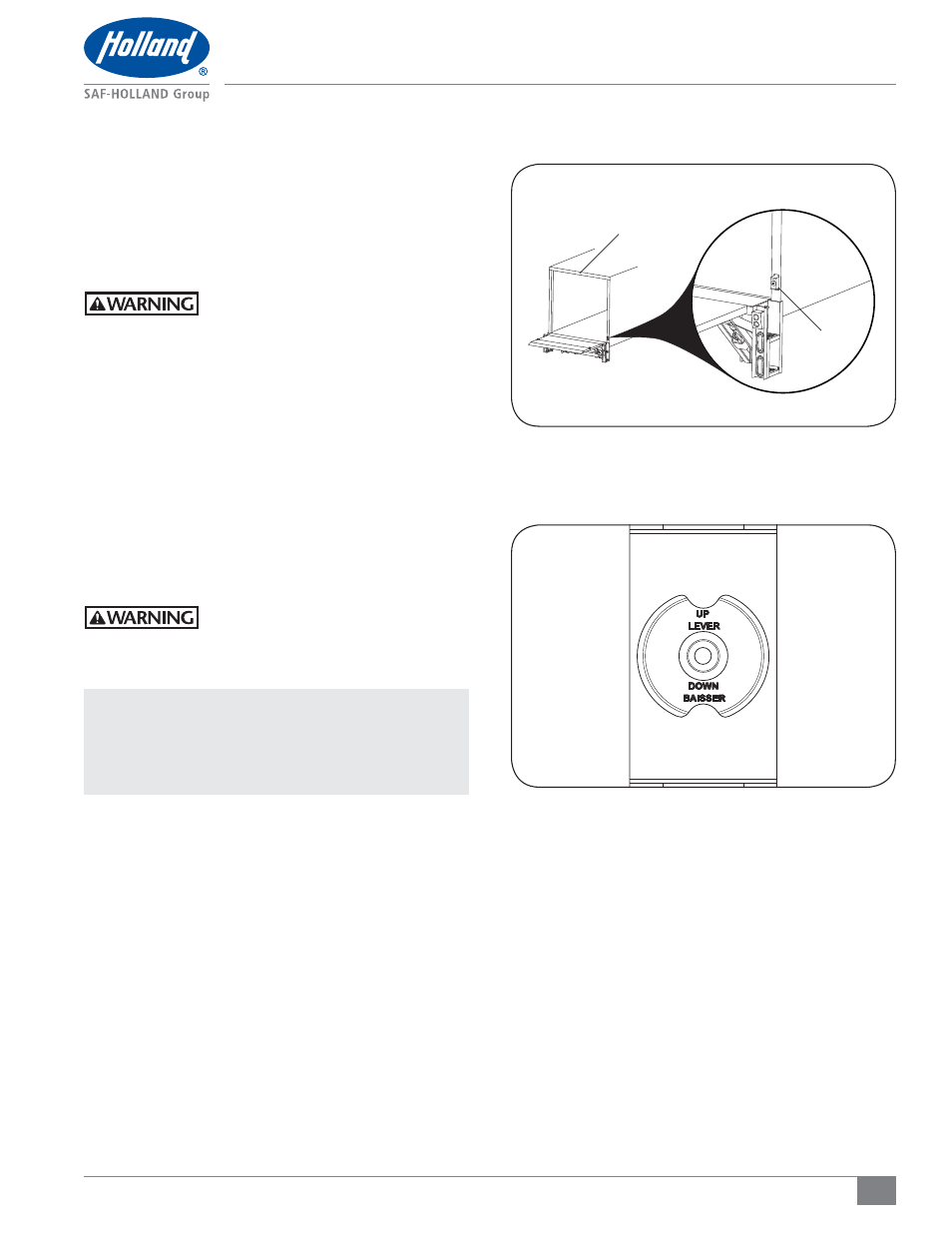

5. Control Station Switch Operation
To operate the liftgate, use the toggle switch on the control
station located at the rear of the vehicle (Figure 8).
This toggle switch enables the operator to raise and lower the
liftgate platform (Figure 9).
Failure to keep clear of the moving liftgate
could create a crush and/or pinch hazard
which, if not avoided, could result in death
or serious injury.
NOTE: If the Operator is required to ride the liftgate,
observe and familiarize yourself with the liftgate
operation, decals and manuals. Ensure stable
footing at all times. The switch only allows the
operator to raise or lower the platform.
REAR OF VEHICLE
CONTROL
STATION
