1-4
Chapter 1: Product introduction
1.5
Card installation
Follow the below instructions to install the RAID card on your motherboard.
Please do remember to install i-button and set IBTN RAID setting jumper
(usually named ITBN_SEL1) to [PIKE RAID5] after installing PIKE card. Refer
to the motherboard’s manual for details.

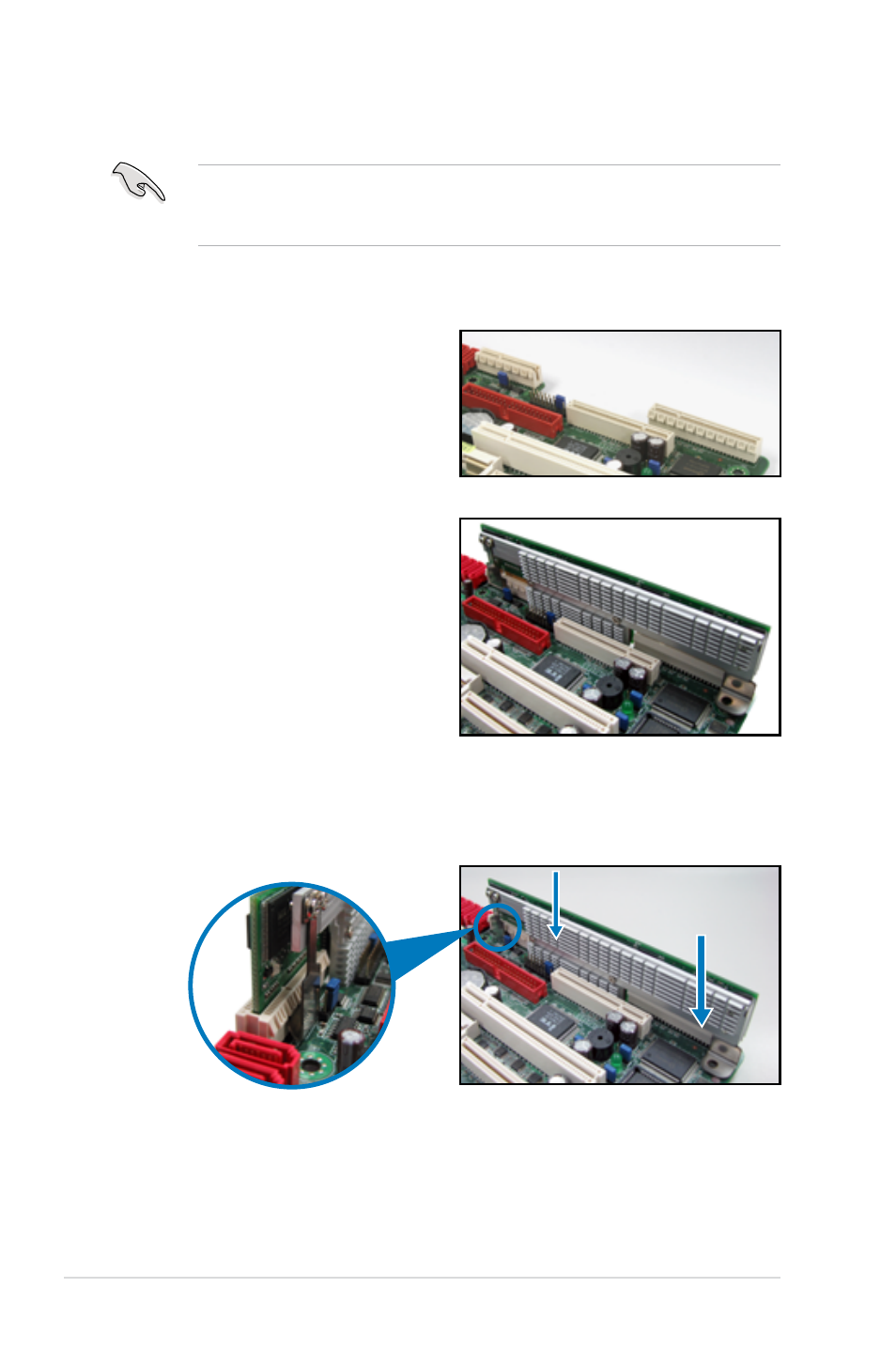

For 2U, 5U, or pedestal server
To install ASUS PIKE 1078 SAS RAID card on a 2U, 5U, or pedestal server
1. Locate the PIKE RAID card slot on
the motherboard.
2. Align the golden fingers of the RAID
card with the PIKE RAID card slot.
3. Insert the RAID card into the PIKE RAID card slot. Make sure the card is
completely inserted into the card slot, and the heatsink latch is completely
hooked to the edge of the card slot.
