Section 18: Toyota Yaris, 2010 – Current
2000-3811 Instructions 8-1-13.Doc Page 51 of 54

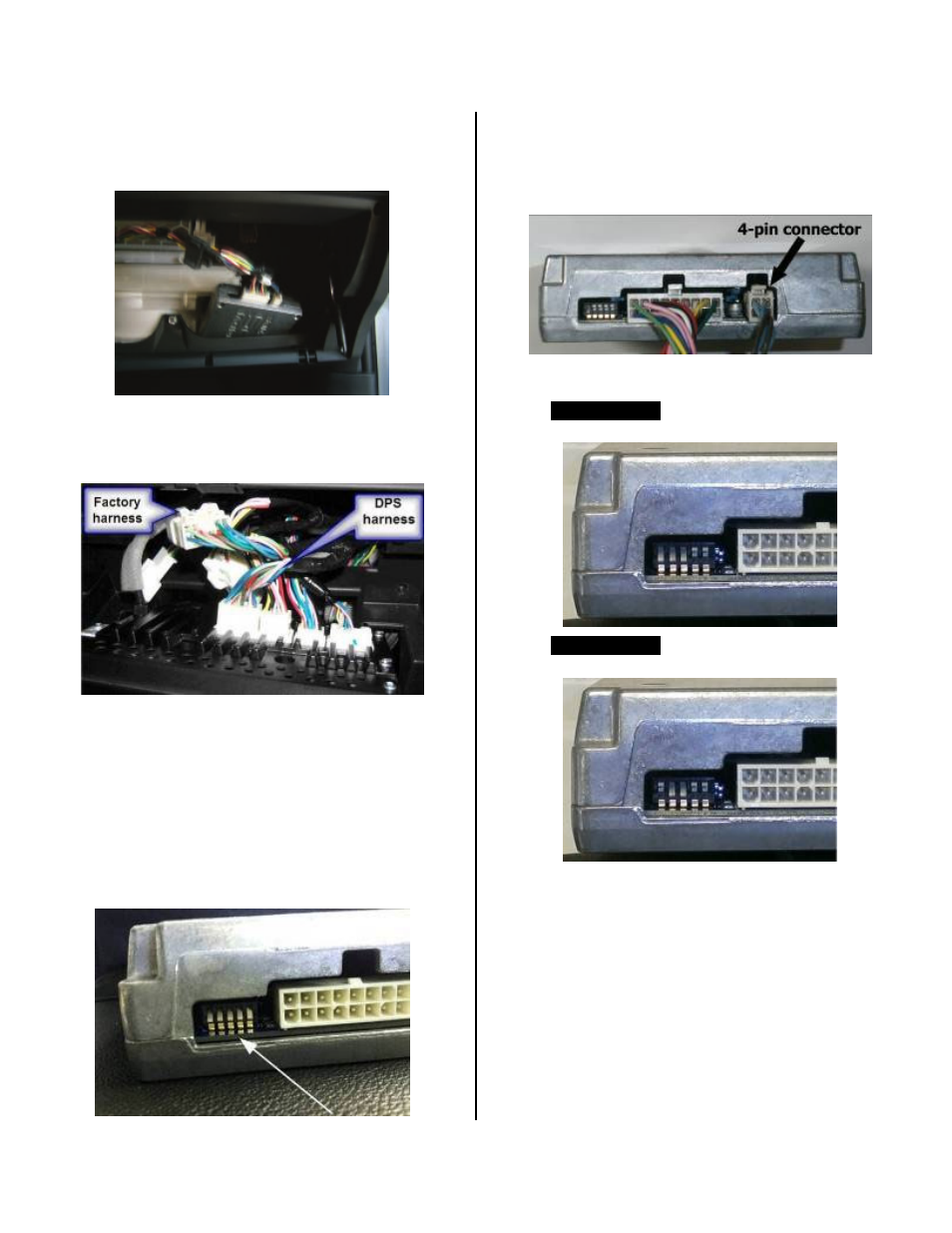

13. Place DPS module behind glove box area. Do not
secure with supplied 24” Wire Ties yet. Route
harness along factory harness and over to radio
area.
14. Connect DPS harness to the radio and connect the
factory radio plug to the other end of the DPS
harness. Reconnect all previously removed
connectors and antenna.
15. Secure DPS harness to vehicle wiring using supplied
8.5” Wire Ties. Avoid moving parts or sharp edges
that could cut or damage the wire harness.
16. Reinstall audio unit.
17. Reconnect negative battery cable. Re-torque battery
bolt to 36 inch lbs.
18. Place DPS module with the Bongiovi DPS Acoustics
side face down. Confirm the DPS module’s dip
switches are all set to the “down” position –
“DDDDD”:
19. Turn ignition key to “ON” position making sure radio
is on. (Note: There should be no sound from the
speakers).
20. Unplug the small 4-pin connector from the DPS
module.
21. Set DPS dip switches for Yaris according to the
vehicle’s sound system options:
A.
Yaris 4 speaker. Flip the fourth and fifth switches
to the “up” position – “DDDUU”:
B. Yaris 6 speaker. Flip the first, fourth, and fifth
switches to the “up” position – “UDDUU”:
22. Plug the small 4-pin connector back into the DPS
module and wait 10 seconds. (Note: There should
again be no sound from the speakers). Unplug the
4-pin connector from the DPS module and wait
another 10 seconds.
23. Again, plug the 4-pin connector back into the DPS
module. (Note: After a short delay, there should
now be sound from the speakers). Ensure radio
head unit is working properly including all speaker
channels.
24. Turn ignition key to “LOCK” (OFF) and remove key.
