4-3
4.3 INTERBUS
4 Function description

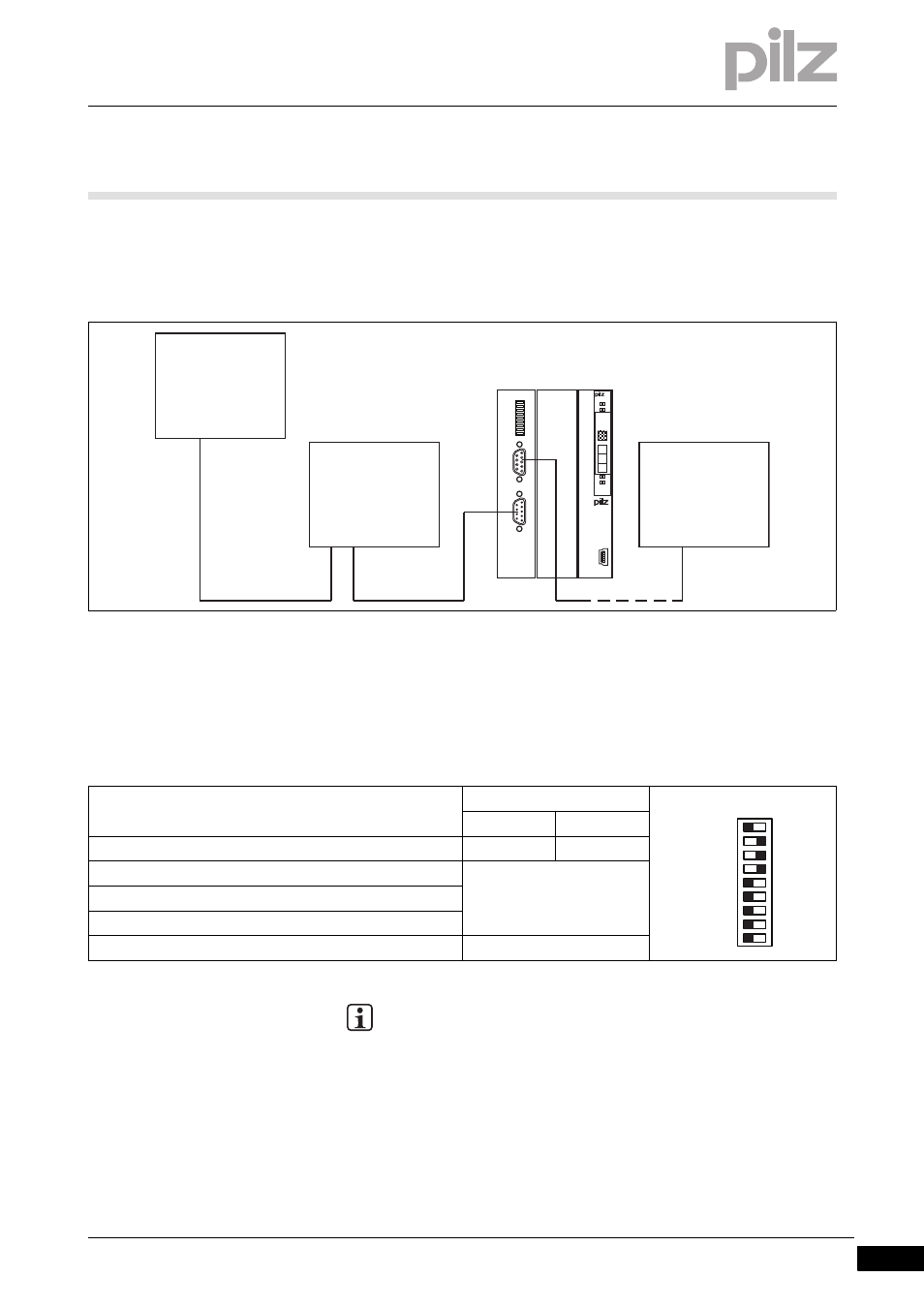

4.3 INTERBUS 4300 INTERBUS 4- 4.3.1 Connection to INTERBUS
Connection to INTERBUS 4- ][Funktionsbeschreibung_BA_Zusatz IBSe Kopplung
A PSSu system with INTERBUS interface is a passive subscriber (Slave)
of the INTERBUS remote bus without PCP channel.
4.3.2 Selector switch for setting the transmission rate
Selector switch for setting the transmission rate 4- ][Funktionsbeschreibung_BA_Zusatz IBS-FS bertragung
The INTERBUS transmission rate of a PSSu is set via the DIP switch la-
belled “500k” and “2M”.
Switch designation Position
off on
“500k”/“2M” 500 kBit/s 2 Mbit/s
DIAG Parameter
FS IN
FS OUT
- - Not assigned
INFORMATION
The INTERBUS transmission rate should only be set when the
module is switched off (no voltage applied).
The settings are only transferred when booting. Any changes
made to the settings during operation will not be transferred.
INTERBUS
Master
INTERBUS
Slave 1
PSSu
INTERBUS
Slave 2
INTERBUS
Slave n
PSSu H
SB IBSe
Usb Dev
SB I/O
USB
2
D -
3
D +
5
G N D
USB
312 015
0000000
HW 000
000
RC
RD
UL
BA
ON OFF
DIAG
FS 1 FS 0
500k 2M
REMOTE OUT
REMOTE IN
OFF ON
2M
DIAG
FS OUT
FS IN
500k
