7-7

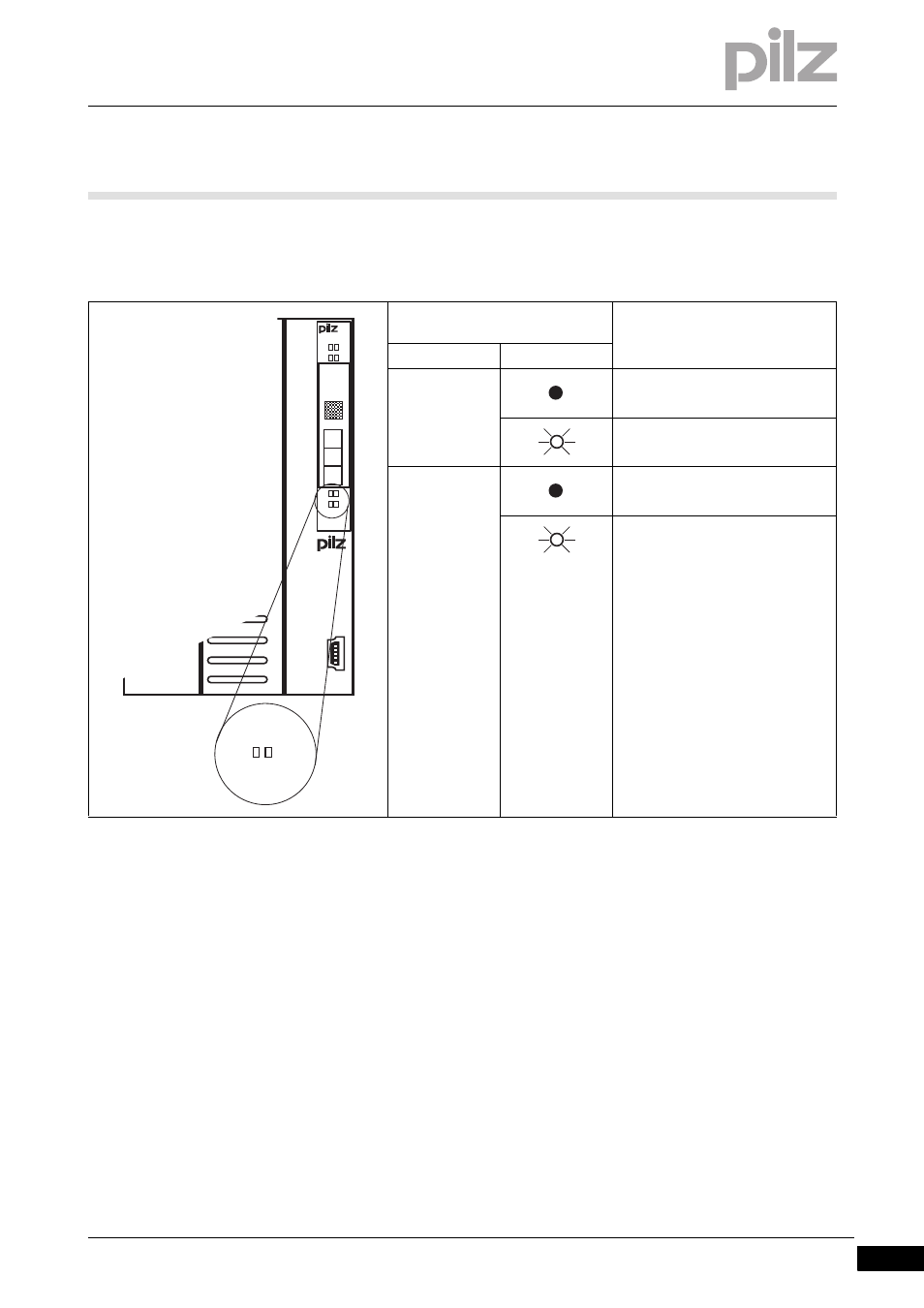

7.2 Display elements
7 Operation
The module has two LEDs to display the status of the data transfer (“RD”
and “BA” LED).
LED for INTERBUS diagnostics
Status of the data transfer Key
Description Status
RD The remote bus OUT is switched
on.
The remote bus OUT is switched
off.
BA No data transfer
Data is being transmitted
PSSu H
xx IBSe x
Usb Dev
SB I/O
SB ADDRESS
USB
2
D -
3
D +
5
G N D
USB
0
3
6
9
x 10
0
3
6
9
x 1
31...
0000000
HW 000
000 000
RC
RD
UL
BA
ON OFF
DIAG
FS I
FS O
500k 2M
REMOTE OUT
REMOTE IN
RD BA
