6-1

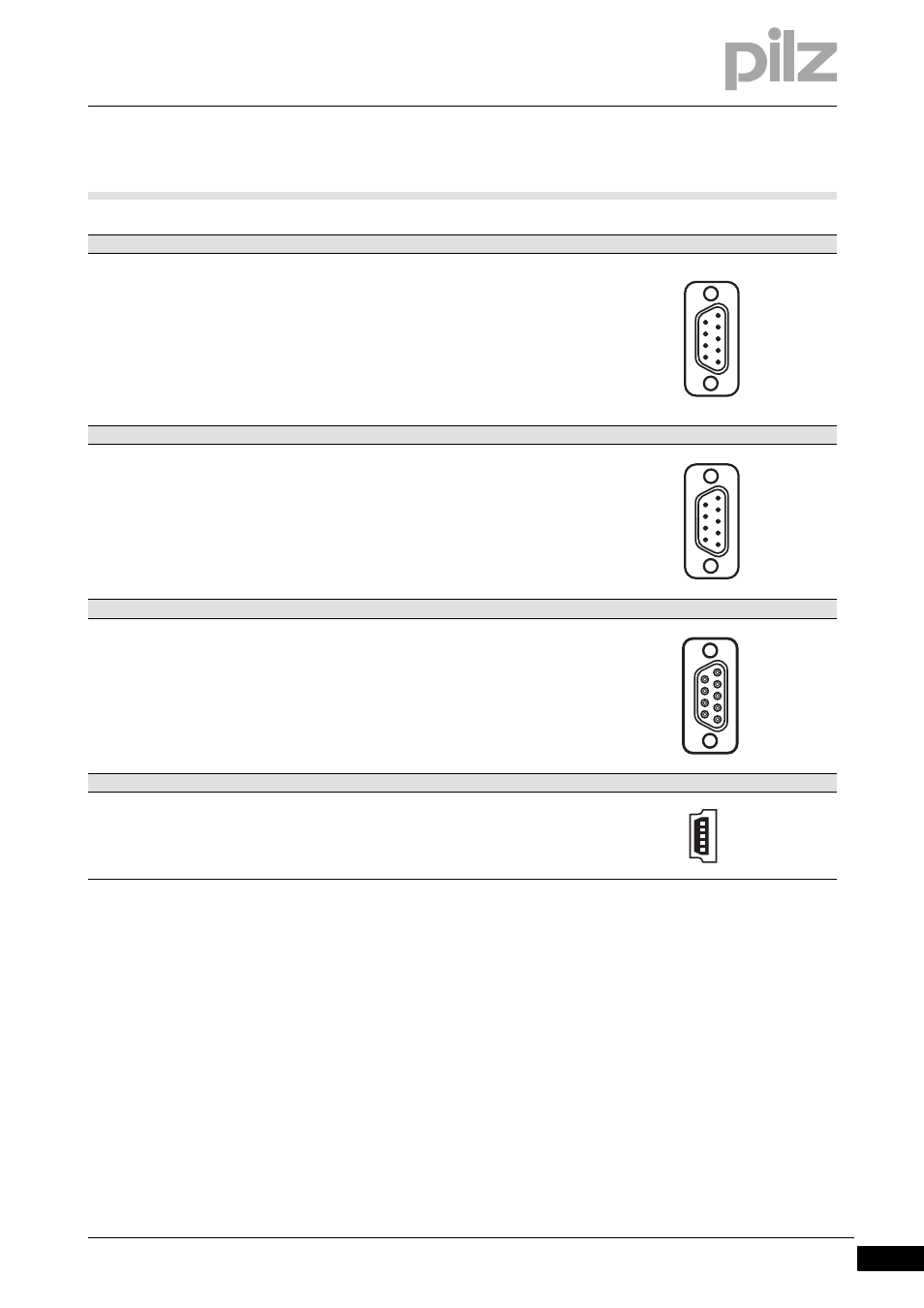

6.1 Interface assignment
6 Interfaces
6 6000 Interfaces Interfaces 6- 6.1 Interface assignment 6100 Interface assignment 6- ][Anschluss SB IBSe
 n.c. = not connected
SafetyBUS p Layout
Male 9-pin D-SUB connector 1: n.c.
2: CAN_L (brown)
3: CAN_GND (white)
4: n.c.
5: CAN_SHLD
6: n.c.
7: CAN_H (green)
8: Supply voltage for fibre-optic cou-
plers from Pilz
9: n.c.
INTERBUS IBS IN Layout
Male 9-pin D-SUB connector con-
forms to the guidelines of the INTER-
BUS User Group 1: DO
2: DI
3: GND
4: GND
5: n.c.
6: DO-
7: DI-
8: + 5 V
9: n.c.
INTERBUS IBS OUT Layout
Female 9-pin D-SUB connector con-
forms to the guidelines of the INTER-
BUS User Group 1: DO
2: DI
3: GND
4: GND
5: + 5 V
6: DO-
7: DI-
8: + 5 V
9: n.c.
USB Layout
Mini-B USB connector 1: n.c.
2: D- USB Data –
3: D+ USB Data +
4: n.c.
5: GND Ground
1
5
6
9
1
5
6
9
1
5
9
6
1
5
