Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
26
Chapter 3: Jumpers and Switches
NViS2310 User Manual

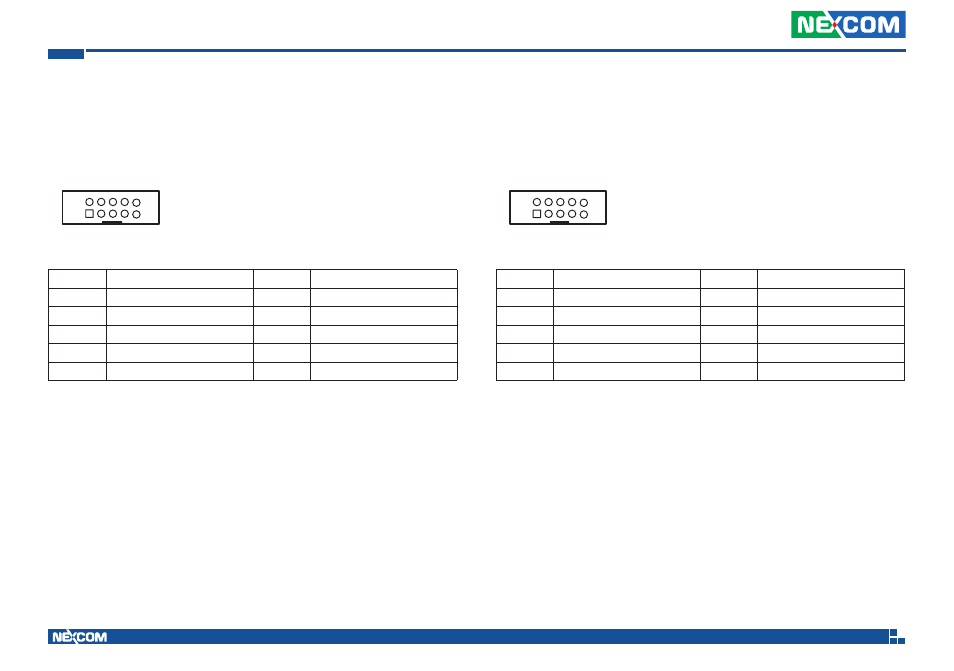

COM Port Connecter (COM1 RS-232)
Connector size: 2 x 5 = 10-pin header (2.00mm)
Connector location: CN18
COM Port Connecter (COM2 RS-232)
Connector size: 2 x 5 = 10-pin header (2.00mm)
Connector location: CN19
Pin
Definition
Pin
Definition
1
DCD_1
2
RXD_1
3
TXD_1
4
DTR_1
5
GND
6
DSR_1
7
RTS_1
8
CTS_1
9
RI/PW
10
NC
Pin
Definition
Pin
Definition
1
DCD_2
2
RXD_2
3
TXD_2
4
DTR_2
5
GND
6
DSR_2
7
RTS_2
8
CTS_2
9
RI/PW
10
NC
1
2
9
10
1
2
9
10
