Chapter 3: Jumpers and Switches
NViS2310 User Manual

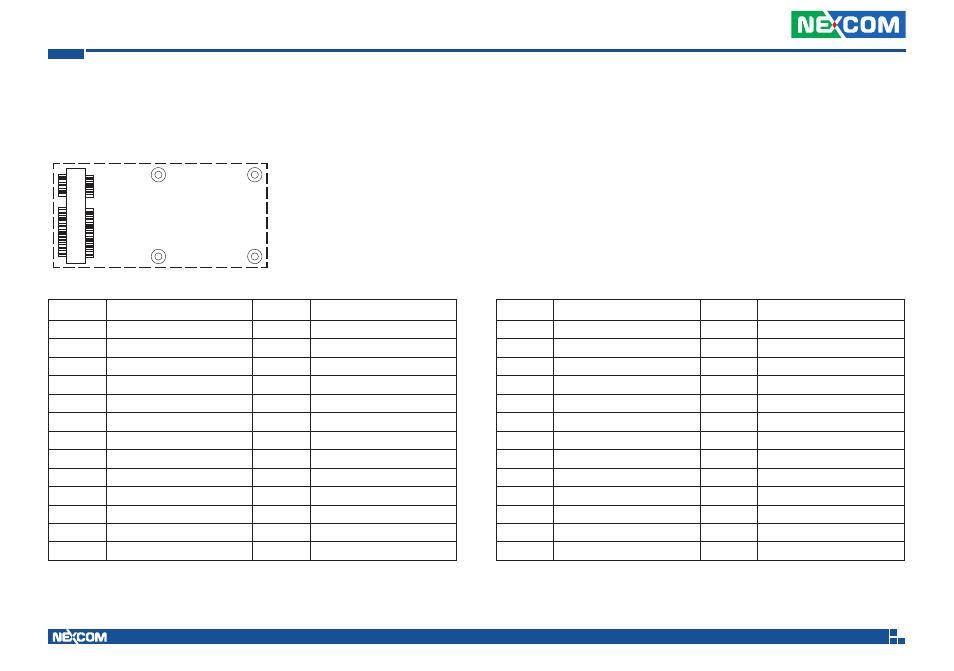

Mini-PCIe (USB + PCIe)
Connector location: CN25
1 2
51 52
Pin Definition Pin Definition
1 WAKE# 2 +V3.3_MINI_3
3 NC 4 GND
5 NC 6 +V1.5S_MINI_3
7 CLKREQ 8 NC
9 GND 10 NC
11 REFCLK- 12 NC
13 REFCLK+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 MINICARD3_DIS#
21 GND 22 WLAN_RESET#
23 PCIE_RX_N 24 +V3.3_MINI_3
25 PCIE_RX_P 26 GND
Pin Definition Pin Definition
27 GND 28 +V1.5S_MINI_3
29 GND 30 SMBCLK
31 PCIE_TX_N 32 SMBDAT
33 PCIE_TX_P 34 GND
35 GND 36 USB_D-
37 GND 38 USB_D+
39 +V3.3_MINI_3 40 GND
41 +V3.3_MINI_3 42 WWAN_LED#
43 GND 44 NC
45 NC 46 NC
47 NC 48 +V1.5S_MINI_3
49 NC 50 GND
51 CTRL0 52 +V3.3_MINI_3
