Chapter 4: System Setup
NViS2310 User Manual

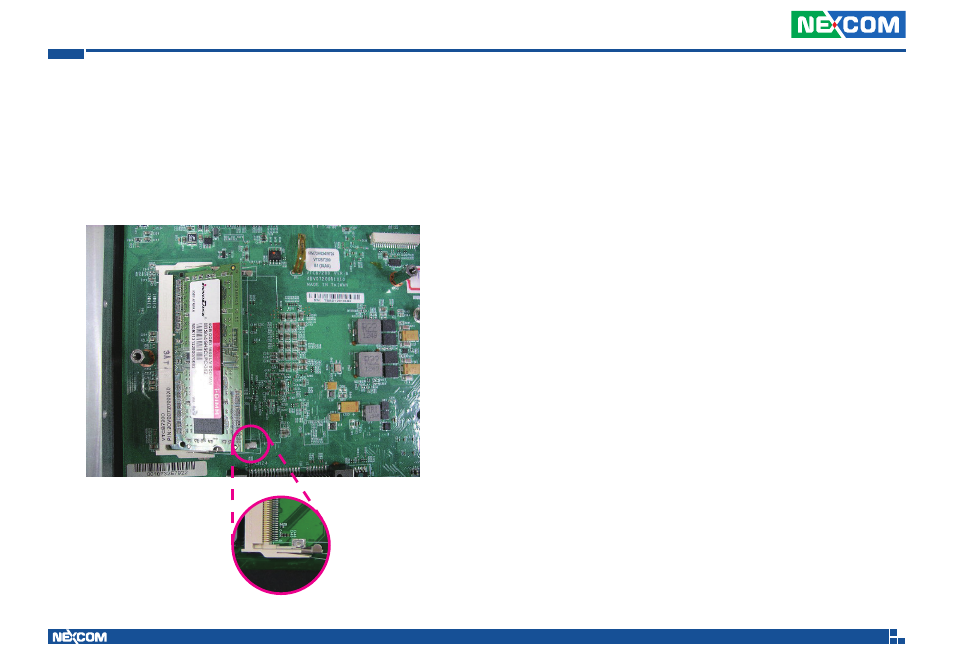

Installing a SO-DIMM
1. Push the ejector tabs which are at the ends of the socket outward. Then
insert the module into the socket at an approximately 30 degrees angle.
Apply firm even pressure to each end of the module until it slips down
into the socket. The contact fingers on the edge of the module will
almost completely disappear inside the socket.
Ejector tab
