Chapter 3: Jumpers and Switches
NViS2310 User Manual
6 1

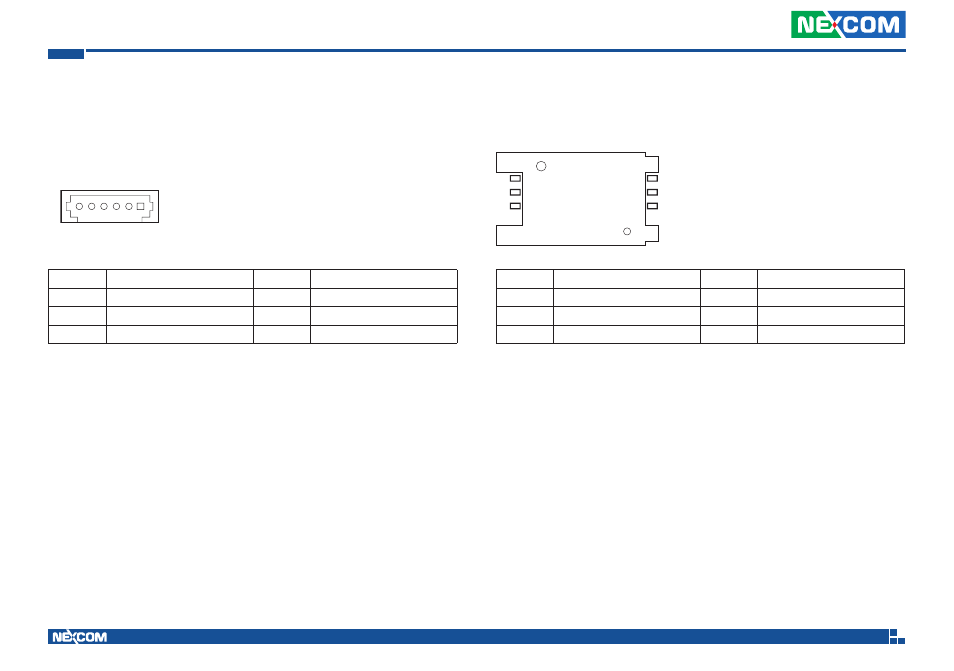

GPS Connector
Connector size: 1 x 6 = 6-pin header (1.0mm)
Connector location: J12
Pin Definition Pin Definition
1 GPS_BAT 2 GPS_LED#
3 GPS_TX 4 GPS_RX
5 GND 6 VCC3_GPS
Internal WWAN SIM Card Socket (SIM 3) For CN27
Connector location: CN24
Pin Definition Pin Definition
C1 SIM PWR C5 GND
C2 SIM RST C6 NC
C3 SIM CLK C7 SIM DAT
C3
C2
C1 C7
C6
C5
