Output Parameter RS90 RS180 RS270 RS360 RS450 RS540
Ext. Sync Mode (not available with FC option)
Input: Isolated TTL input for external frequency control. Requires 5V at 5 mA for logic high.
Accuracy: Ext. Sync to phase A with fixed Ext. Sync Frequency input:
16 Hz - 100 Hz: < 2°
100 Hz - 500 Hz: < 3°
> 500 Hz:
< 4°
Note: Output specifications apply below the Current / Voltage rating lines shown in the
V/I rating chart below.

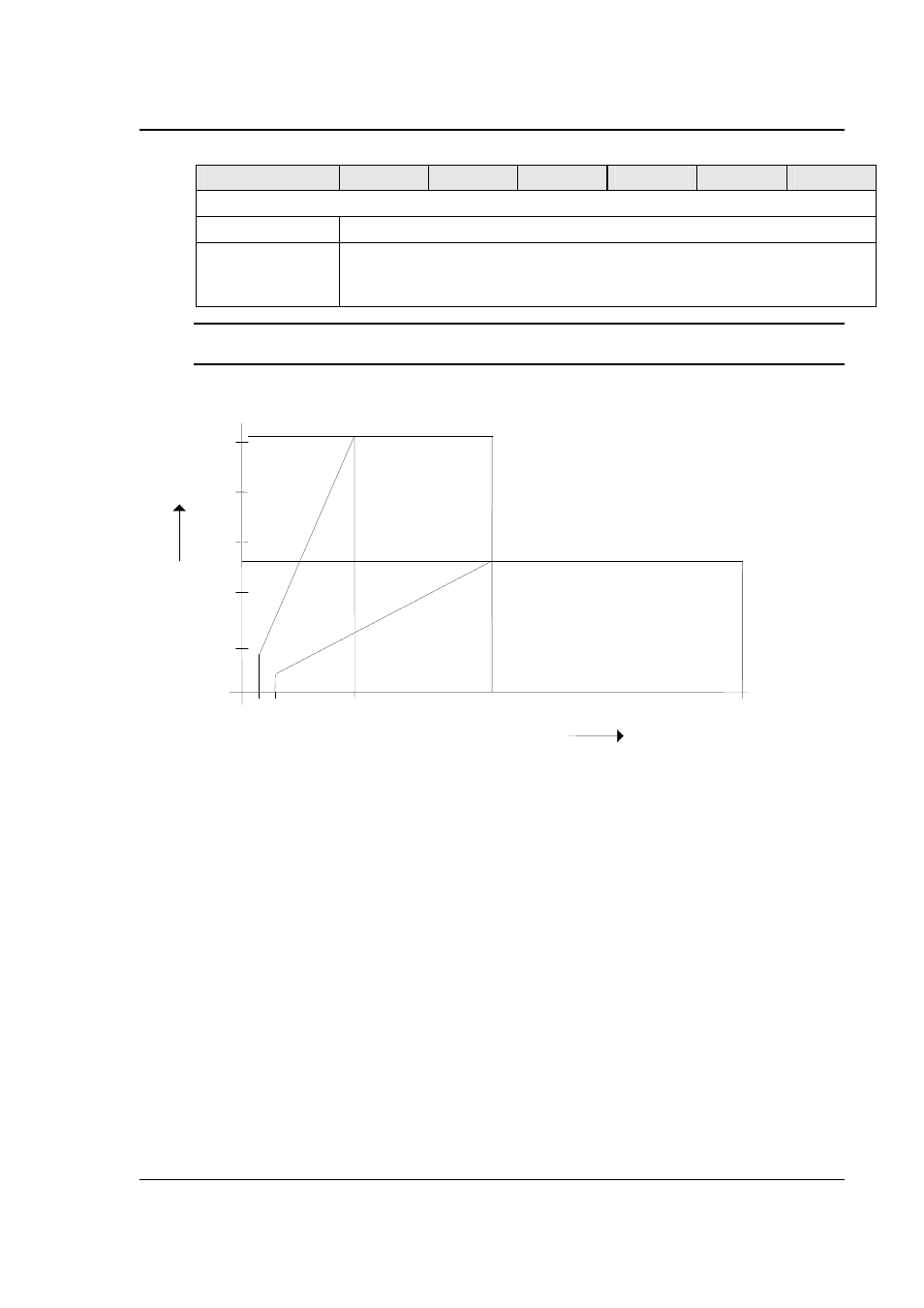

Figure 2-1: RS90 Voltage / Current Rating Chart for 150/300 V AC Ranges – Max Rating.
Current
(RMS)
Voltage (RMS)
75 300
200
120
160
80
40
100 A
150
Low V Range
High V Range
200 A
7.5 15
