8 Mechanical Installation
Aiming
Tools Required: 7/16" socket
Once the cabinet has been mounted in place, it may be necessary to adjust the direction of the
speakers for the individual facility. Drawing C-1132106 in Appendix A provides speaker
aiming instructions as well as recommended angles to position the speakers, based on the
cabinet’s location in relation to the seating area(s).
3.2 Mounting the Control Enclosure
Reference Drawings:
Shop Drawing; Standard Indoor Sound Amp Rack Mounting ............................. B-1152507
Tools Required: 7/16" socket
The Sportsound indoor sound system
control enclosure (Figure 4) typically
mounts in a closet adjacent to the sound
system or directly on the wall using
1 /
4
"
hardware. The head of the hardware
must not be larger than 5/8" or it will not
fit through the keyholes on the rear of
the enclosure (Figure 10). Refer to
Drawing B-1152507 for additional
mounting specifications.
Also notice the square knockout in the
center of the enclosure for mounting
directly over a power junction box.
Note: When used in an aquatics
facility, DO NOT mount the control
enclosure near the pool environment.

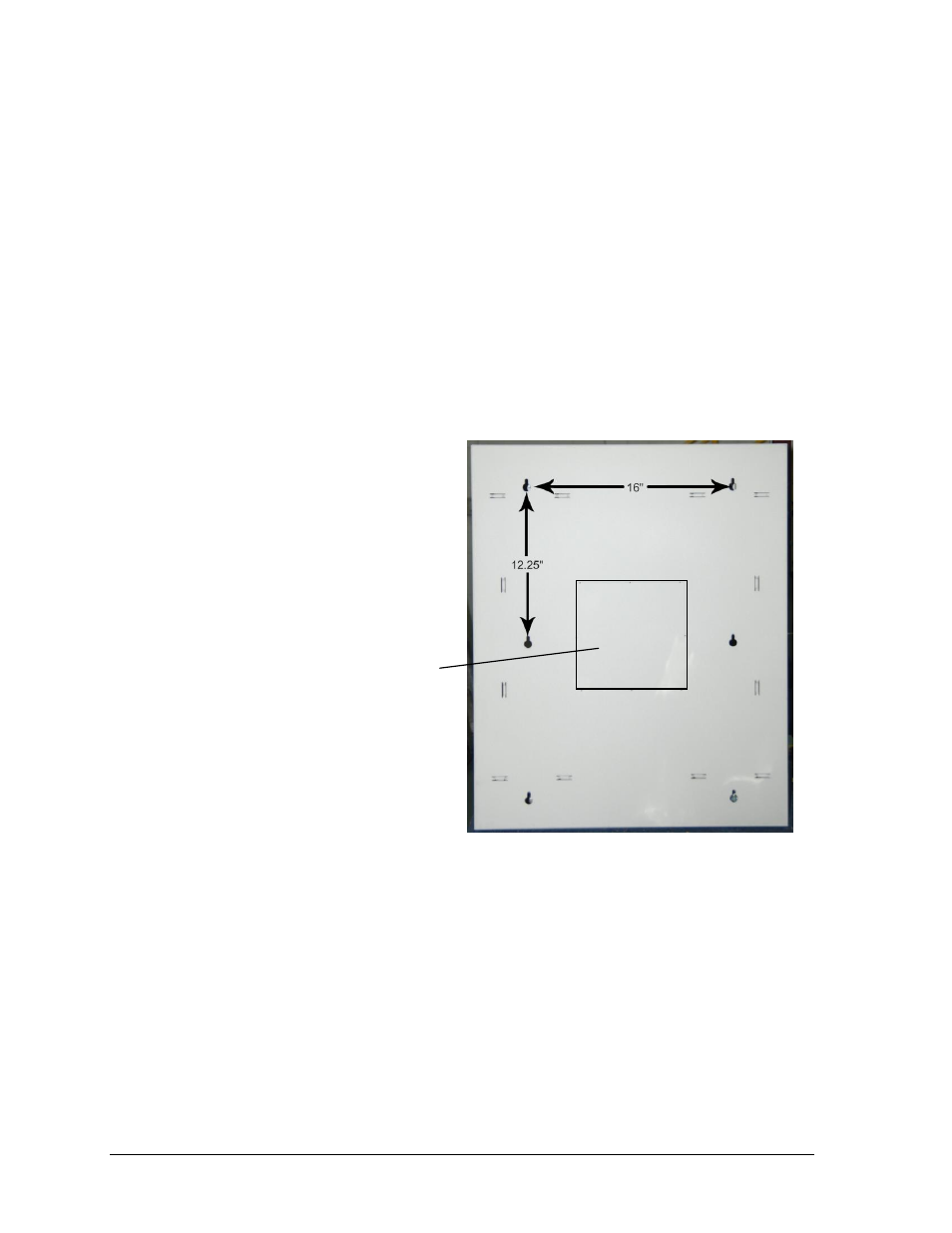

Figure 10: Control Enclosure Rear View
