Daktronics Sportsound Indoor (SSN-100/150) - Manual (Page 27)

8'
2' 7"
DISTANCE TO BOTTOM EDGE
OF CLIP ANGLE FROM TOP OF
SOUND SYSTEM CABINET.
1' 4"
5' 5"
DISTANCE TO BOTTOM EDGE
OF CLIP ANGLE FROM BOTTOM OF
SOUND SYSTEM CABINET.
24.000
15' MINIMUM DISTANCE TO FLOOR
17.319
SPEAKER OFFSET DISTANCE
FROM CENTERLINE (FT)
SPEAKER PAN
AMOUNT (DEGREES)
5 0
7.5 0
10 0
12.5 12
15 14
17.5 16
20 18
22.5 21
25 23
DAKTRONICS, INC. THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON
THIS DRAWING ARE CONFIDENTIAL AND PROPRIETARY.
DO NOT REPRODUCE BY ANY MEANS WITHOUT THE
EXPRESSED WRITTEN CONSENT OF DAKTRONICS, INC.
COPYRIGHT 2013 DAKTRONICS, INC.
BROOKINGS, SD 57006
DO NOT SCALE DRAWING
PROJ: DAKTRONICS AUDIO SYSTEMS

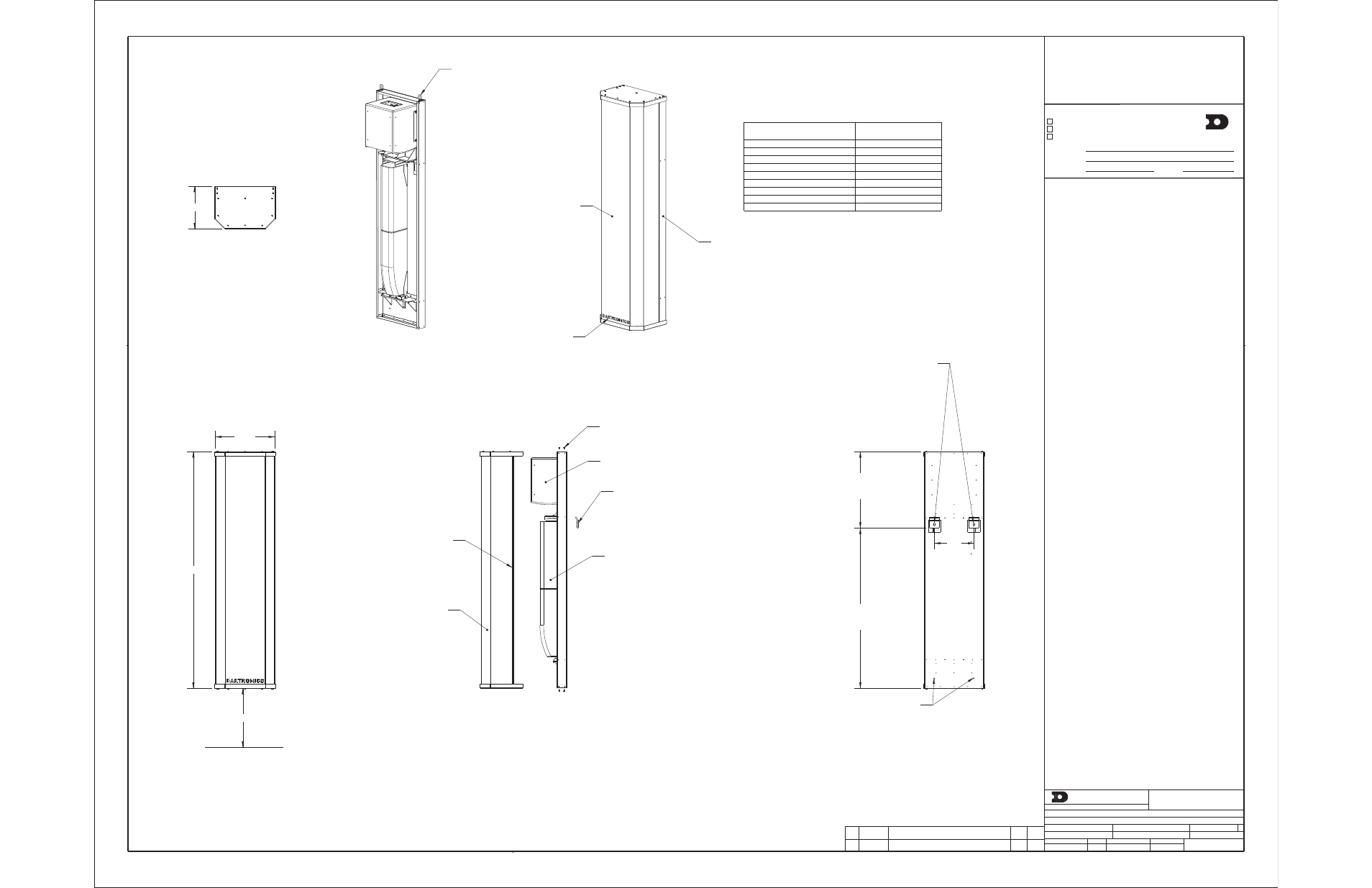

TITLE: SHOP DRAWING; SOUND SYSTEM, SSN-150
DESIGN: JROBERS DRAWN: JROBERS DATE: 30-SEP-13
SCALE: 1/10
SHEET: REV JOB NO: FUNC-TYPE-SIZE 1132106
1 OF 1 01 P 1756 F - 10 - C
REV DATE: BY:
01 03 OCT 13 UDPATED PER FINAL DESIGN JLR
SPORTSOUND
INDOOR AUDIO SYSTEM
SSN-150
NOTES:
1.0 GENERAL NOTES
1.1 ALL DIMENSIONS IN FEET AND INCHES. DIMENSIONS ARE
APPROXIMATE AND SUBJECT TO CHANGE DUE TO DETAILED
DESIGN CONSIDERATIONS.
1.2 TERMINAL BLOCKS FOR LANDING THE SPEAKER
WIRES WILL BE PROVIDED WITHIN THE CABINET
BY DAKTRONICS.
1.3 HOLES FOR WIRE ENTRY TO BE PUNCHED IN CABINET
BY THE ELECTRICAL SUBCONTRACTOR.
1.4 LOCATION OF THE SPEAKER WIRE ENTRANCE HOLES TO BE
DETERMINED BY THE CUSTOMER.
2.0 STRUCTURAL NOTES
2.1 IT WILL BE THE UNDERSTANDING OF DAKTRONICS
THAT SHOP APPROVAL IMPLIES THAT A QUALIFIED
ENGINEER HAS REVIEWED THE ADDITION OF THE
SPEAKER CABINET LOAD TO THE BUILDING AND
THAT THE BUILDING STRUCTURE HAS BEEN DEEMED
ACCEPTABLE TO SUPPORT THE ADDITIONAL LOAD AS
DETAILED.
2.2 CABINET MATERIAL IS ALL ALUMINUM.
2.3 WEIGHT OF CABINET WITH SPEAKERS: 175 LBS.
2.4 THE BOTTOM OF THE CABINET SHOULD BE MOUNTED NO LESS
THAN 15 FT FROM THE GYM FLOOR TO AVOID INTERFERENCE
WITH THE BASKETBALL BACKBOARDS.
2.5 INTERNAL SPEAKERS TO BE PROVIDED AND INSTALLED BEFORE
THE CABINET ARRIVES ON SITE.
2.6 DAKTRONICS DESIGNED STRUCTURE HARDWARE DOES NOT
INCLUDE ANY TENSION CONTROL HARDWARE. TORQUE ON
BOLTS TO FOLLOW THE "TURN OF THE NUT METHOD" OF
TIGHTENING, UNLESS OTHERWISE NOTED.
3.0 PROJECT RESPONSIBILITIES
3.1 ALL ON-SITE WORK TO BE DONE IN ACCORDANCE WITH OSHA
AND ALL LOCAL CODES THAT APPLY.
3.2 DAKTRONICS SUBCONTRACTORS RESPONSIBLE FOR JOBSITE
SAFETY.
3.3 DAKTRONICS SUBCONTRACTORS ARE SOLELY RESPONSIBLE
FOR THE DESIGN AND INSTALLATION OF ALL TEMPORARY
BRACING AND OTHER ELEMENTS AND EQUIPMENT
NECESSARY FOR A SAFE INSTALLATION.
3.4 EACH SUBCONTRACTOR IS RESPONSIBLE FOR THE REMOVAL
AND DISPOSAL OF WASTE MATERIALS ON THE JOBSITE.
3.5 DAKTRONICS AND OWNERS SUBCONTRACTORS SHALL VERIFY
ALL EXISTING DIMENSIONS AND CONDITIONS PRIOR TO
INSTALLATION. NOTIFY DAKTRONICS IMMEDIATELY IF ANY
DISCREPANCIES ARE FOUND.
3.6 REFER TO STANDARD FORM AGREEMENT BETWEEN
CONTRACTOR AND SUBCONTRACTOR (AIA-A401) AND
ATTACHED DOCUMENTS FOR DETAILED SCOPE OF WORK
AND RESPONSIBILITY.
FRONT VIEW
TOP VIEW
REAR VIEW
BOTTOM OF CABINET BOLTS TO
WALL MATERIAL @ 2 LOCATIONS
TO RESTRICT UPWARD MOVEMENT
OF CABINET. ACCESS TO THE INSIDE
OF THE CABINET REQUIRED TO INSTALL.
LARGE STEEL CLIP ANGLES WILL BE ANCHORED TO THE
GYMNASIUM WALL WITH 1/2" HARDWARE @ 2 LOCATIONS.
THE BACK OF THE SPEAKER CABINET SLIDES OVER AND DOWN
ON TO THE CLIP ANGLES FOR MOUNTING.
CLIPS TO BE PROVIDED BY DAKTRONICS.
***THE ANGLED SIDE OF THE CLIP ANGLE
POINTS UPWARD FOR MOUNTING***
MOUNTING HARDWARE TO BE PROVIDED BY INSTALLATION
SUBCONTRACTOR. CONTRACTOR TO VERIFY WALL TYPE
PRIOR TO INSTALLATION.
ISOMETRIC VIEW
ACOUSTICAL MESH TO BE APPROVED AND PRINTED
PER CUSTOMER SPECIFICATIONS.
STANDARD DESIGN AND COLOR IS BLACK.
DAKTRONICS LOGO TO BE PRINTED
ON MESH OVER TOP OF CUSTOMER
GRAPHICS OR COLORS.
EXPOSED CABINET
(SIDE PORTIONS, TOP AND BOTTOM)
TO BE PAINTED SEMI-GLOSS BLACK OR
CUSTOM COLORED PER THE CUSTOMER'S
REQUEST.
RIGHT SIDE VIEW
FRONT REMOVAL SHOWN
ACOUSTICAL MESH WRAPS AROUND
ENTIRE FACE PORTION TO
THIS SEAM ON BOTH SIDES.
STANDARD FULL RANGE COLUMN SPEAKER.
NOTE: THIS SPEAKER CAN BE TILTED DOWNWARD
OR PANNED SIDE-TO-SIDE DEPENDING ON SPEAKER
CABINET LOCATION IN GYMNASIUM WITH RESPECT
TO THE SEATING AREAS.
TILT THE SPEAKER DOWNWARD SUCH THAT
IT AIMS AT THE UPPER MOST SEATS.
MAXIMUM DOWNWARD TILT IS 5 DEGREES.
MAXIMUM SIDE-TO-SIDE PAN IS 25 DEGREES.
USE A 7/16" SOCKET AND WRENCH TO LOOSEN THE
HARDWARE FOR SPEAKER AIMING.
LOW FREQUENCY SPEAKER.
FRONT OF CABINET IS REMOVABLE
FOR SPEAKER ACCESS AND MAINTENANCE
4 BOLTS ON THE TOP AND BOTTOM HOLD THE
FRONT OF THE CABINET TO THE REAR ASSEMBLY.
STEEL CLIP ANGLES TO BE MOUNTED
TO THE WALL FOR SUPPORTING THE
DEAD LOAD OF THE CABINET.
NOTE: THE ANGLED SIDE OF THE CLIP ANGLE
POINTS UPWARD AS SHOWN FOR INSTALLATION.
REFER TO DD-2670874 FOR RECOMMENDED ANCHORS.
ISOMETRIC VIEW
(GRILLE REMOVED)
LIFT EYES ARE SUPPLIED FOR INSTALLATION
OF THE WALL SECTION.
LIFTEYES ARE TO BE REMOVED BEFORE
THE FRONT GRILLE IS ATTACHED.
SUBMITTAL APPROVAL
COMPANY:
SIGNED:
TITLE:
APPROVED
APPROVED AS NOTED
APPROVED AS NOTED & RESUBMIT
DATE:
