Daktronics Sportsound Indoor (SSN-100/150) - Manual (Page 17)

Electrical Installation 11
SSN-150
1. Connect 1 pair, 12 AWG speaker cable
(part # W-1561) @2 to the CH1 and CH2
OUTPUTS of the amplifier in the control
enclosure. Refer to Figure 17 and Detail
“B” of Drawing C-1144831.
2. Route both speaker cables in conduit
from the control enclosure to the speaker
enclosure. Drill a hole in the speaker
enclosure for conduit installation.
3. Remove the front grille of the speaker
enclosure, if not already removed
(refer to Figure 7).
4. Terminate both speaker cables to the terminal block in the speaker enclosure as
shown in Detail “A” of Drawing C-1144831 and Figure 18.
5. Reattach the front grille once wiring terminations and speaker aiming are complete
(refer to Section 3.1).
Sub Main

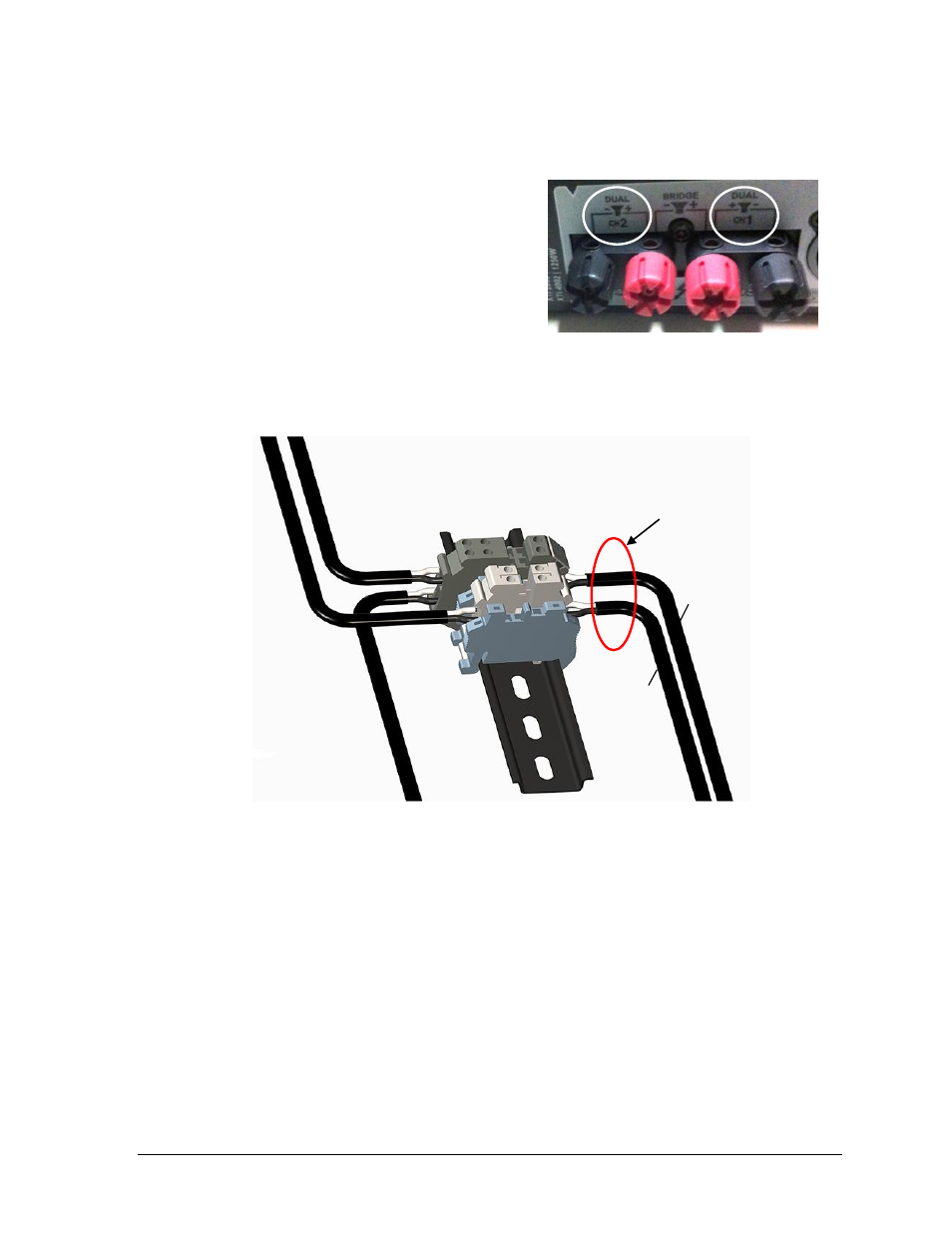

Figure 17: Power Out (SSN-150)
Figure 18: SSN-150 Termination Block
Field Terminations
Main
Sub
