54.930
19.997
6.700
16' MINIMUM DISTANCE TO FLOOR
SPEAKER OFFSET DISTANCE
FROM CENTERLINE (FT)
SPEAKER PAN
AMOUNT (DEGREES)
5 0
7.5 0
10 0
12.5 12
15 14
17.5 16
20 18
22.5 21
25 23
DAKTRONICS, INC. THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON
THIS DRAWING ARE CONFIDENTIAL AND PROPRIETARY.
DO NOT REPRODUCE BY ANY MEANS WITHOUT THE
EXPRESSED WRITTEN CONSENT OF DAKTRONICS, INC.
COPYRIGHT 2013 DAKTRONICS, INC.
BROOKINGS, SD 57006
DO NOT SCALE DRAWING
PROJ: DAKTRONICS AUDIO SYSTEMS

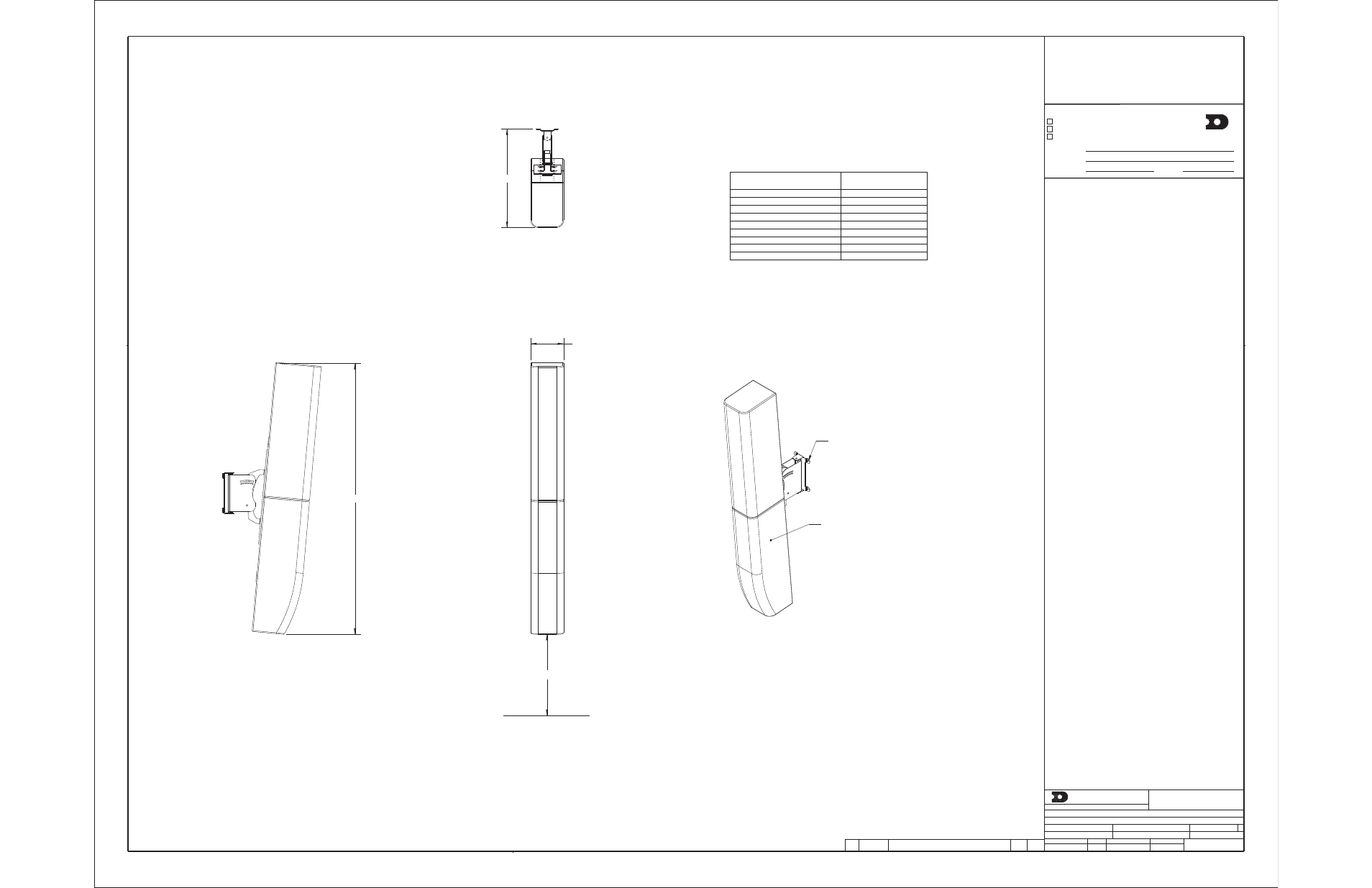

TITLE: SHOP DRAWING; SOUND SYSTEM, SSN-100
DESIGN: JROBERS DRAWN: JROBERS DATE: 04-OCT-13
SCALE: 1/10
SHEET: REV JOB NO: FUNC-TYPE-SIZE 1152497
1 OF 1 00 P 1756 F - 10 - C
REV DATE: BY:
SPORTSOUND
INDOOR AUDIO SYSTEM
SSN-100
NOTES:
1.0 GENERAL NOTES
1.1 ALL DIMENSIONS IN FEET AND INCHES. DIMENSIONS ARE
APPROXIMATE AND SUBJECT TO CHANGE DUE TO DETAILED
DESIGN CONSIDERATIONS.
1.2 SPEAKER AND MOUNT TO BE BLACK IN COLOR.
2.0 STRUCTURAL NOTES
2.1 IT WILL BE THE UNDERSTANDING OF DAKTRONICS
THAT SHOP APPROVAL IMPLIES THAT A QUALIFIED
ENGINEER HAS REVIEWED THE ADDITION OF THE
SPEAKER LOAD TO THE BUILDING AND THAT THE
BUILDING STRUCTURE HAS BEEN DEEMED ACCEPTABLE
TO SUPPORT THE ADDITIONAL LOAD AS DETAILED.
2.2 WEIGHT OF SPEAKER: 45 LBS.
2.3 THE BOTTOM OF THE SPEAKER SHOULD BE MOUNTED NO LESS
THAN 16 FT FROM THE GYM FLOOR TO AVOID INTERFERENCE
WITH THE BASKETBALL BACKBOARDS.
3.0 PROJECT RESPONSIBILITIES
3.1 ALL ON-SITE WORK TO BE DONE IN ACCORDANCE WITH OSHA
AND ALL LOCAL CODES THAT APPLY.
3.2 DAKTRONICS SUBCONTRACTORS RESPONSIBLE FOR JOBSITE
SAFETY.
3.3 DAKTRONICS SUBCONTRACTORS ARE SOLELY RESPONSIBLE
FOR THE DESIGN AND INSTALLATION OF ALL TEMPORARY
BRACING AND OTHER ELEMENTS AND EQUIPMENT
NECESSARY FOR A SAFE INSTALLATION.
3.4 EACH SUBCONTRACTOR IS RESPONSIBLE FOR THE REMOVAL
AND DISPOSAL OF WASTE MATERIALS ON THE JOBSITE.
3.5 DAKTRONICS AND OWNERS SUBCONTRACTORS SHALL VERIFY
ALL EXISTING DIMENSIONS AND CONDITIONS PRIOR TO
INSTALLATION. NOTIFY DAKTRONICS IMMEDIATELY IF ANY
DISCREPANCIES ARE FOUND.
3.6 REFER TO STANDARD FORM AGREEMENT BETWEEN
CONTRACTOR AND SUBCONTRACTOR (AIA-A401) AND
ATTACHED DOCUMENTS FOR DETAILED SCOPE OF WORK
AND RESPONSIBILITY.
FRONT VIEW
LEFT VIEW
TOP VIEW
ISOMETRIC VIEW
MOUNTING HARDWARE TO BE PROVIDED BY INSTALLATION
SUBCONTRACTOR. CONTRACTOR TO VERIFY WALL TYPE
PRIOR TO INSTALLATION.
REFER TO DD-2670868 FOR RECOMMENDED ANCHORS.
STANDARD FULL RANGE COLUMN SPEAKER.
NOTE: THIS SPEAKER CAN BE TILTED DOWNWARD
OR PANNED SIDE-TO-SIDE DEPENDING ON SPEAKER
LOCATION IN GYMNASIUM WITH RESPECT
TO THE SEATING AREAS.
TILT THE SPEAKER DOWNWARD SUCH THAT
IT AIMS AT THE UPPER MOST SEATS.
SUBMITTAL APPROVAL
COMPANY:
SIGNED:
TITLE:
APPROVED
APPROVED AS NOTED
APPROVED AS NOTED & RESUBMIT
DATE:
