DFI KB160 - Manual (Page 19)

www.dfi .com
19

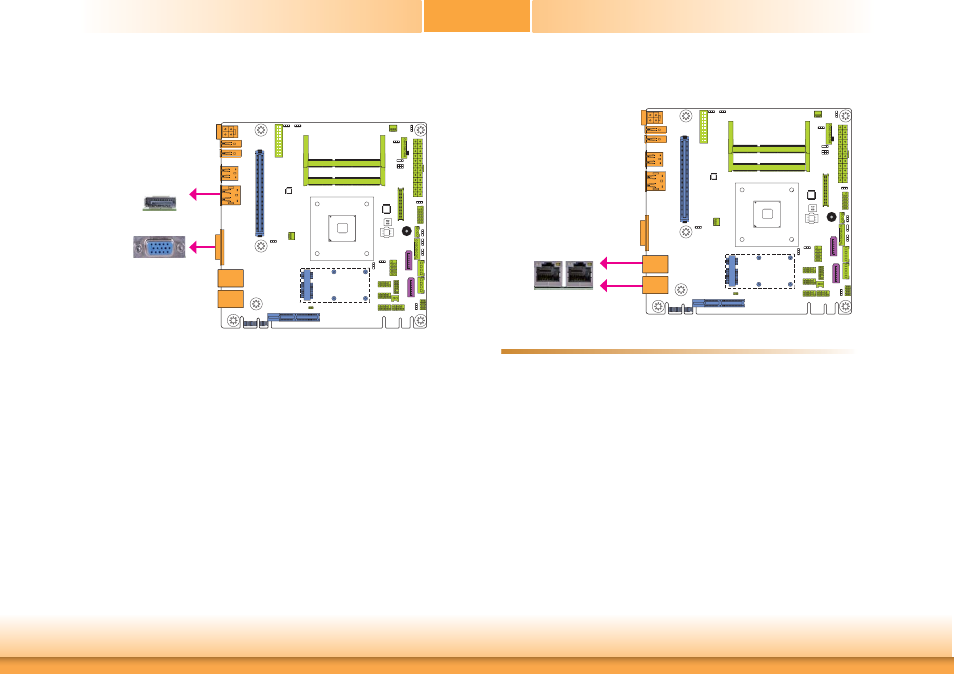

Chapter 2 Hardware Installation
Chapter 2
VGA
Graphics Interfaces
The display ports consist of the following:
• 1 VGA port
• 1 DisplayPort
VGA Port
The VGA port is used for connecting a VGA monitor. Connect the monitor’s 15-pin D-shell cable
connector to the VGA port. After you plug the monitor’s cable connector into the VGA port,
gently tighten the cable screws to hold the connector in place.
DisplayPort
The DisplayPort is a digital display interface used to connect a display device such as a com-
puter monitor. It is used to transmit audio and video simultaneously. The interface, which is
developed by VESA, delivers higher performance features than any other digital interface.
Driver Installation
Install the graphics driver. Refer to chapter 4 for more information.
RJ45 LAN Ports
LAN 1
Features
• 2 Intel ® I210 PCI Express Gigabit Ethernet controllers
The LAN ports allow the system board to connect to a local area network by means of a
network hub.
BIOS Setting
Configure the onboard LAN in the Advanced menu of the BIOS. Refer to chapter 3 for more
information.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.
LAN 2 LAN 1
LAN 2
DisplayPort
