2.6 Setting Position Limit Stops - PT60
Refer to Figure 2.3.
1. Loosen the Stop Adjusting Nut (pc# 8)
2. Turn the Stop Adjusting Screw (pc# 7) counterclockwise to back the screw away from the Worm Gear (pc# 19)
3. Place the valve disk in the full closed position (pointer will point to the full closed marking on the Gear Housing,
pc# 2)
4. Turn the Stop Adjusting Screw in the clockwise direction until the end of the screw contacts the Worm Gear
5. Tighten the Stop Adjusting Nut to secure the closed set position
6. Move the valve disk to the full open position
7. Follow steps 1 through 5
a CaUTIOn: If the valve is operated with an electric actuator/gear operator combination, and the valve is
position-seated, set the actuator limit switches to trip prior to engagement of the PT Worm Gear with the Stop
Screws. Damage to the operator could result from the Worm Gear contacting the Stop Screw under motorized
operation.
note: The stops are adjustable to +/- 5º of total travel to allow for proper positioning of the worm gear quadrant.

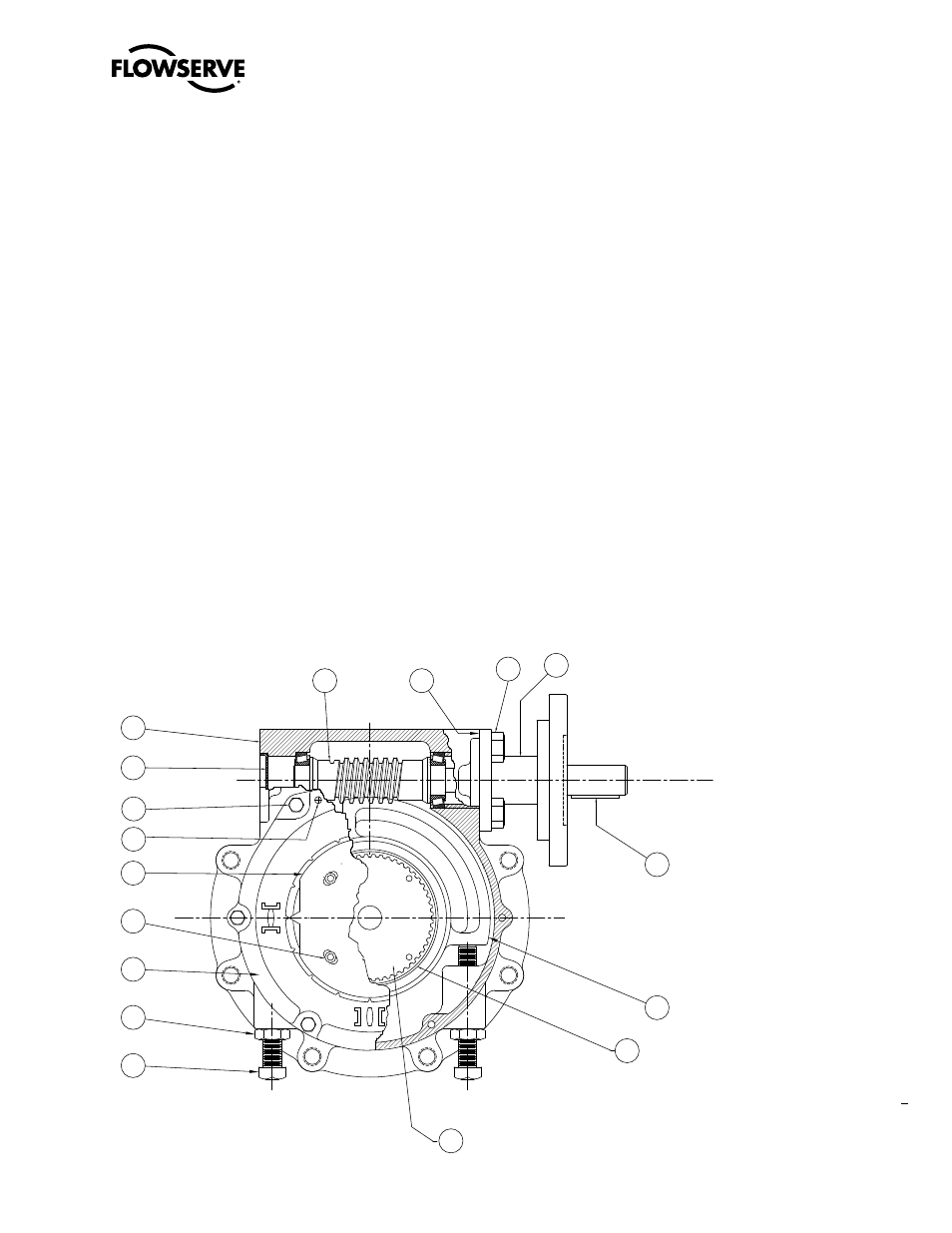

Figure 2.3 – Setting Position Limit Stops – PT60
7
8
11
10
12
6
2
18
19
4
15
17
3
20
1
9
21
