GAI-Tronics 379-001 Monitored Relay Module (MRM) Station User Manual
Page 2
Pub. 42004-714L2C
Model 379-001 Monitored Relay Module Station
Page: 2 of 9
f:\standard ioms - current release\42004 instr. manuals\42004-714l2c.doc
08/11
The Model 379-001 Monitored Relay Module (MRM) Station components are housed in a NEMA 4X
stainless steel enclosure measuring 13.0 W
× 14.3 H × 6.23 D inches. Components include a 12 V dc
power supply, a 12579-003 Monitored Relay Module, and two terminal blocks.
The 12579-003 Monitored Relay Module is comprised of three components: the 69613-001TR CPU and
the 69251-201TR Monitored-Input PCBA, and the 69252-001TR Relay PCBA. Refer to Figure 1 for
component locations.
The scope of this manual is limited to the mounting and wiring connections for the Model 379-001
Station. Refer to Pub. 42004-716L2 for additional information on the 12579-003 Monitored Relay
Module.

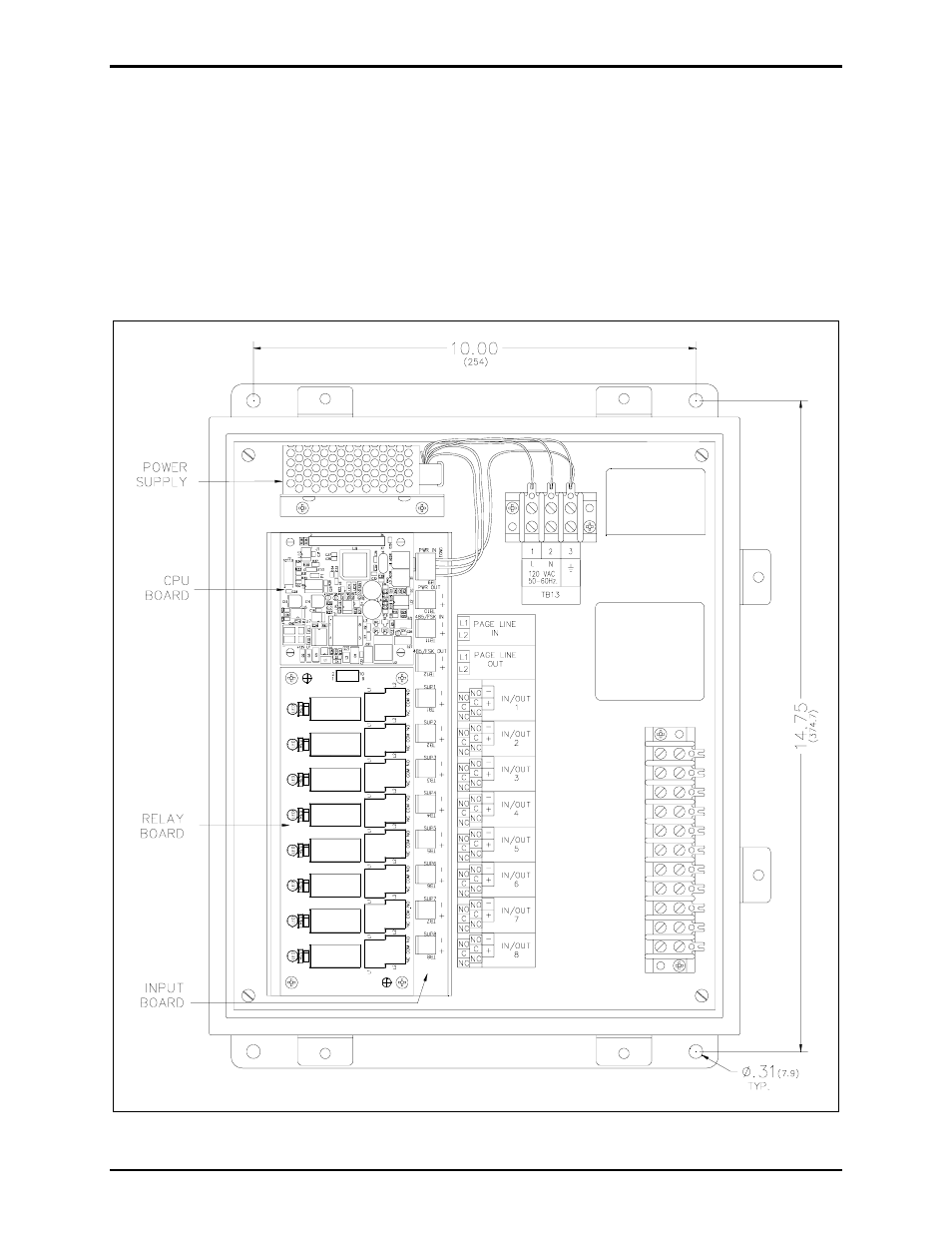

Figure 1. Model 379-001 MRM Station (Interior View)
