Description
Physical Description
The IDR1000A, when used in conjunction with a dc remote adapter located at the radio site, provides
remote dispatch and station control. For maximum range, the RF equipment is often located at a distant
radio tower, tall building or hilltop location apart from the location where radio calls originate and are
received. The desk set uses private leased telephone lines, or customer-owned metallic pairs that are
capable of supporting dc control currents. The unit can be placed on a flat surface or wall-mounted. All
connections are made inside the unit. The desk set is powered by a 10.5 to 16 V dc power source.
Desk Set Button Panel
Refer to the figure below for the locations of the buttons and LED on the desk set button panel.
F1
F2
TRANSMIT
MONITOR
CTL
IC
VOLUME
F3
F4
IDR1000
DC REMOTE

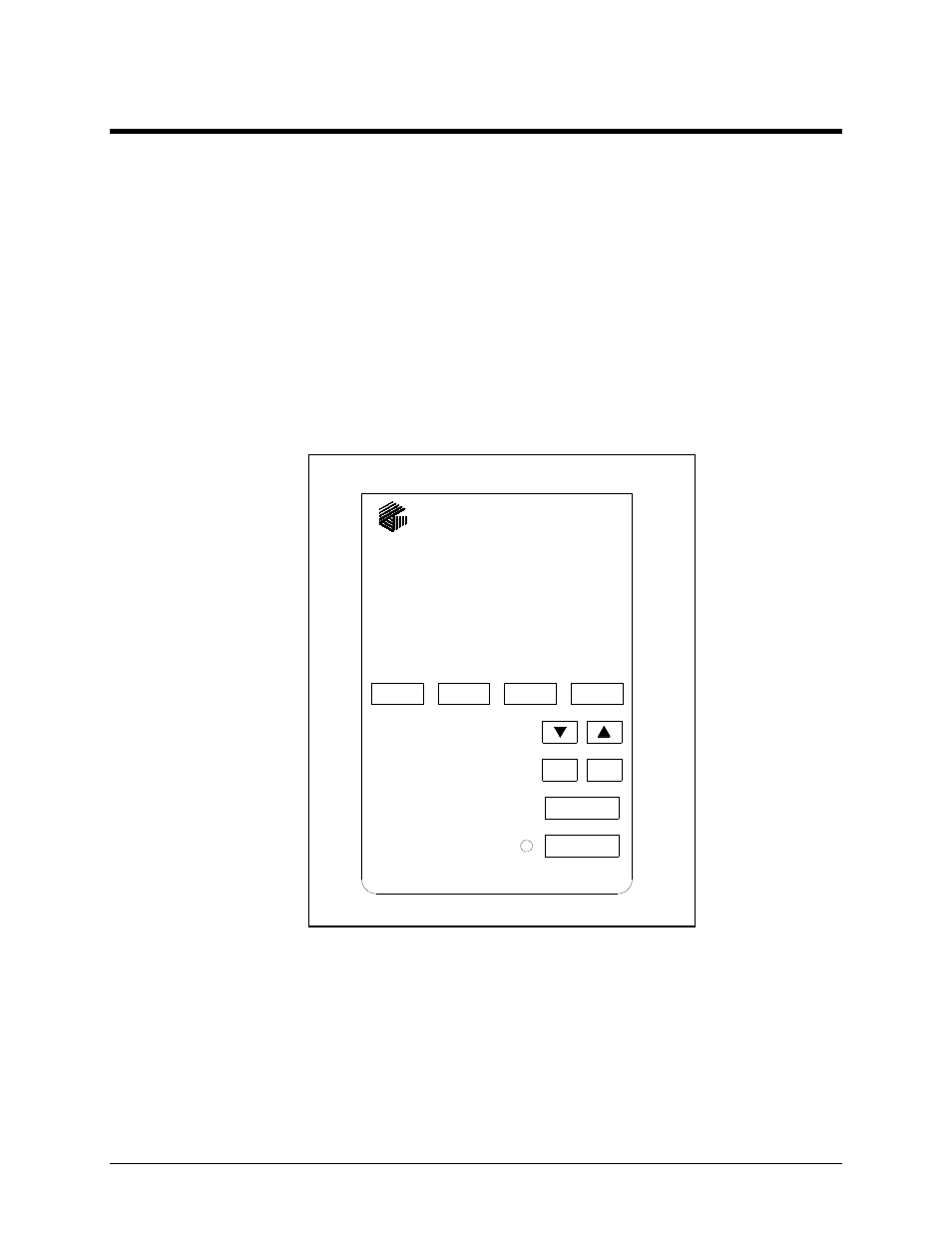

Front View – IDR1000A Remote Desk Set Button Panel
