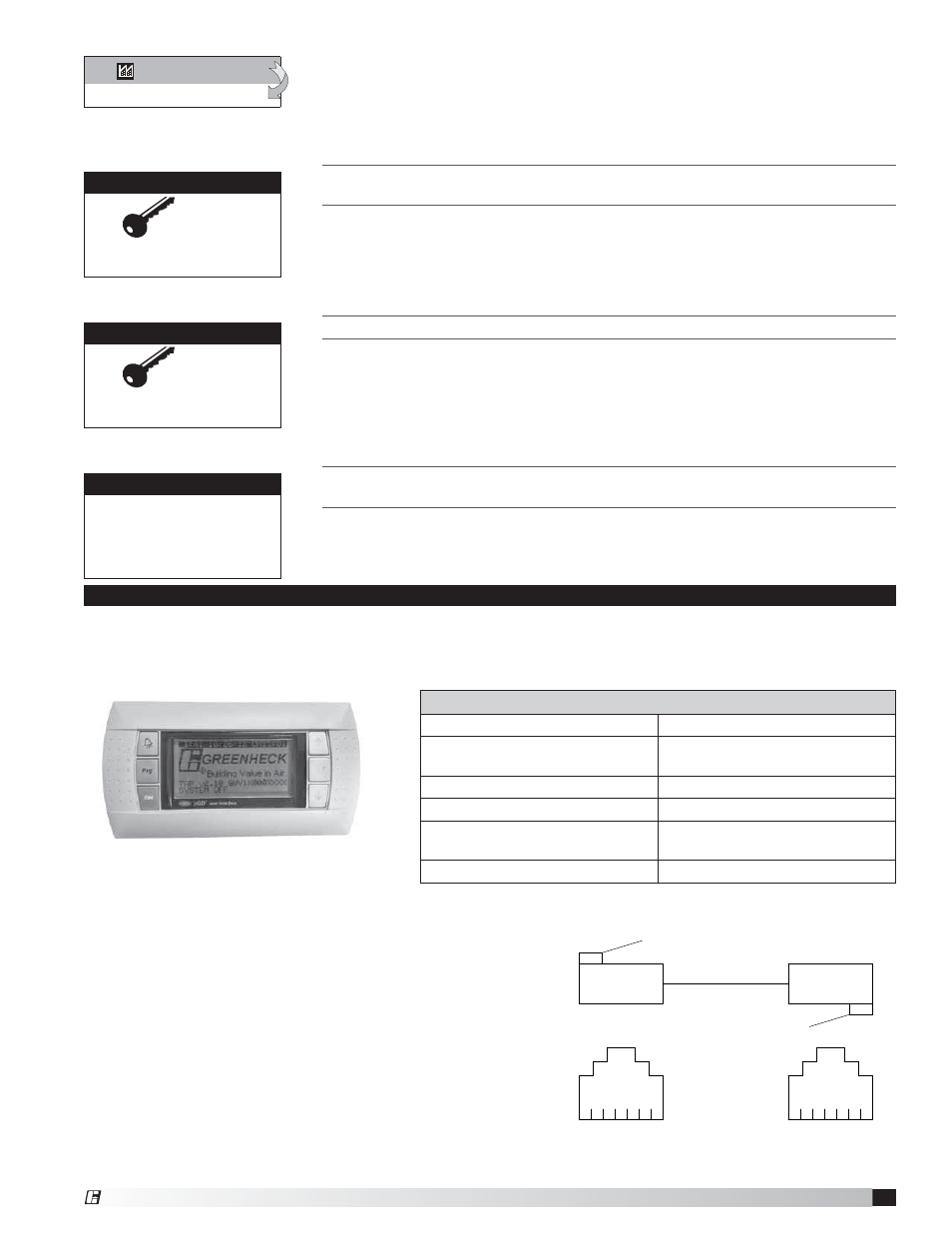

Greenheck Microprocessor Controller (475595 IOM) TAP v2.10 April 2014 (RVE, ERCH-01, ERT-01) - Manual (Page 35)

T
HIS SCREEN ALLOWS THE USER TO RESTORE BACK TO THE ORIGINAL
F
ACTORY
DEFAULT PARAMETERS .
Restoring to the original default parameters will result in a non-customized
controller. The user should not restore to these settings unless instructed by the
factory.
Initialization
DEFAULT INSTALLATION
Erase user settings and install
global default values:
No
The Initialization Menu allows the user to save and restore the controllers default
parameters. The controller can be restored with either the Manufacturer’s default
parameters from shipment, or an unconfigured factory default.
H. Manufacturer
d. Initialization
T
HIS SCREEN ALLOWS THE USER TO
SAVE
AND
RESTORE
THE FACTORY DEFAULT
PARAMETERS STORED IN MEMORY
.
The Factory Settings include the Factory default parameters and the unit setup
code. If the user would like to restore to these parameters, move the cursor to the
Restore position and change to YES.
Factory Settings
Save? No
Restore? No
T
HIS SCREEN ALLOWS THE USER TO CHANGE THE
M
ANUFACTURER
P
ASSWORD
(PW2)
New Password
Insert new manufacturer
password (PW2):
0000
Remote Display (pGD1)
The pGD1 is an optional remote display for use with Greenheck microprocessor controllers. The remote display
allows for remote monitoring and adjustment of parameters of the unit mounted controller. The remote display
allows identical access to menus and screens as the unit mounted controller display.
Specifications
Carel Model PGD1000W00
Power Supply
Power supplied from unit controller
through RJ25 cable
Max distance from unit controller 150 feet
Required Cable 6P6C RJ25/RJ12 Cable (straight)
Operating Conditions
-4°F to 140°F, 90%RH
(non-condensing)
Display Type Backlit LED with lighted buttons
Installation
The remote display connects to the unit mounted controller
through a six-wire RJ25 or RJ12 telephone cable (straight).
When ordered from the factory, a 10 ft. cable is provided with
the remote display. The display and cable can be used to
assist with start-up and maintenance.
Connecting Cable
If mounted remotely, the factory cable can either be extended
or replaced with a longer cable to obtain the necessary
distance. The resulting cable connections should be a “straight
through cable,” where pins on one end correspond identically
to the pins on the opposite end. If making your own cable, use
the same pin-out for each end.
1 2 3 4 5 6 1 2 3 4 5 6
35 DDC Controller for Tempered Air Products
®
