HD3070 with Manual Gas Console Product Configuration Manual 2-11
4
ORDERING PROCEDURE
Power
Supply
Ground Rod Work Table
Manual
Gas
Console
Plasma Gas
Shield Gas
5
1
2
6
Work Cable Between Power Supply and Work Table
023535 Cable, PS/Work Table, 15 Ft (4.6 m)
023536 Cable, PS/Work Table, 25 Ft (7.6 m)
023828 Cable, PS/Work Table, 39.4 Ft (12 m)
023537 Cable, PS/Work Table, 50 Ft (15 m)
023538 Cable, PS/Work Table, 75 Ft (23 m)
023539 Cable, PS/Work Table, 100 Ft (30 m)
Leads Between Power Supply and Manual Gas Csl
028887 Leads, PS/Man Gas Csl, 10 Ft (3 m)
028888 Leads, PS/Man Gas Csl, 25 Ft (7.6 m)
028889 Leads, PS/Man Gas Csl, 38 Ft (11.6 m)
028890 Leads, PS/Man Gas Csl, 50 Ft (15 m)
028891 Leads, PS/Man Gas Csl, 75 Ft (23 m)
028892 Leads, PS/Man Gas Csl, 100 Ft (30 m)
028893 Leads, PS/Man Gas Csl, 125 Ft (38 m)
028894 Leads, PS/Man Gas Csl, 150 Ft (46 m)
6
5

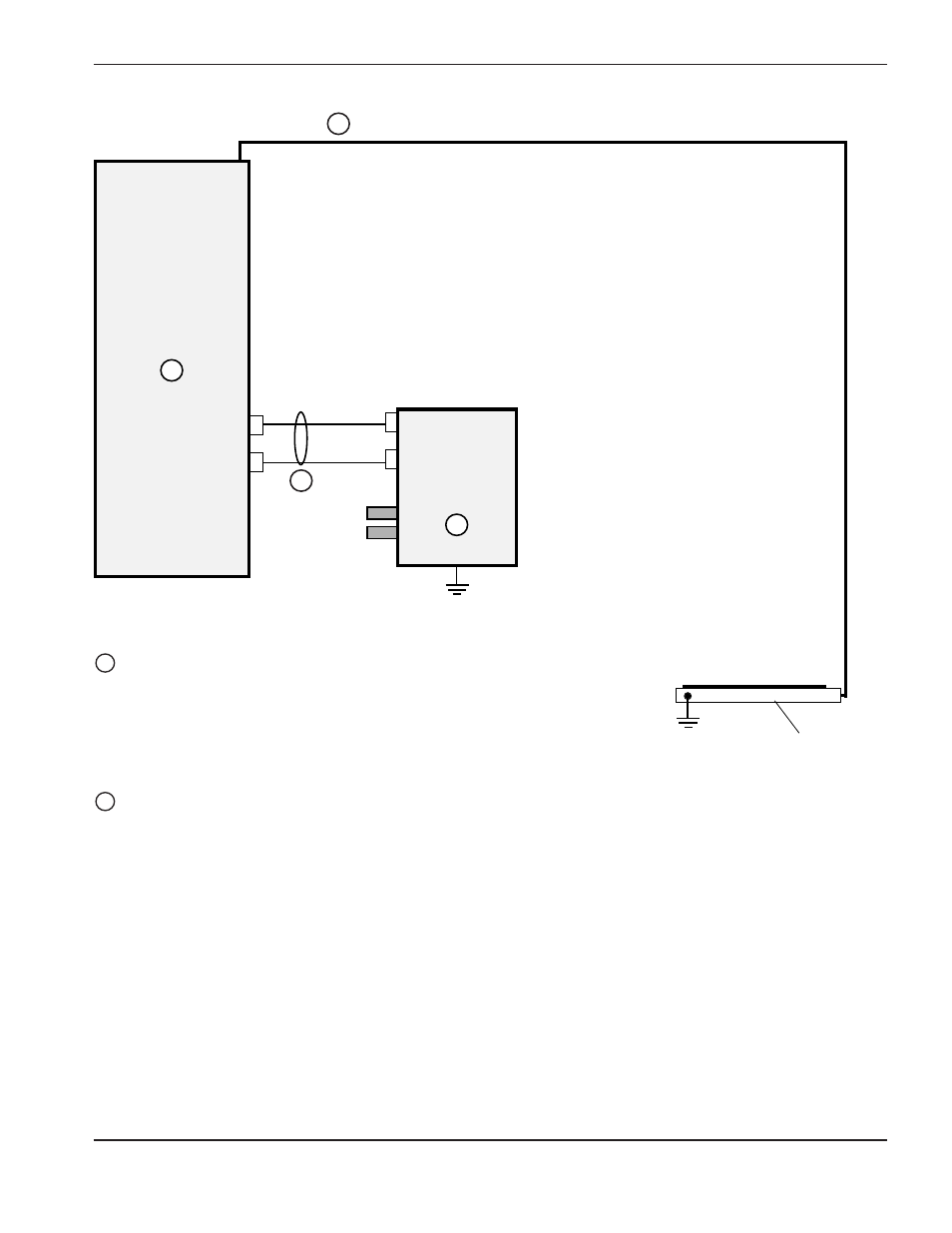

Figure 2-5 Work Cable, Leads Between Power Supply and Manual Gas Console
