SPECIFICATIONS
RHF Console
Dimensions and Weight:
Width ...........................................................12-5/8" w/hardware (321 mm)
Height ..........................................................13-1/2" (343 mm)
Depth ...........................................................6-1/2" (165 mm)
Weight .........................................................20 pounds (9 kg)
3
Figure 1-2

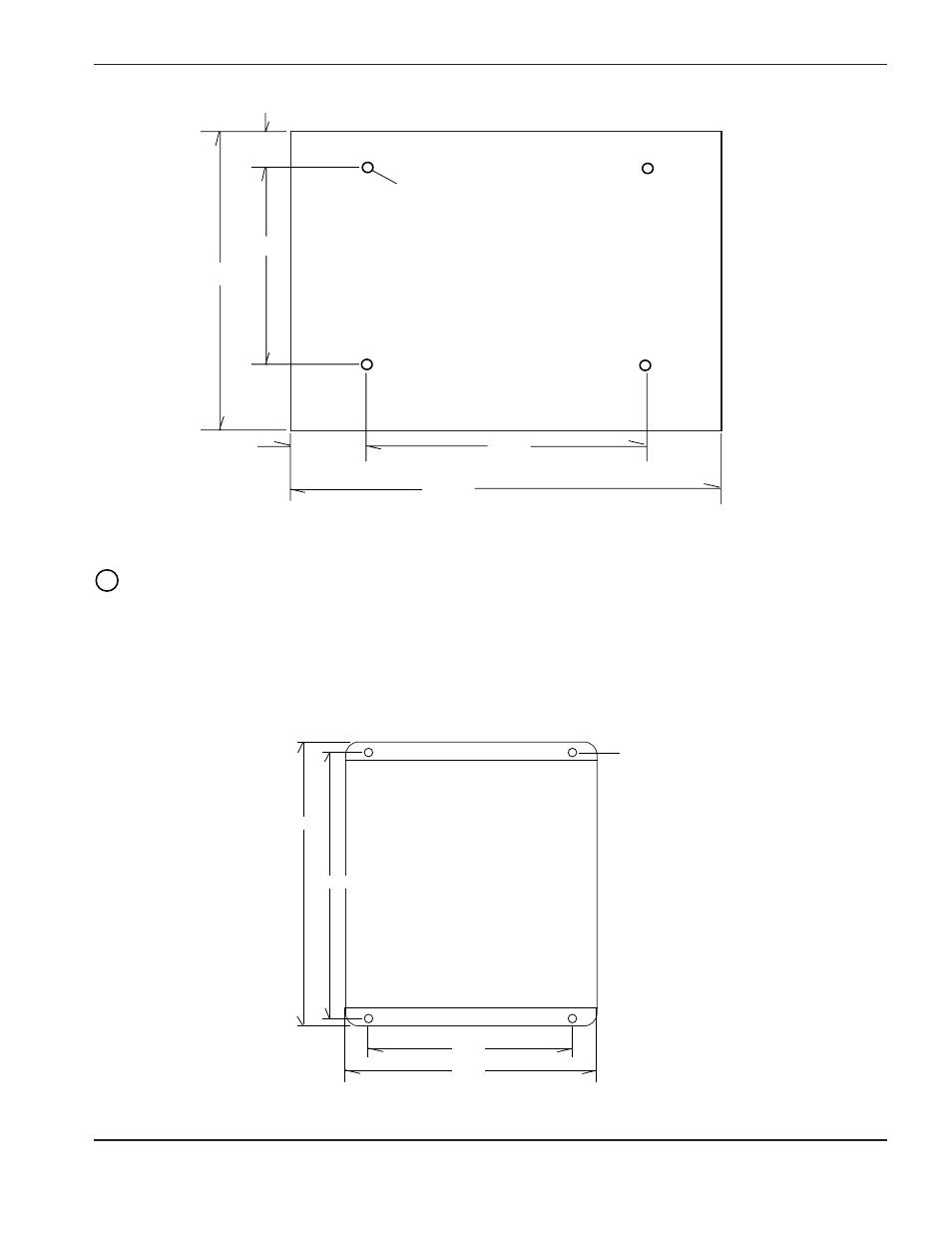

Mounting Dimensions – RHF Console
5/16 in.
dia.(4)
Figure 1-1
Mounting Dimensions – Manual Gas Console
1 in.
10 in.
2-1/2"
7-1/2"
12-1/2"
1/4-20
Threaded
Insert (4)
6 in.
FRONT
BACK
10 in.
12 in.
12-3/4"
13-1/2"
