6.1 Average model orientation of
dentulous and edentulous cases with
a rubber band

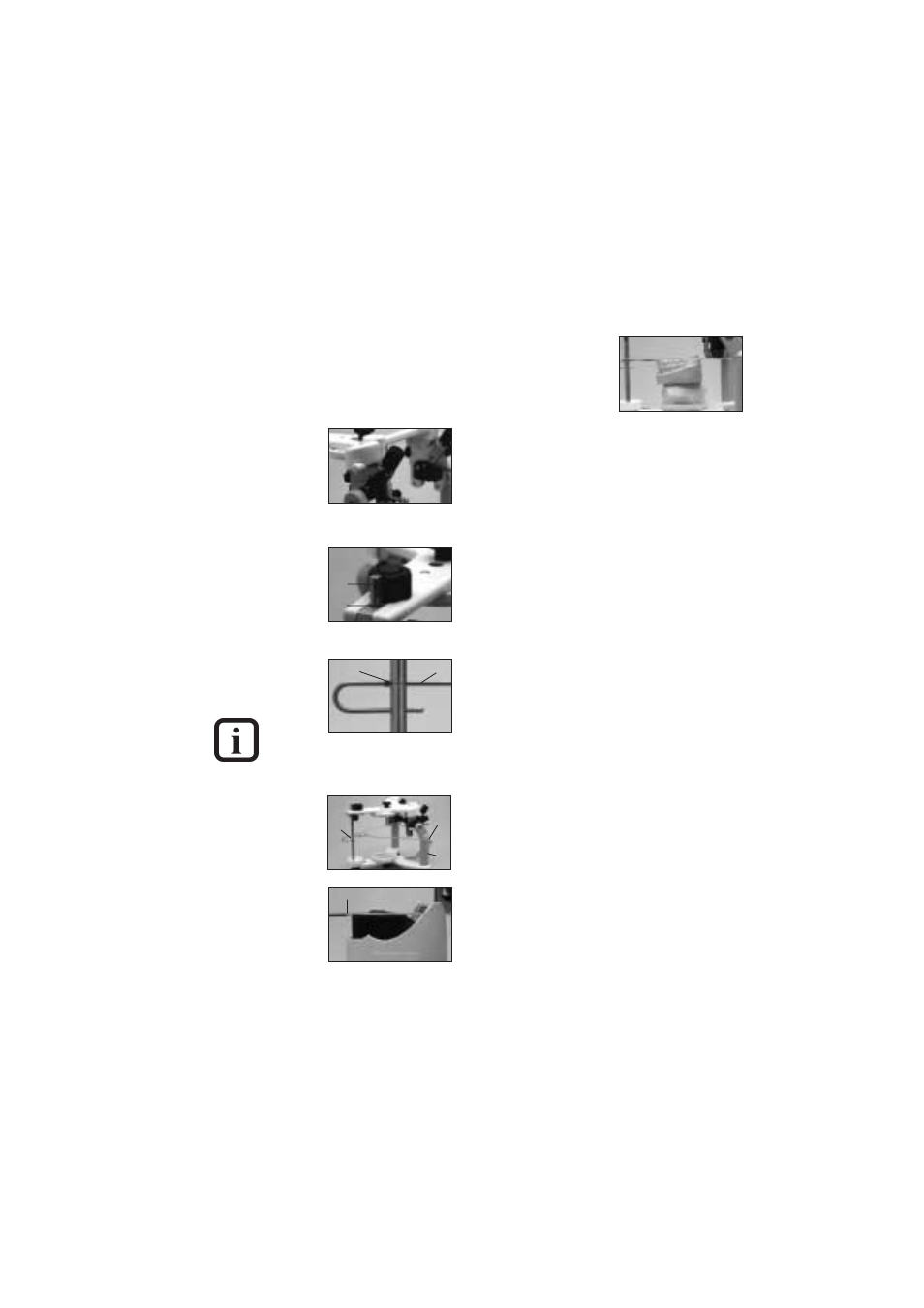

6.1.1 Return articulator to the initial set position
• Check if Bennett inserts
(3.1) are secured in
place.
• Mount centric
rubber bands (4.2).
• Bring centric fixation
lock (4.1) into the upper
position and secure in place.
• Secure incisal guide rod
(1.2) in the initial posi-
tion (red mark 1.6) of
the guide rod holder.
6.1.2. Incisal indicator (1.3)
Slide the incisal indicator
completely into the incisal
guide rod (1.2).
Insert the
longer part of
the incisal indicator (1.3) into the upper hole
(1.8) of the incisal guide rod (note notch in
the rod).
6.1.3 Next, attach the thin
rubber band to the incline
supports (2.4), notches
(2.5), and under the
longer part of the incisal
indicator (1.3).
6.1.4 Adjust occlusal plane
according to the rubber
band. Adjust mesial
contact area either
between the mandibular
central incisors or on the
wax bite block, according
to the tip of the incisal indicator (1.3).
Example: edentulous case
6.1.5 For best results, mount
mandibular model on
modelling material and
adjust. After that, cast
maxilliary model.
Example: dentulous case
6. Model Orientation in The Stratos 200
1.2
1.8 1.3
1.3
1.3
2.5
2.4
1.6
