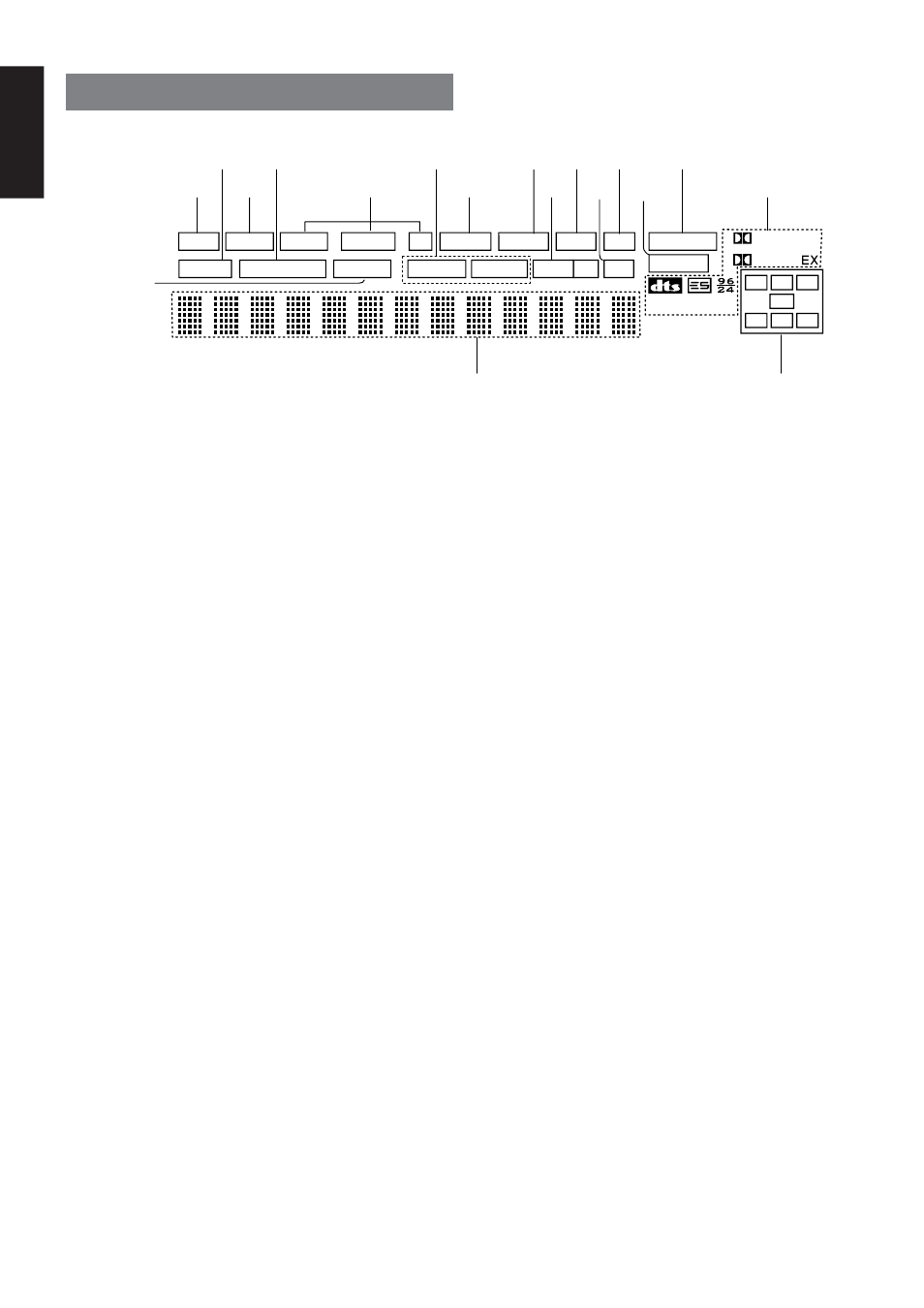

FL DISPLAY
¡0 PEAK indicator
This indicator is a monitor for an analog audio input signal. If the
selected analog audio input signal is greater than the capable level of
internal processing, this will light. If this happens, you should press the
ATT button.
¡1 EQ mode indicator
This indicator lights when the HT-EQ function is active.
¡2 ATT (Attenuation) indicator
This indicator lights when the attenuation function is active.
¡3 DIGITAL Input Indicator
This indicator lights when digital input has been selected.
¡4 ANALOG input indicator
This indicator lights when an analog input source has been selected.
¡5 SIGNAL FORMAT indicators
2 DIGITAL, EX, 2 SURROUND, dts, ES, 96/24, PCM
When the selected input is a digital source, some of these indicators
will light to display the specific type of signal in use.
¡6 ENCODED CHANNEL STATUS
indicators
These indicators display the channels that are encoded with a digital
input signal. If the selected digital input signal is Dolby Digital 5.1ch or
DTS 5.1ch, “L”, “C”, “R”, “SL”, “SR” and “LFE” will light up.If the digital
input signal is 2 channel PCM-audio, “L” and “R” will be displayed.
If Dolby Digital 5.1ch signal with Surround EX flag or DTS-ES signal
comes in, “L”, “C”, “R”, “SL”, “S” , “SR” and “LFE” will show.
¡7 Main Information Display
This display shows messages relating to the status, input source,
surround mode, tuner, volume level or other aspects of unit’s
operation.
¡8 DIRECT (Source direct) indicator
This indicator lights when the SR7300 is in the SOURCE DIRECT
mode.
DISP MULTI AUTO TUNED ST V – OFF NIGHT PEAK ANALOG
DIGITAL
ATT
SLEEP SURR AUTO DIRECT DISC 6.1 MT X 6.1 SPKR A B EQ
DIGITAL
SURROUND
PCM
L C R
SL S SR
LFE
¡8
¡7
g
s
a
¡6
h k ¡0 ¡2 ¡4 f
j l ¡1 ¡3 ¡5 d
a DISP (Display Off) indicator
This indicator lights when the SR7300 is in the display off condition.
s SLEEP timer indicator
This indicator lights when the seep timer function in main-room is in
use.
d Multi-room system indicator
This indicator lights when the multi-room system is active.
f AUTO SURR (Auto Surround mode)
indicator
This indicator illuminates to show that the AUTO SURROUND mode is
in use.
g TUNER’s indicators
AUTO : This indicator illuminates when the tuner’s Auto mode
is in use.
TUNED : This indicator illuminates when a station is being
received with sufficient signal strength to provide
acceptable listening quality.
ST(Stereo) : This indicator illuminates when an FM station is being
tuned in stereo condition.
h DTS-ES mode indicators (DISC6.1,
MTX6.1)
These indicators will show to DTS-ES decoding mode (Discret 6.1 or
Matrix 6.1).
j V (video)-OFF mode indicator
This indicator lights when the Video-OFF function is active.
k NIGHT mode indicator
This indicator lights when the SR7300 is in the Night mode, which
reduces the dynamic range of digital program material at low volume
levels.
l SPKR (speaker) AB indicator
Active speaker system will be shown by this indicator.
