15 Product Overview

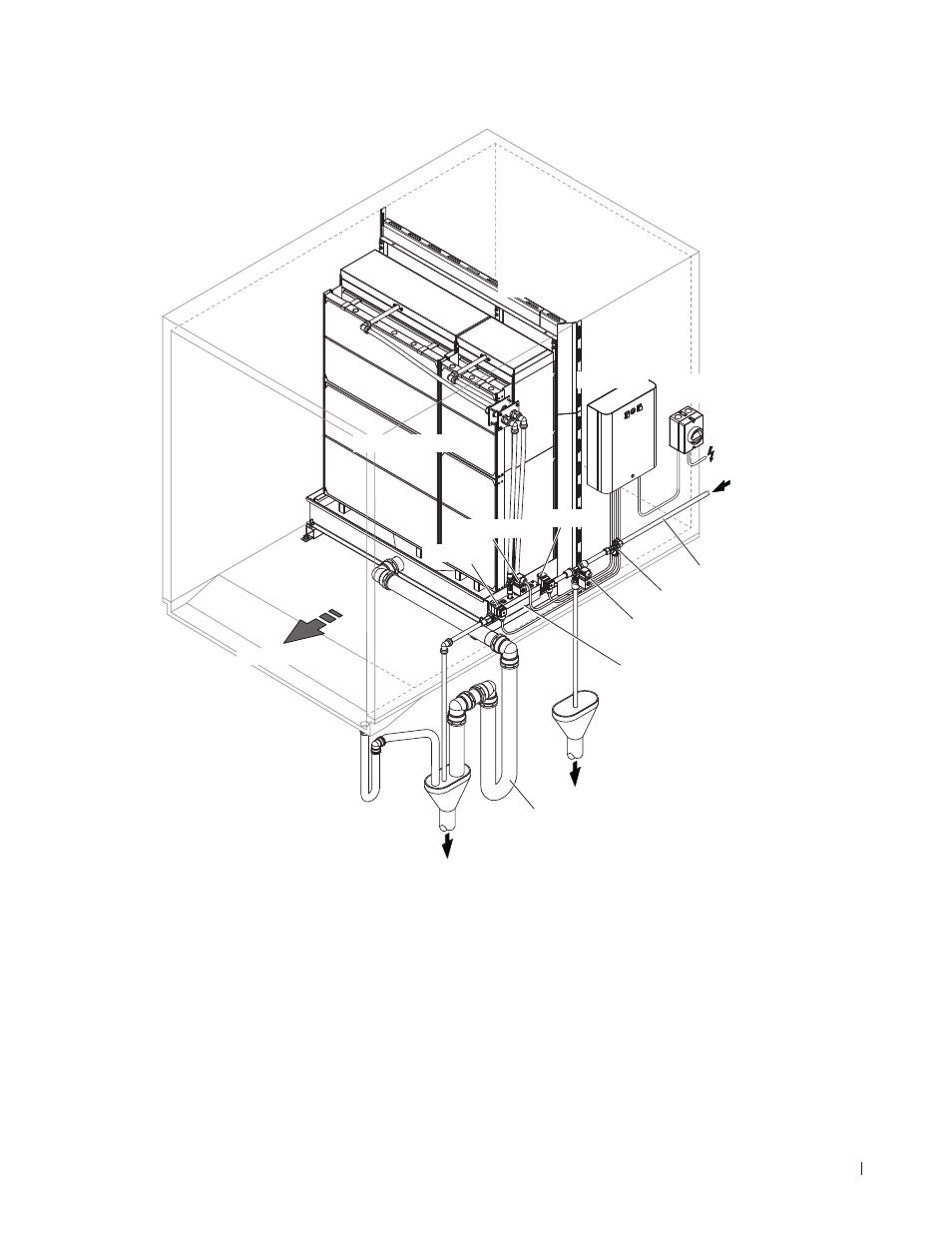

Fig. 6: Typical installation Nortec ME Direct Feed (external installation with optional valves)
Blanking plates
Hydraulic manifold (with
optional supply valve, drain
valve and stage valve)
Water supply line
Water drain line
Control unit Electrical
isolator
Air flow direction
AHU drain
with trap
Evaporative module
Purge valve
Drain valve
Stage valve
Supply valve
Shut-off valve
(not supplied)
3.4.2 Typical system Nortec ME Direct Feed (external installation)
