Rear – OpenEye VS201 User Manual

Page 15

Advertising
background image

30145AB

15

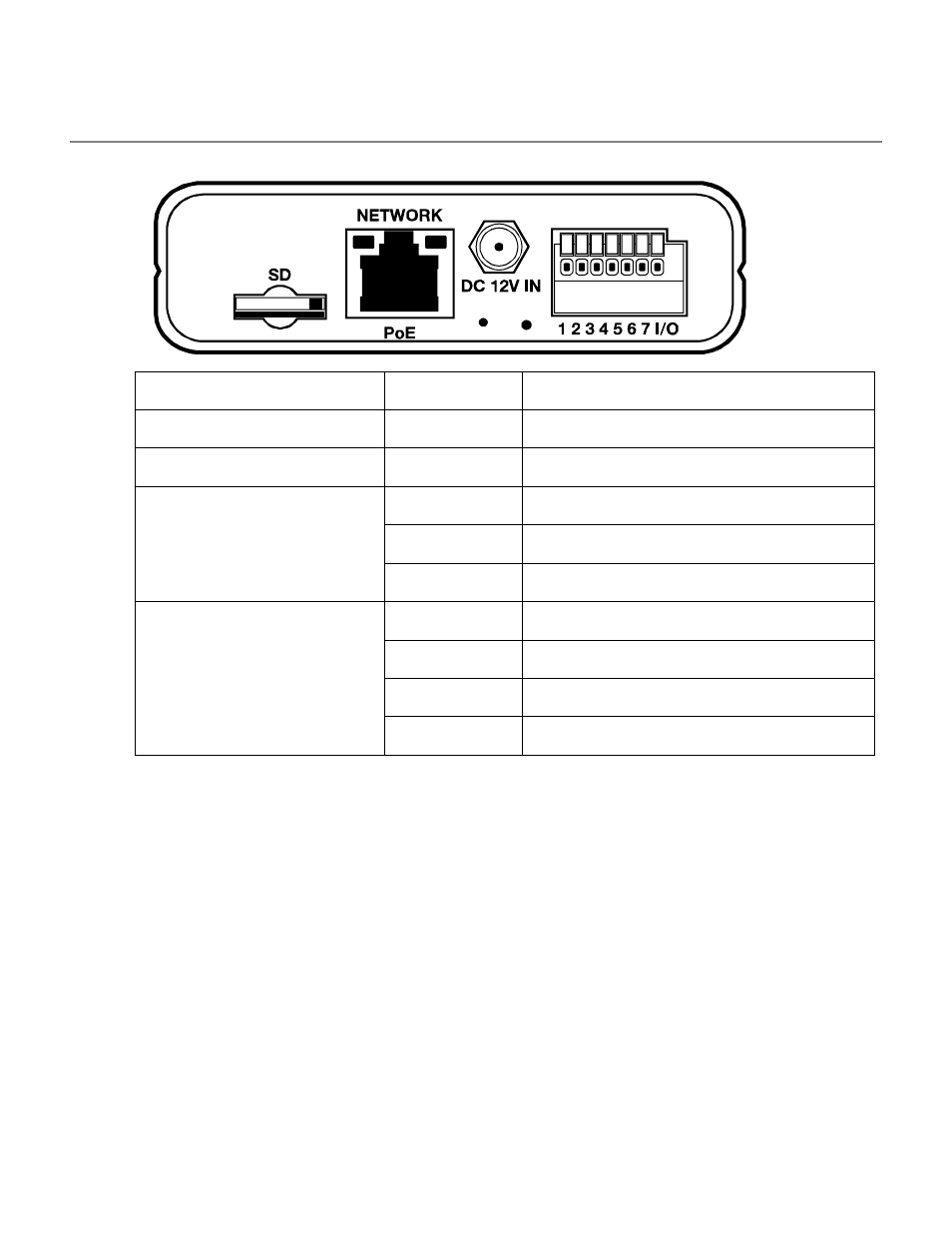

Rear

Connector

Pin

Definition

NETWORK / PoE

-

RJ-45 10/100 Mbps Ethernet / PoE

DC 12V IN

-

Power Input

RS-485

1

D+

2

D-

3

RS-485 GND

Alarm I/O

4

IN- (GND)

5

IN+

6

OUT-

7

OUT+
