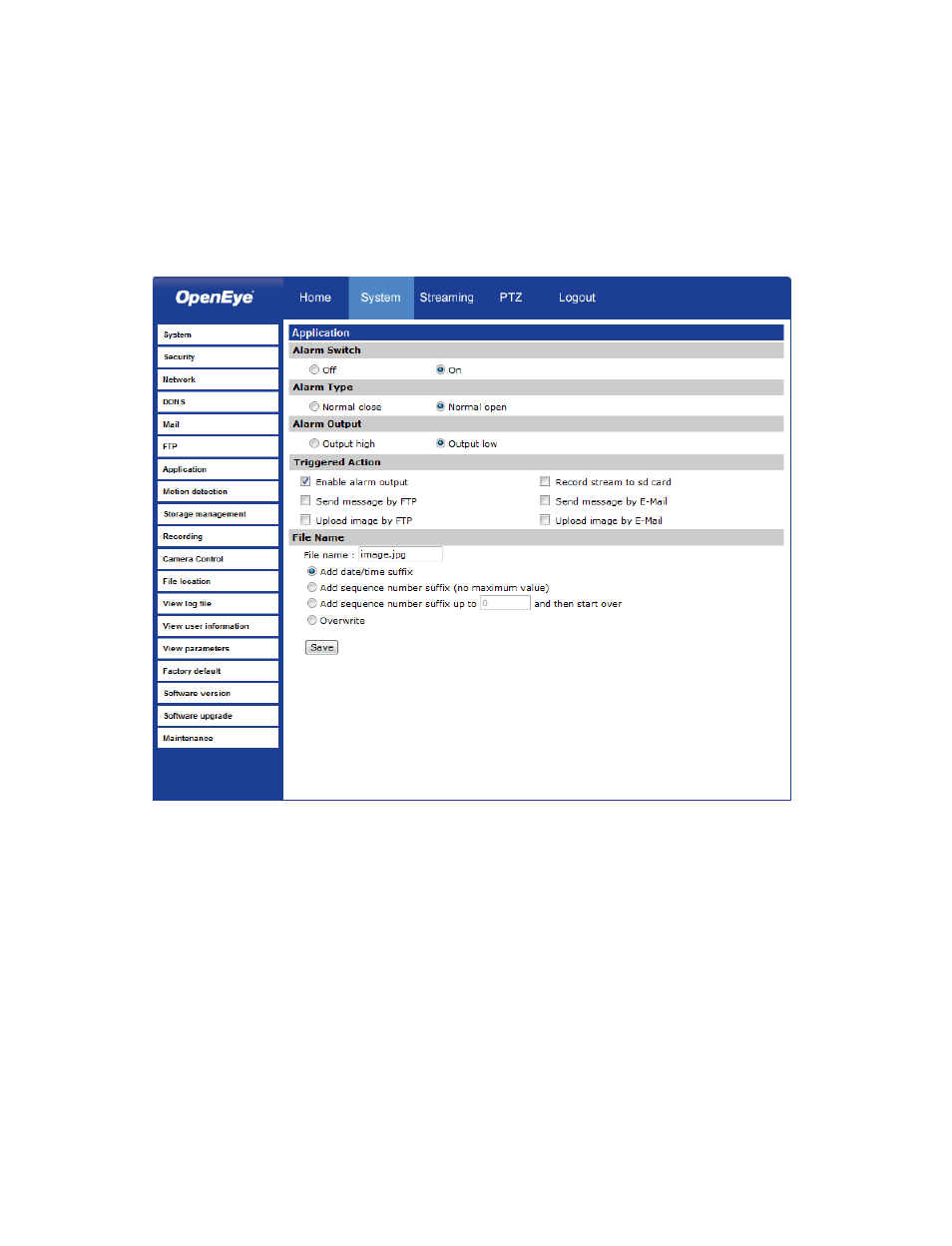

Application (Alarm Settings)
The video server is equipped with one alarm input and one alarm output to connect to an
alarm system to capture alarm images and notify an OpenEye recorder. Make sure the
alarm connections are properly wired before configuring alarm related settings on the
Application screen.
Alarm Switch
•
Alarm Switch – Enable or disable the alarm function.
•
Alarm Type – Select an alarm type, Normally closed or Normally open, that
corresponds with the alarm application.
•
Alarm Output – Define the alarm output signal as low (normally open) or high
(normally closed).
Triggered Action
Specify alarm actions that will take place when the alarm is triggered.
•
Enable Alarm Output – Select this option to activate the alarm output.
