SIERRA VIDEO
34

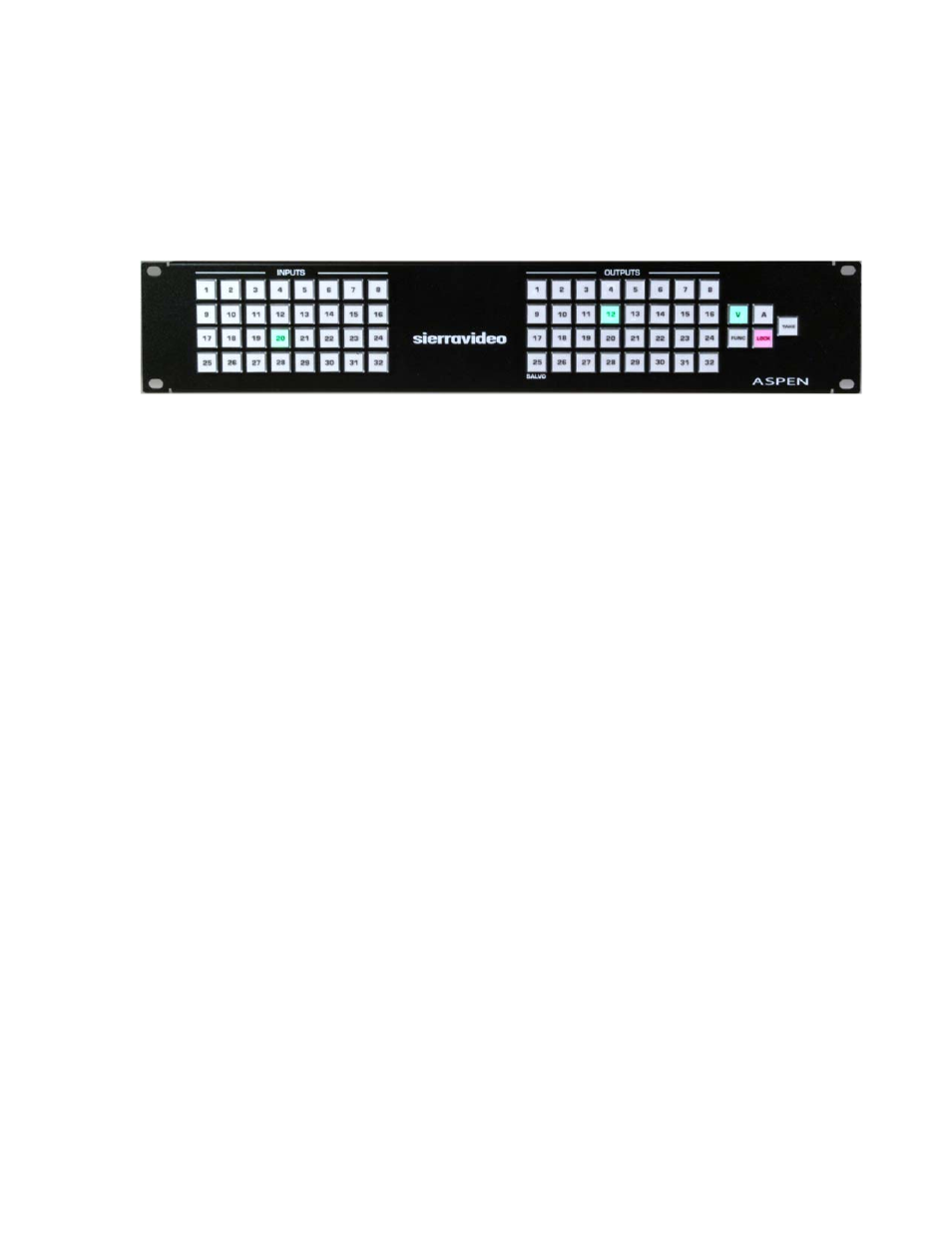

Local Control Panel Operation
The standard local control panel consists of, 32 inputs, 32 outputs (16 inputs, 16 outputs
for the 16x16 model), a “V” (video only) button, an “A” (audio only) button, a function, a
lock, and a take button. Use these features to switch between video and/or external
audio, select the output and input and access special functions.
Button Colors
 Take button will be blinking RED when enabled. Otherwise, it will be off.
 The FUNC button will be YELLOW in base operation.
 The LOCK button will be RED or PURPLE when the panel is locked.Otherwise, it
will be off.
 The V (video levels) button will be GREEN when selected. Otherwise, it will be
off.
 The A (audio levels) button will be BLUE when selected. Otherwise, it will be off.
