NVR 2.3 (V2.3.05.11) User’s Manual
Joystick

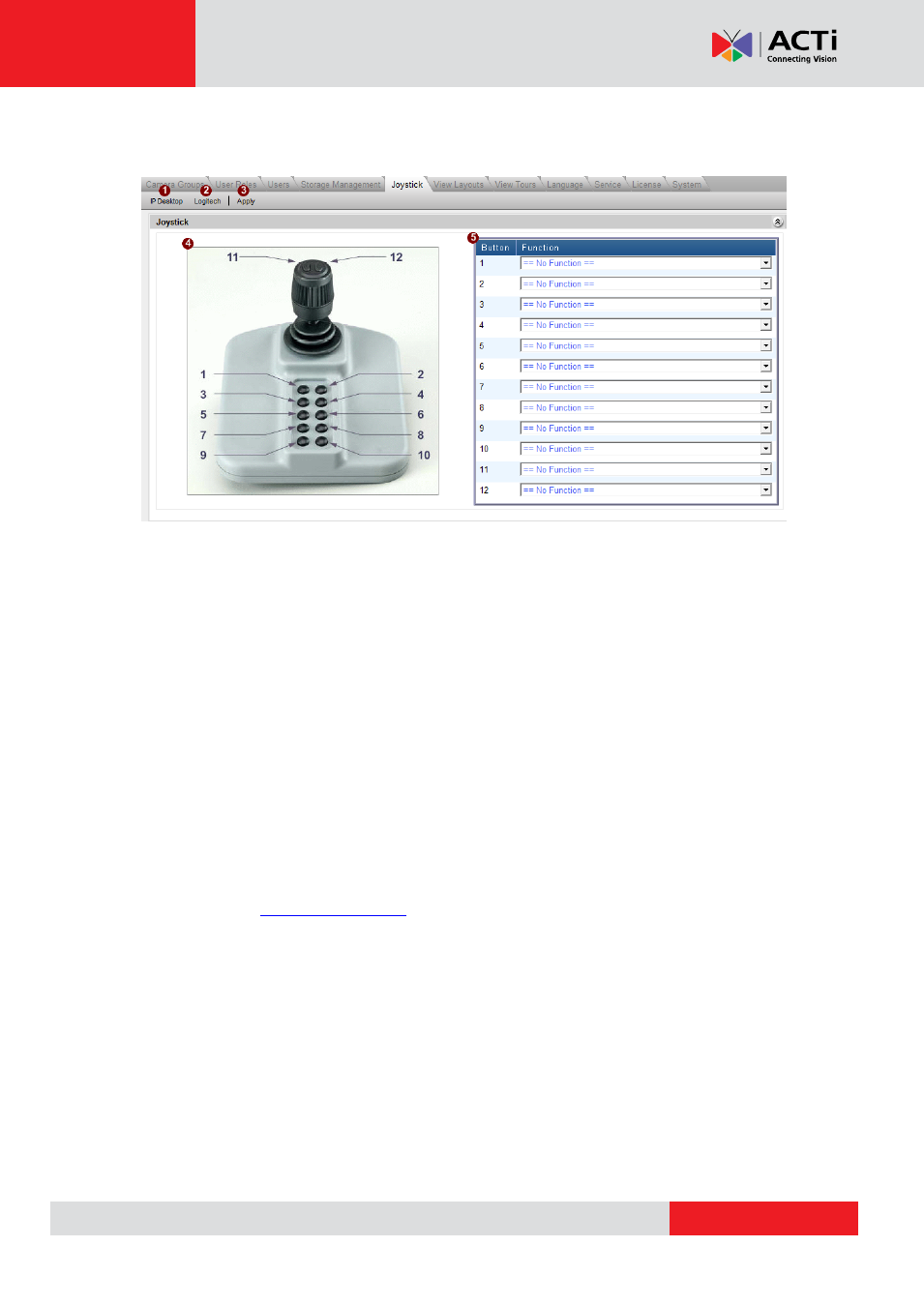

Fig. 45 System Setup - Joystick
1.
Select joystick of IP Desktop: NVR supports two joystick providers, IP
desktop/Logitech. Please select the correct model.
2.
Select joystick of Logitech: NVR supports two joystick providers, IP desktop/Logitech.
Please select the correct model.
3.
Apply: Confirm the settings after you
’ve configured the joystick.
4.
Joystick Picture: When any joystick is selected, user can see a representative picture of
the joystick here.
5.
Button setups: You may configure the joystick buttons to perform specific actions.
Please the dropdown list in the next page for details.
Other joysticks are also supported, but they may not offer 3-dimentional operation. The user
may need to define zoom in and zoom out with specific buttons. USB joystick shown here may
be obtained from
or other online distributors.
Note:
1. Joystick Setup is available only through workstation and not available through
web client.
2. Please always connect the joystick to PC before you run NVR.
