NVR 2.3 (V2.3.05.11) User’s Manual
90
Active Monitor
Active Monitor is the interface where you see the live views from your cameras. It is where
most of the security professionals access the surveillance system. Aside from keeping an eye
on the video, you may also cycle through View layouts, drag and drop various cameras to the
screen, review a log of events, take snapshots, control PTZ cameras, start or stop recording on
a given channel, trigger Digital output and broadcast or talk to specific cameras.
First we provide an overview of the UI elements, and then we describe the functions in each
section.
Overview

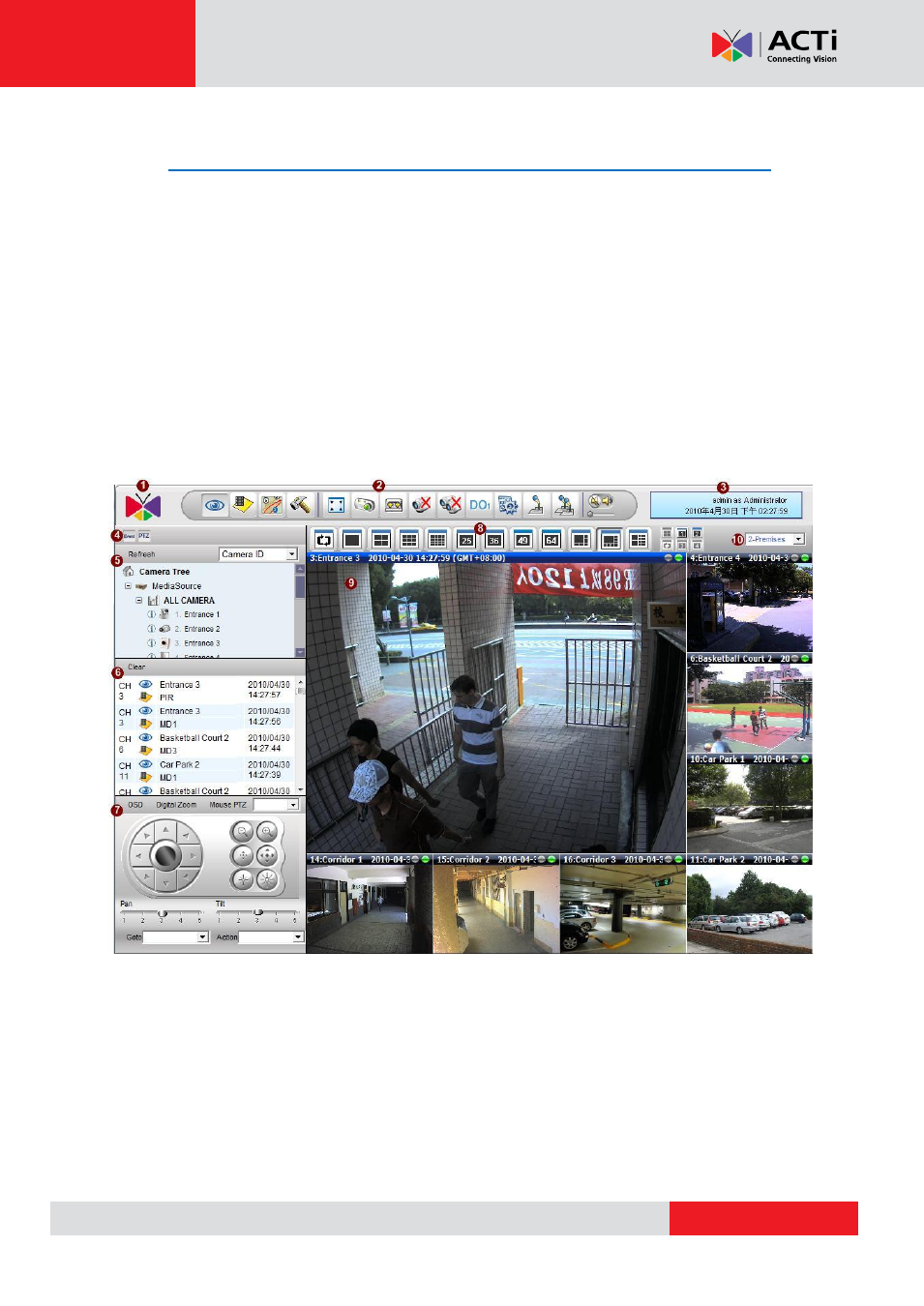

Fig. 69 Active Monitor
1. About Us: Click on the logo to bring up the About Us dialog box which contains software
version, system information, technical support, knowledge base and other details about
the software.
2. Active Monitor Toolbar: Contains buttons to operate in Active Monitor application
3. Personal Profile: Click on this to bring up Personal Profile settings; you may change the
password for the current user.
