8

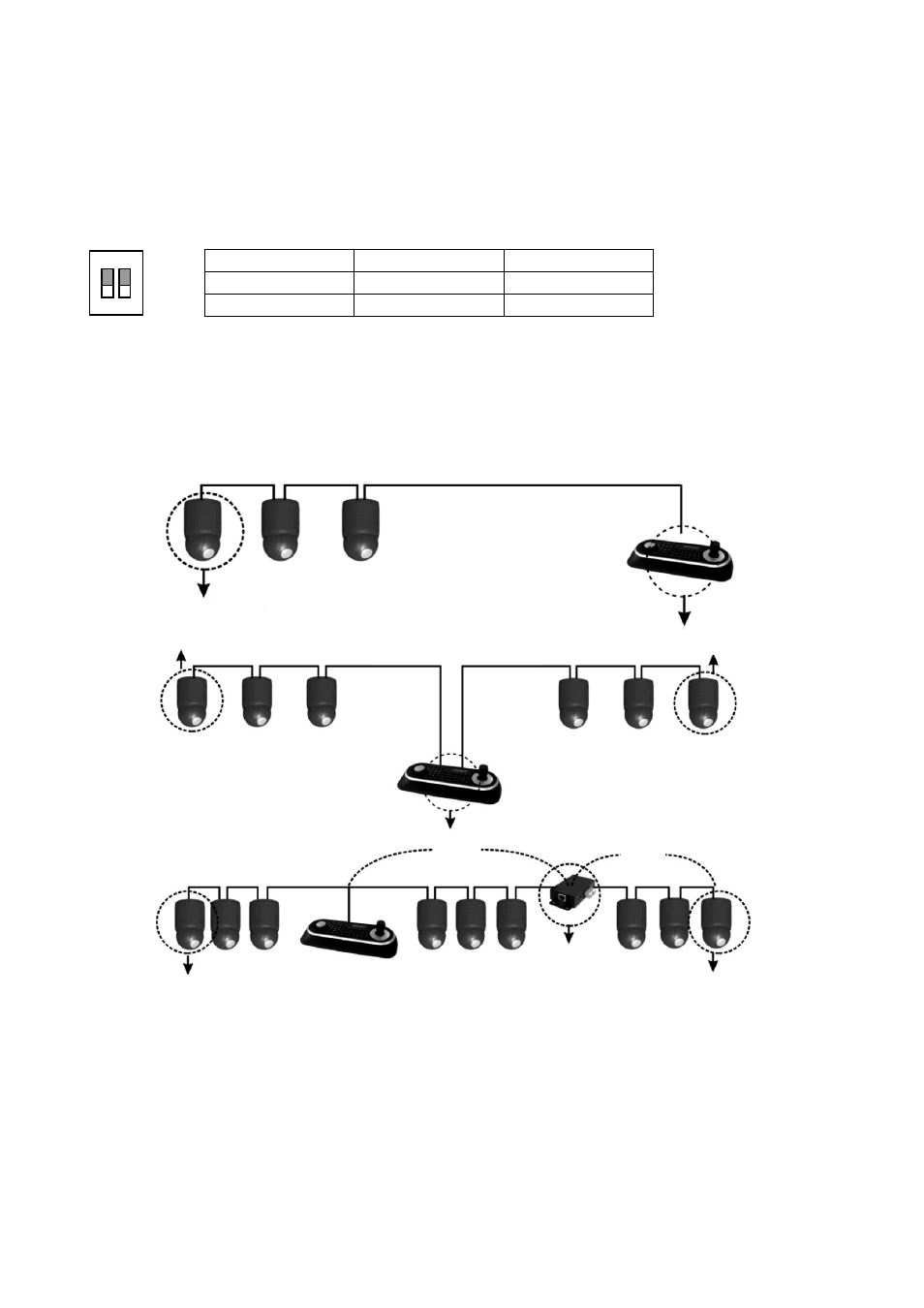

Figure 8 - Termination Diagram
Cable for communication
Termination ON
Termination ON
Termination ON
.km
Repeater/Splitter
Input termination ON
Output termination ON
Dome  Port Dome  Port
Termination ON
Termination ON
Termination ON
Cable for communication Cable for communication
Cable for communication
Termination ON
.km
3.4 Fail-safe Network
When you control the dome by the other device not own keyboard, some error may be existed in the serial communication. The reason is caused by the other
device without the fail-safe network.
At this time, you solve the problem to set this DIP switch to ON of the nearest dome from the other device only.
SW2 1 2
ON PULL-UP PULL-DOWN
OFF NONE NONE
Figure 7 - Setting Dome Camera Termination
1 2
ON
SW2
