7.4 Route Manager
Note: The Audio Route Manager requires the audio option (LGK-3901-OPT-AUD or DSK-3901-OPT-AUD) to be
enabled and the software to be at version 3.0 or higher.

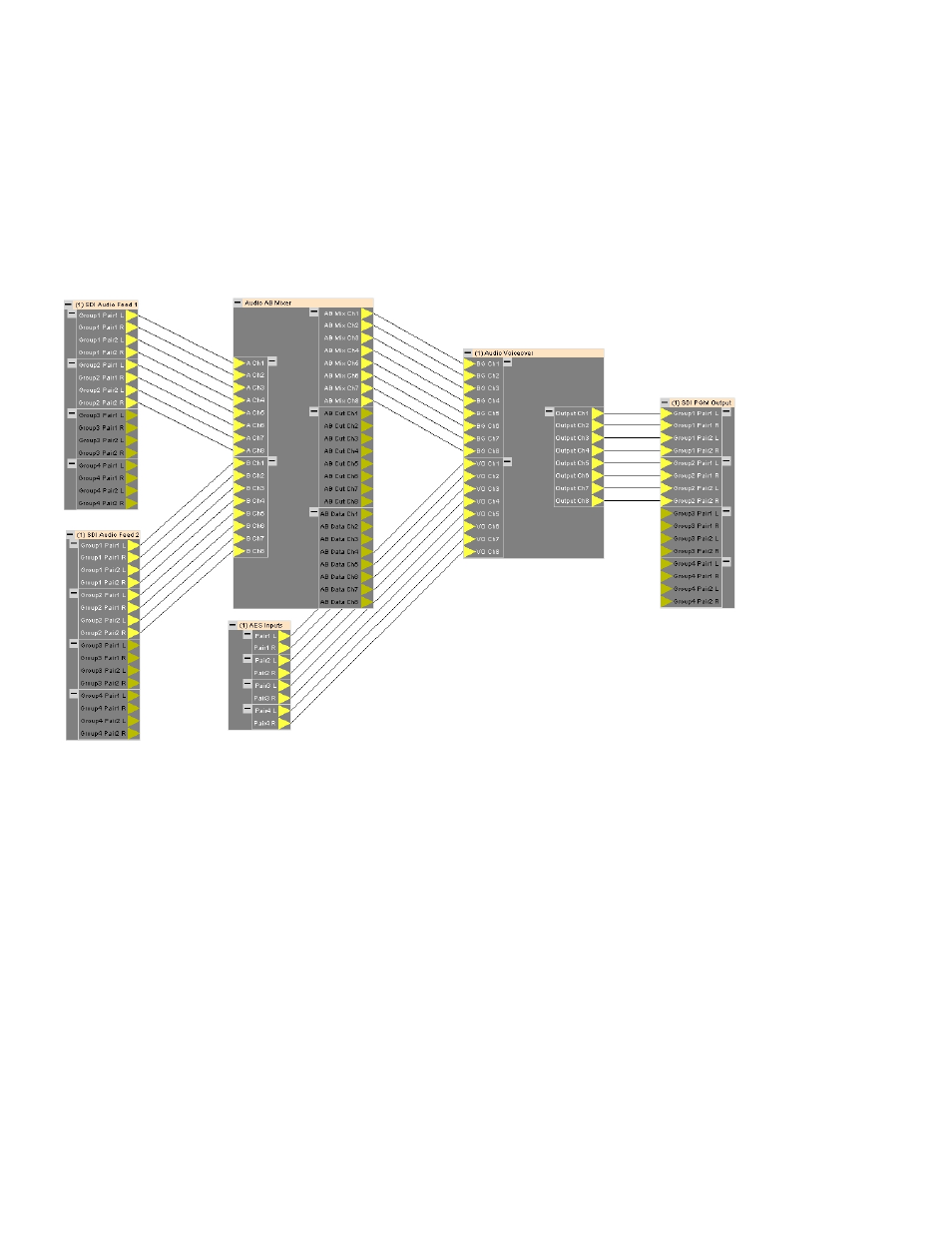

The Route Manager tab is used to graphically define all routing within the audio mix engine. This is achieved by the
user dragging audio blocks onto the Audio Route Manager view and connecting up appropriate pins between input
mixer, delay and output blocks.
A range of different example route manager templates are supplied as starting points for creating custom audio
setups. These are described in detail via the LGK-3901/DSK-3910 Web Page (see section 8.7).
The following audio block types are supported by LGK-3901/DSK-3901:
•
Inputs (section 7.4.1)
• Audio Mix Blocks
(section 7.4.2)
• Audio Delay Banks
(section 7.4.3)
•
Outputs (section 7.4.4)
