Checking Color Data
EDIUS - Reference Manual
Example:
Measure the luminance with waveform to check if it is within the appropriate range

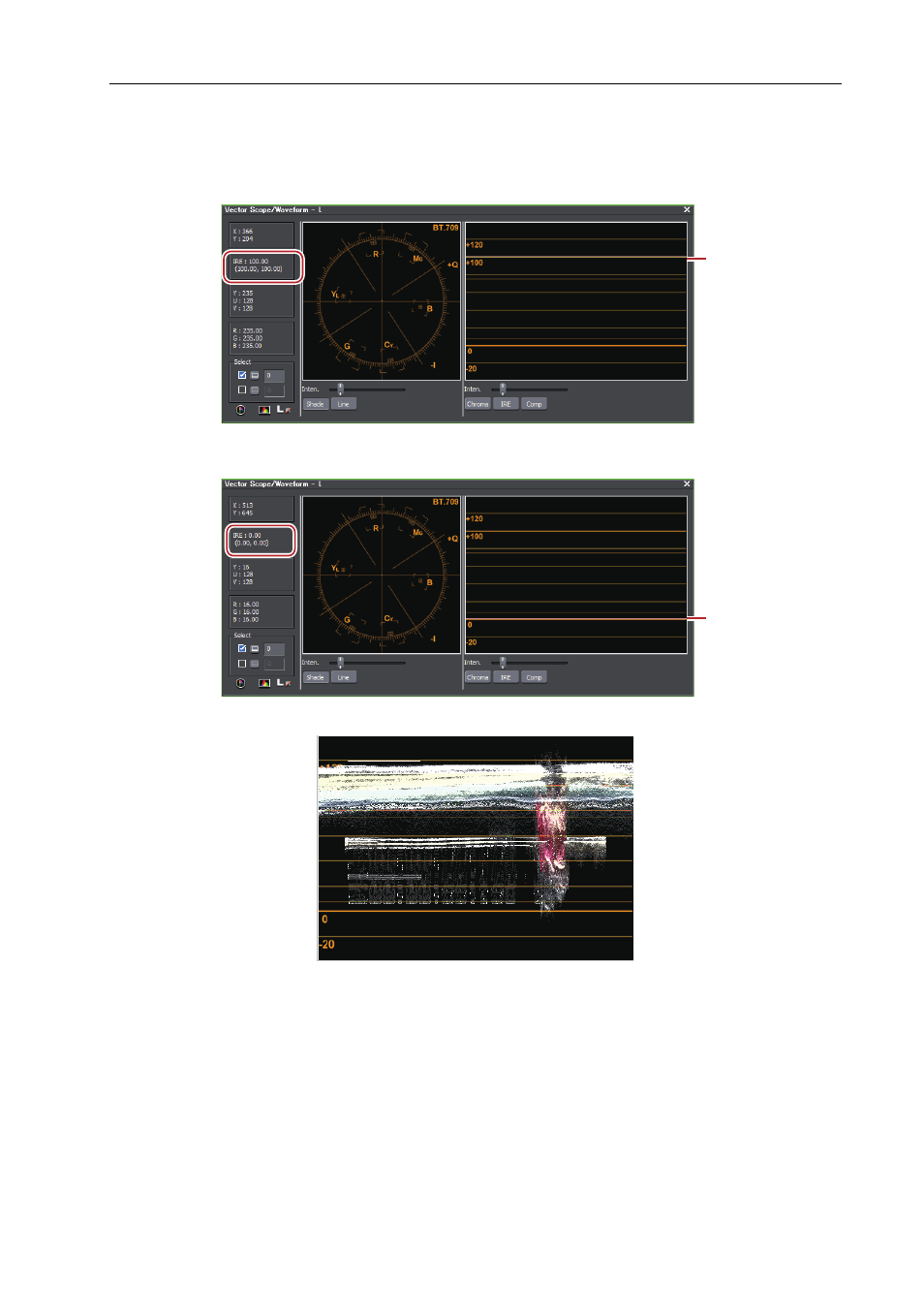

When you place a white color matte clip created in the safe color range on the timeline and measure it in the [Vector
Scope/Waveform] dialog box, IRE100 appears (at the position of (1)).
Color Matte Clips 0 P184
In the case of black color matte clips created in the safe color range, IRE0 appears. (at the position of (2)) Adjustment
is not necessary when IRE is a minus value.
If the luminance is high, the following screen is displayed.
If the luminance is low, the following screen is displayed.
(1)
(2)
