IOXM Extended Status Data

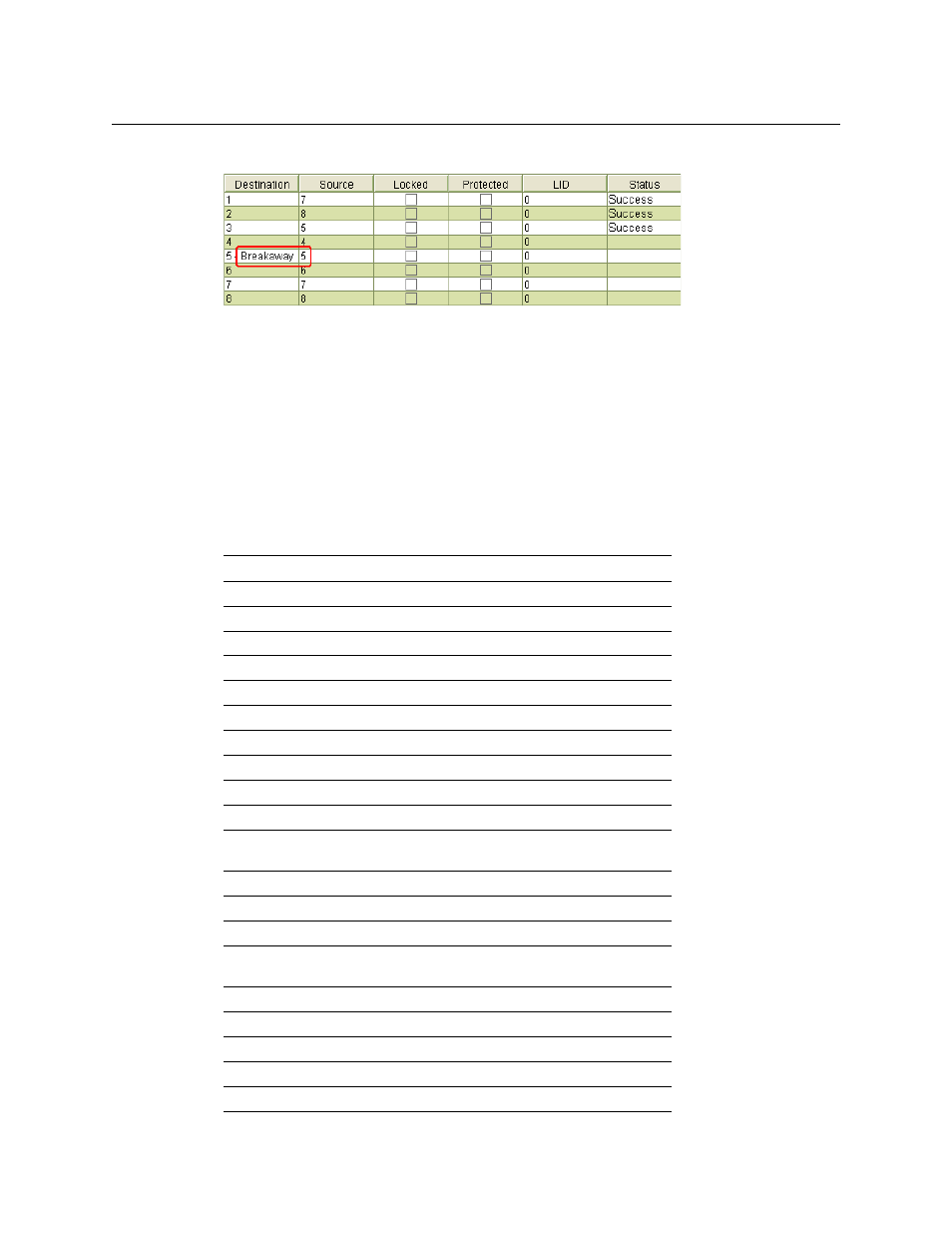

Taking input 16 to port 10 causes a breakaway, with respect to the stereo port:
For breakaway not to be present here, either the pair 9 and 10 or the pair 15 and 16 must have
been routed to the output pair 9 and 10.
IOXM Extended Status Data
The following table represent the data that can appear in the ‘Individual Module Status’ section
of MRC’s ‘Module Status’ page.
Module Types
Not all modules provide extended status. These are the modules that do:
Inputs
EM0687 AES async, 9-input
EM0783 Standard, 3Gig, 9 -input, coax
EM0783 Standard, 3Gig, 9 -input, coax, for NV8144
EM0783 Standard, HD, 9-input, coax
EM0814 Hybrid disembedder, 3Gig, 8-input, coax
EM0814 Hybrid 3Gig, 8 Video, 1 MADI, coax
EM0902 Standard, 3Gig, 9 -input, coax
EM0902 Standard, 3Gig, 9 -input, coax, for NV8144
EM0902 Standard, HD, 9-input, coax
EM0903 Hybrid disembedder, 3Gig, 8-input, coax
EM0903 Hybrid 3Gig, 8 Video, 1 MADI, coax
Outputs
EM0688 AES async, 18-output
EM0785 Standard, 3Gig, 18 -output, coax
EM0815 Hybrid embedder, 3Gig, 16-output, coax
Crosspoints
EM0662 Standard 288×288 crosspoint, 3Gig
EM0676 Standard 288×288 redundant crosspoint, 3Gig
EM0799 Standard 144×144 crosspoint, 3Gig
EM0819 Hybrid 144×144 crosspoint, 3Gig
EM0894 Standard 144×144 crosspoint, 3Gig
