52
Configuring Routers
Output Attributes Page

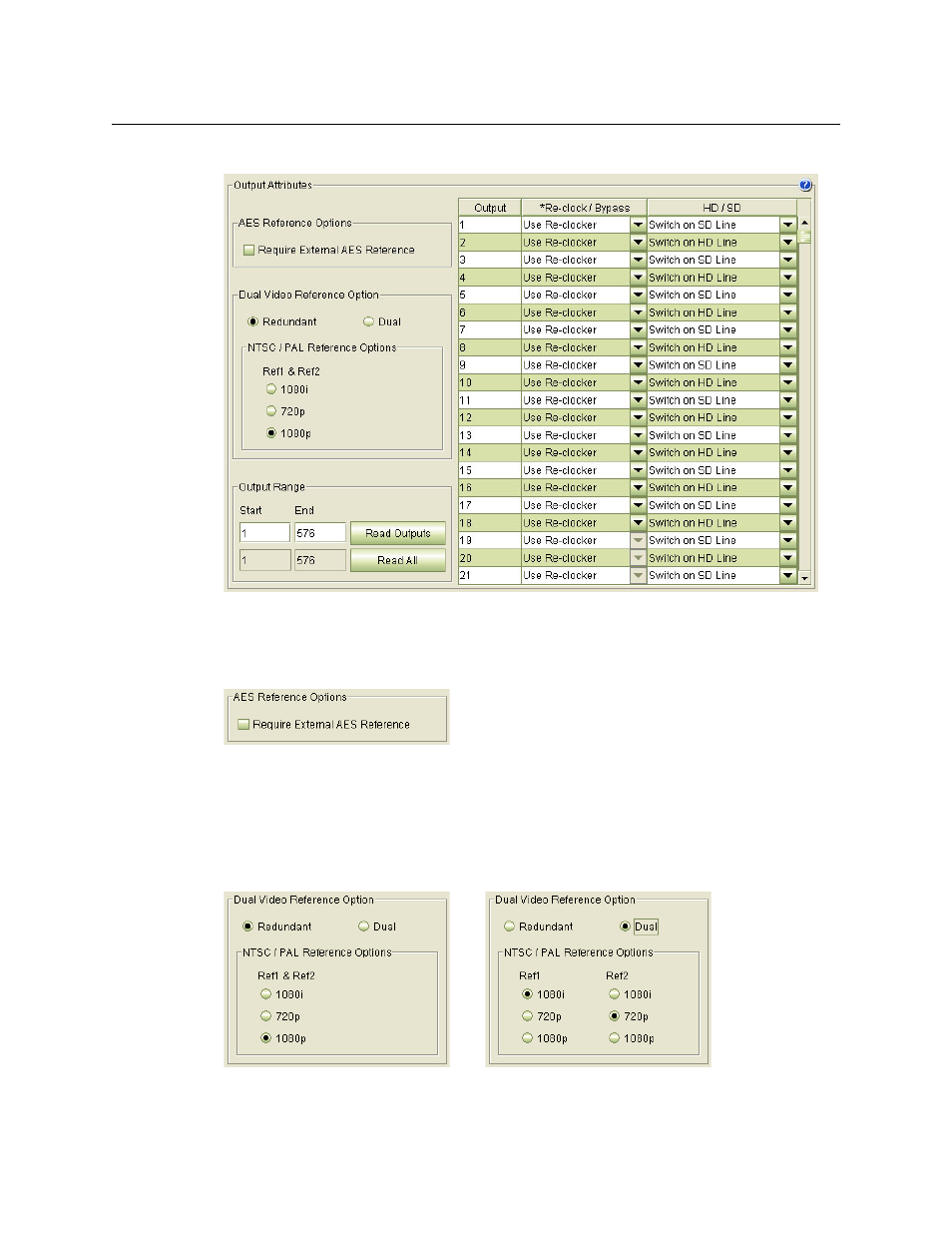

This is a sample showing the data for an NV8280:
AES Reference Options
A check in the checkbox in this region means that an external AES reference must be present for
proper switching. If the box is unchecked, an external AES is not required:
If an AES reference is not present, the router uses its video reference. For NV8500 series routers,
an external AES reference is generally not required.
Dual Video Reference Options
In this region of the page, you can choose between redundant or dual video reference. The
contents of the region differ, depending on which you choose:
Redundant Reference Dual Reference
