7 Dimensions
YASKAWA ELECTRIC TOBP C730600 27B V1000 Option PS-V10 Installation Manual 33
Table 12 Dimensions (U.S. units)
Note: The weight value includes the weight of the 24 V Power Supply Option.
Voltage
Class
Model
CIMR-V
Dimensions (in)
Weight
(lb)
W H D W1 W2 W3 H1 H2 H3 D1 D2 D3 t1
Single-
Phase 200 V
Class
BA0006B 4.3 5.0 5.4 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
BA0010B 4.3 5.0 6.1 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.8 0.2 4.4
BA0012B 5.5 5.0 6.4 5.0 1.3 1.2 4.7 0.2 4.6 2.6 2.4 2.9 0.2 5.7
BA0018B 6.7 5.0 7.1 6.2 1.3 1.2 4.7 0.2 4.6 2.6 2.4 2.9 0.2 7.0
Three-Phase
200 V Class
2A0008B 4.3 5.0 5.1 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
2A0010B 4.3 5.0 5.1 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
2A0012B 4.3 5.0 5.4 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
2A0018B 5.5 5.0 5.6 5.0 1.3 1.2 4.7 0.2 4.6 2.6 2.4 2.9 0.2 5.7
2A0020B 5.5 5.0 5.6 5.0 1.3 1.2 4.7 0.2 4.6 2.6 2.4 2.9 0.2 5.7
Three-Phase
400 V Class
4A0001B 43 5.0 3.2 3.8 1.3 1.2 4.7 0.2 4.6 0.4 2.4 0.7 0.2 2.6
4A0002B 4.3 5.0 3.9 3.8 1.3 1.2 4.7 0.2 4.6 1.1 2.4 1.4 0.2 3.1
4A0004B 4.3 5.0 5.4 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
4A0005B 4.3 5.0 6.1 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
4A0007B 4.3 5.0 6.1 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
4A0009B 4.3 5.0 6.1 3.8 1.3 1.2 4.7 0.2 4.6 2.3 2.4 2.6 0.2 4.2
4A0011B 5.5 5.0 5.6 5.0 1.3 1.2 4.7 0.2 4.6 2.6 2.4 2.9 0.2 5.7

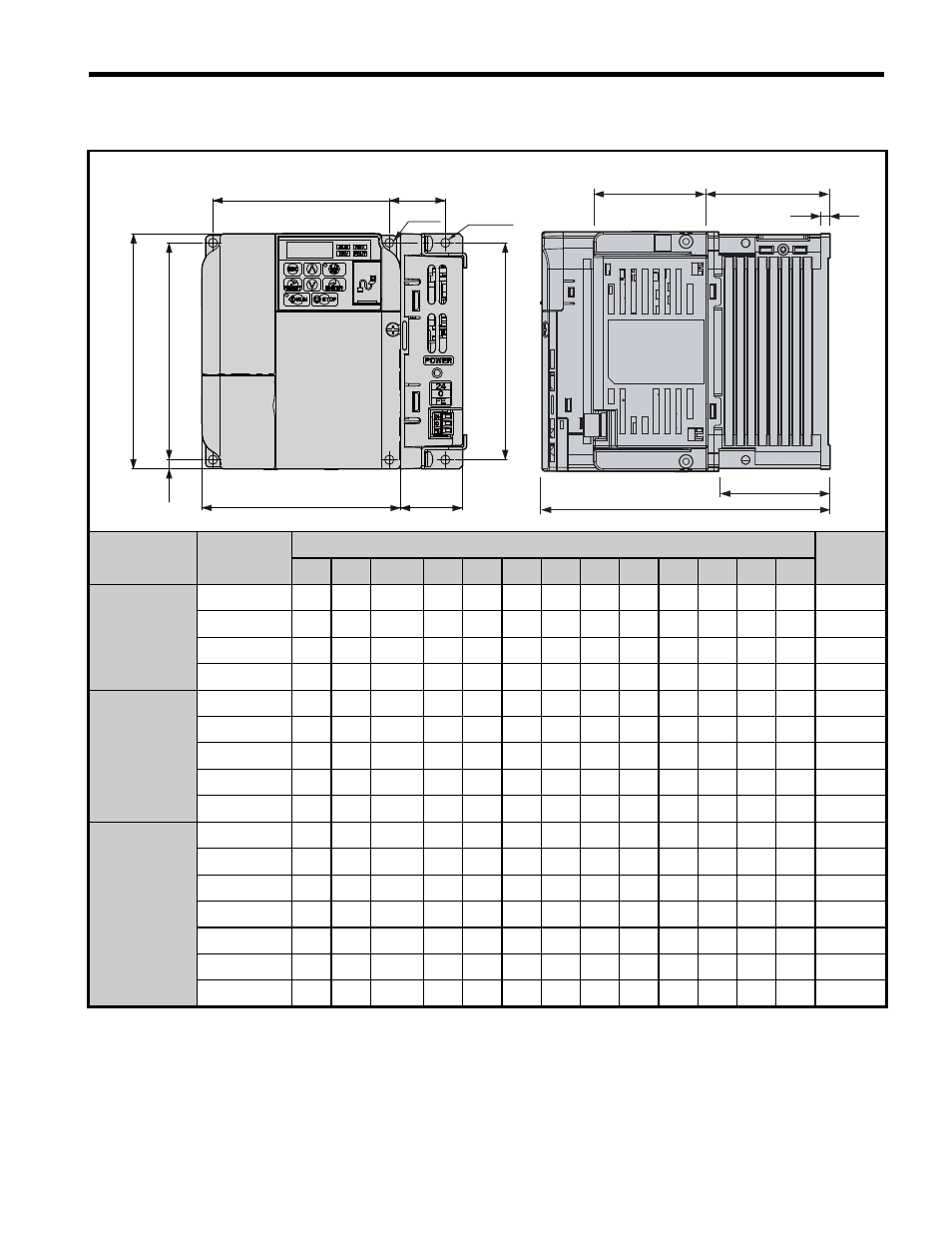

D2 D3
t1
D
D1
H1
H2
H
W W2
W1 W3
4-M4 2-M4
H3
