Motherboard Information
Chapter 3
Network Application Platforms
Chapter 3:
Motherboard Information
Block Diagram

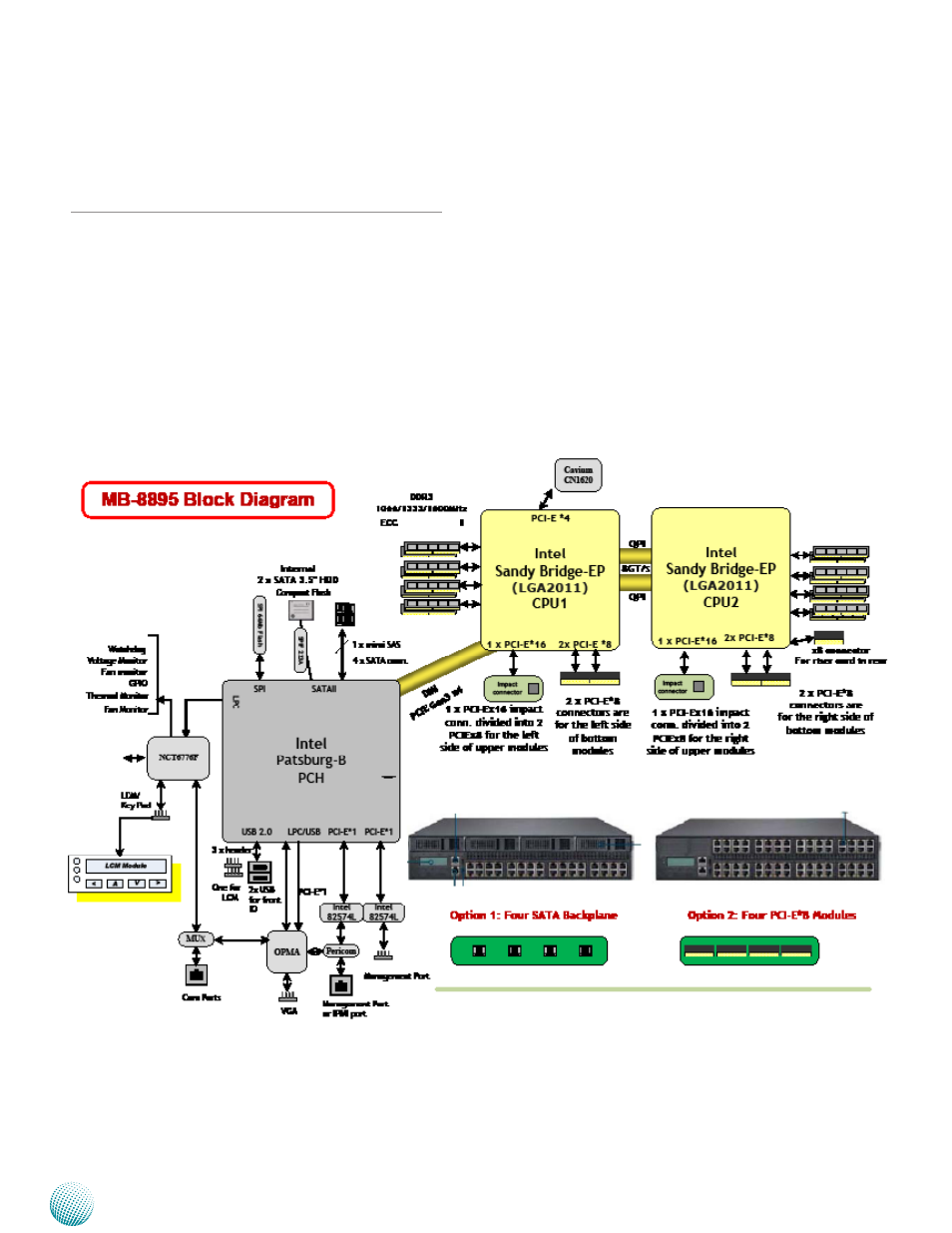

The block diagram depicts the relationships among the
interfaces or modules on the motherboard. Please refer
to the following figure for your motherboard’s layout
design.
