MSO4000/DS4000 Quick Guide
8
Front
Panel
Overview

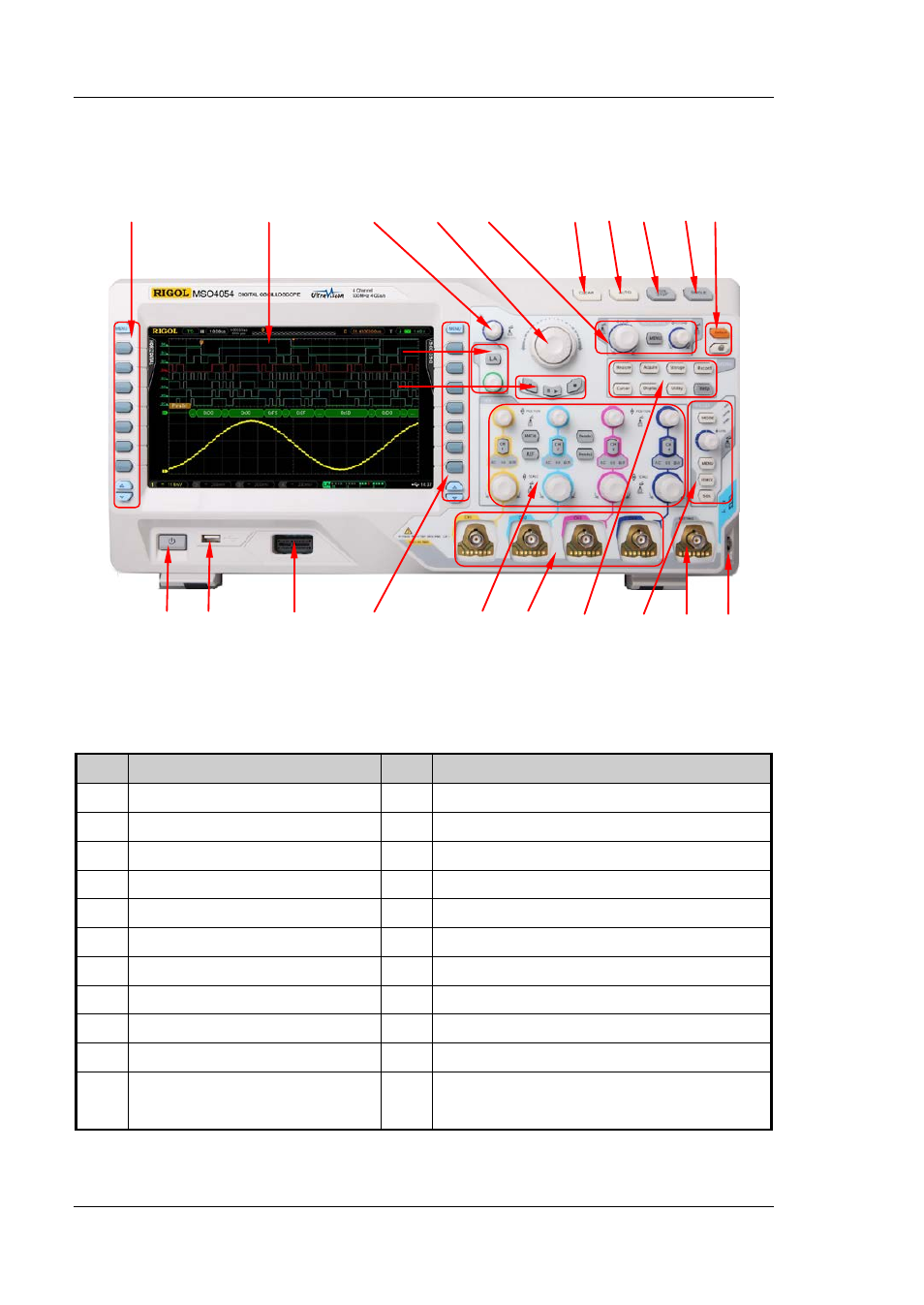

Figure 11 Front Panel Overview
Table 1 Front Panel Description
No. Description
No. Description
1
Menu
12
Record
2
LCD
13
Power Key
3
Knob
14
USB HOST
4
Navigation Knob
15
Digital Channel Input Terminal
5
HORIZONTAL
16
Function Setting Menu Softkeys
6
CLEAR
17
VERTICAL
7
AUTO
18
Analog Channel Input Terminals
8
RUN/STOP
19
Function Menu Keys
9
SINGLE
20
TRIGGER
10
Default&Print
21
EXT TRIG Input Terminal
11
LOGIC ANALYZER
22
Probe Compensation Signal Output
Terminal/Ground Terminal
12
13 14 15 16 17 18 19 20 21 22
3 4 5
6 7 8 9 10
1 2
