Front Panel Function Overview
VERTICAL

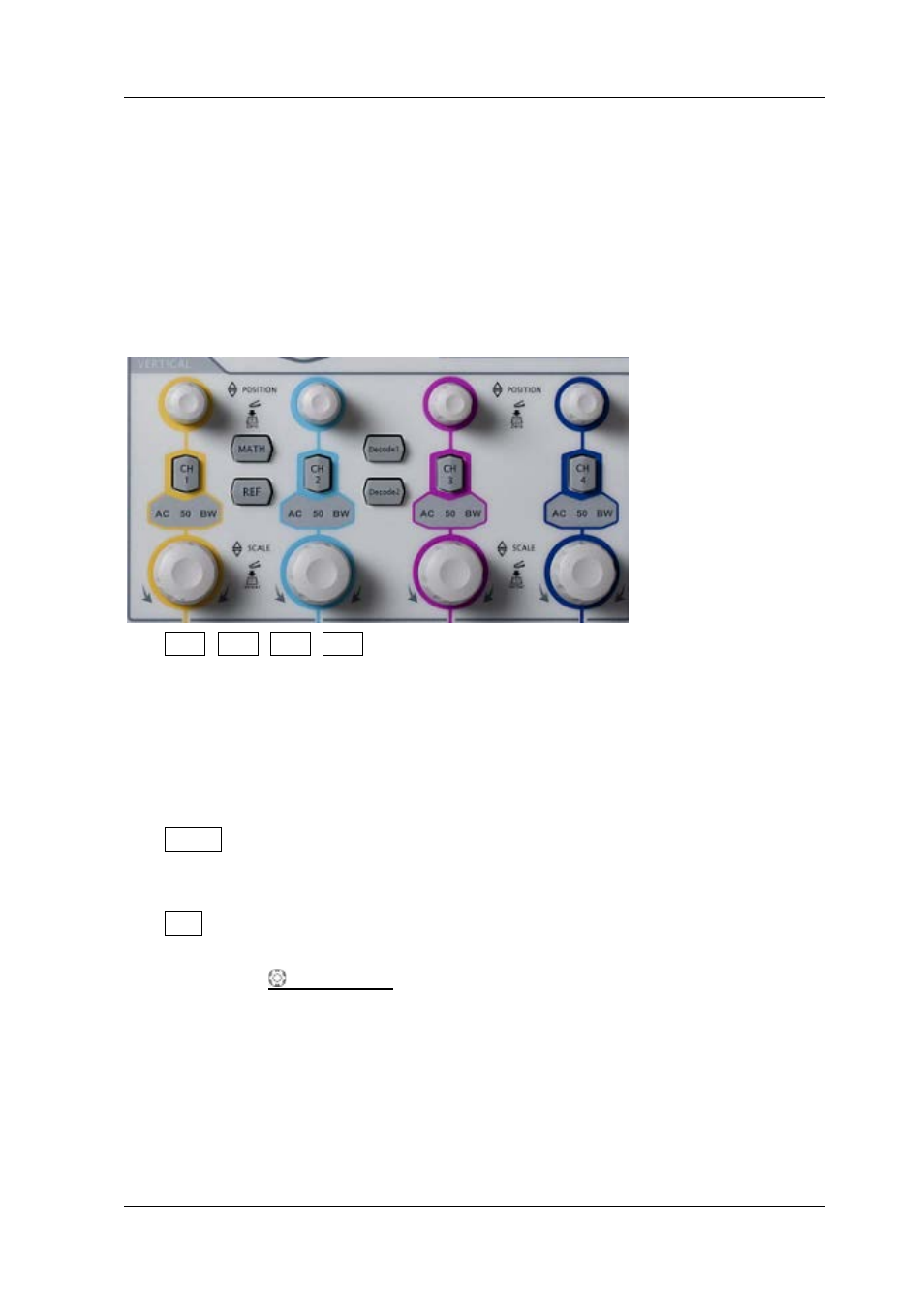

MSO4000/DS4000 provides independent vertical control systems for the four analog
input channels.
 CH1, CH2, CH3, CH4: analog input channels. The four channels are marked
by different colors which are also used to mark both the corresponding
waveforms on the screen and the channel input connectors. Press any key to
open the corresponding channel menu and press again to turn off the channel.
AC: illuminated when AC channel coupling mode is enabled.
50: illuminated when the channel input impedance is 50 Ω.
BW: illuminated when bandwidth limit is enabled.
 MATH: press this key to open the math operation menu under which add,
subtract, multiply, divide operations, FFT operation, logic operation and
advanced operation are provided.
 REF: press this key to enable the reference waveform function to compare the
waveform actually tested with the reference waveform.
 VERTICAL POSITION: vertical position knobs. During the modification,
the position label at the lower left corner of the screen would change accordingly.
Turn clockwise to increase the position and counterclockwise to decrease. Press
down the knob to quickly reset the vertical position to zero.
 VERTICAL SCALE: vertical scale knobs. During the modification, the scale
label at the bottom of the screen would change accordingly. Turn clockwise to
decrease the scale with a step of 5-2-1 and turn counterclockwise to increase
